Description:

The DLM-2100 push lawn mower, powered by the eFORCE® 56V battery system, delivers hassle-free mowing with legendary ECHO power. With an auto-switch dual-battery dock, three quick-switch clippings discharge settings and a large 21 in. cutting deck, it makes cuts without compromise.

Features:

• Large 21 in. heavy-duty steel deck cuts more area faster
• 3-in-1 discharge for mulching, bagging or side discharge (sold separately)
• Auto switch battery for less downtime

Specifications:

Battery

• Voltage: 56V
• Motor: Brushless
• Battery Capacity: 5.0Ah
• Energy Capacity: 252 Watt Hours
• Run Time 1: Up to 70 Minutes

Charging

• Standard Charger Recharge Time: 150 minutes
• Rapid Charger Recharge Time: 75 minutes
• Chargers Available: Standard & Rapid Chargers

Cutting

• Cutting Height Range: 1-4 inches

Warranty

• Tool Warranty: 5 years for consumer use / 2 years for commercial use
• Battery Warranty: 2 years for consumer use / 2 years for commercial use

Width	Weight	Height	Length
	48 Pounds		0 Inch

Description:

21" Walk Behind Mower, Push

Features:

• Push type
• 3 in 1 with Clip Director® - mulch, bag, and discharge
• Honda GCV170 engine with Auto Choke System
• Superior Mulching and Bagging: The HRN mowers offer superior cut quality whether you're mulching or bagging, even in tough mowing conditions.
• 3 in 1 system with Clip Director®: Simply slide the Clip Director for mulching, bagging, or discharging versatility. No attachments required.
• MicroCut® Twin Blades System: Stacked and offset twin blade design provides superior cut quality and smaller clippings for better mulching and bagging.
• Honda GCV170 Engine: Reliable, easy starting power to tackle the toughest mowing conditions.
• Honda Auto Choke™ System - easy starting: No engine choke required! Just start the mower and go!
• Easy Fold Quick Release handle for easy height adjustment and storage: Easily adjust the handle to 2 comfortable mowing positions, or fold over for storage.
• Improved Maneuverability: 2-Way Ratchet System improves maneuverability and reduces effort to turn in a tight radius, drastically reducing pull-back force
• Dual-Lever Height Adjustment System: User-friendly levers conveniently adjust to 7 cutting heights (1" to 4")
• Heavy-Duty 21" Steel Deck: Innovative Honda design optimizes air flow for superior mulching and bagging
• Easy Maintenance: Smart Engine Layout offers a large fuel tank spout, easy oil changes, and easy access to spark plug and air filter.
• 8" High Traction Wheels: Excellent traction in a variety of mowing conditions.
• Large easy off 1.9 bushel grass bag: Our large capacity grass bags are balanced so they are easy to empty, saving you time and effort.
• Flywheel brake safety system: Quickly stops the engine when you let go of the flywheel brake lever.
• Manual fuel shut-off valve: The fuel valve can be shut off for transport, storage, or to performance maintenance.
• 3 year residential warranty: You can rest easy, knowing your lawn mower is covered from top to bottom for 3 full years.
• 90 day commercial warranty

SPECIFICATIONS:

• Engine: GCV170
• Deck Material: Steel, 16 ga
• Cutting Width: 21 in.
• Mowing height range: 1 in.-4 in.
• Mowing height adjustments: 7
• Drive Control: N/A
• Transmission: N/A
• Ground speed: N/A
• Starter: Recoil
• Choke System: Automatic
• Drive: N/A
• Handle: 1 in. Steel Tube
• Handle Height Positions: 2
• Wheels: 8 in. Plastic
• Ball Bearing Wheels: Sintered metal bushing - Rear only
• Standard Functions: 3 in 1: Mulch, Bag, Discharge
• Bag: Standard
• Bag capacity (bushels): 1.9
• Blade(s): Twin blades (MicroCut System®)
• Blade Control: Flywheel brake
• Side/Rear Discharge: Rear standard
• Dry weight: 73 lb.
• Operating Weight: 76 lb.
• Residential warranty: 3 years
• Commercial warranty: 90 days
• CA Compliant: Yes

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

The Raptor XDX is at the top of the residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and toolless removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck allows the XDX to mow through thick grass at top speeds. The heavy-duty XDX is backed by an industry leading 3yr / 300hr warranty and 1yr / 300hr commercial warranty.

 Key Features

• 21.5hp, 23hp & 24hp Kawasaki Engines
• 48", 54" & 60” decks
• 8mph mowing speed
• 3-year / 300 hour limited warranty
•  Commercial Grade Deck
• Heavy-duty 11 gauge steel and front bull nose bumper design for unmatched durability. Up to 60” deck sizes available.
•  Extra High-back Seat
• A premium extra high-back seat with armrests.
•  22" BigBite™ Tires
• More aggressive tire to handle tough jobs.

Features:

• Welded Steel Deck: Fabricated from welded steel, enhancing durability and extending the mower's lifespan.
• Wider Stance: Designed to offer ample room, contributing to operator comfort during operation.
• SmoothTrak Steering: Precision control system enabling effortless trimming and maneuvering around obstacles.
• Bolstered Seat: Provides a comfortable ride with armrests and airflow to the back, ensuring operator comfort.
• Rubber Floor Mat: Standard on all Raptor models, minimizes vibration on the operator's feet, enhancing comfort during prolonged use.
• Fabricated Frame: Features a continuous one-piece 1½ inch by 3 inch welded tubular frame for structural integrity and robustness.
• Foot-Operated Deck Lift: Easily adjust the deck height between 1.5" - 4.5" with foot operation, facilitating customization during mowing.
• Easy to Service: Maintenance is simplified with features like the flip-up seat pan, removable floor pan, and vented pulley covers, ensuring easy access for servicing.
• Exclusive BigBite Rear Tires: Developed in collaboration with the tire manufacturer, offering enhanced traction and performance.
• Kawasaki® Power: Equipped with a V-Twin Kawasaki® Engine, providing reliable power for efficient operation.

Specification:

• Cutting Width: 60"
• Engine: Kawasaki FR730
• Engine Horsepower: 24 HP
• Transmission: Hydro-Gear ZT-3100® Dual Hydrostatic
• Fuel Capacity: 3 gallons
• Ground Speed (FWD): Up to 8 mph
• Cutting Height: 1.5" to 4.5"
• Front Tire Size: 13 x 6.5 inches
• Drive Tire Size: 22 x 11-10 BigBite™
• Warranty: 3 Year Warranty (Residential) or 1 Year Warranty (Commercial), 300 hour limit

Engine Details:

• Displacement: 726cc
• Cooling: Air Cooled
• Warranty: 3 Year Limited

Transmission Details:

• Type: Dual Hydrostatic
• Technology: Hydro-Gear ZT-3100®
• Warranty: 3 Year Limited

Additional Features:

• Steering: Integrated with steering levers
• Cutting Width: 60"
• Seat: Bolstered extra high-back seat with armrests and built-in lumbar support
• Front Tire Size: 13 x 6.5 inches
• Drive Tire Size: 22 x 11-10 BigBite™
• Weight: 710 lbs
• Height: 43.7 inches
• Length: 71.1 inches
• Width w/ Chute Up: 62.2 inches
• Tire-to-Tire Width: 48.6 inches
• Productivity (Acres per Hour): 3.88

Warranty:

• Residential: 3 Year/300 hour
• Commercial: 1 Year/300 hour

Bagging Systems:

• 60" Model: Powered 2-bag, 7.2 bushel capacity
• Dimensions: 92.3" (Width) x 69.2" (Height)

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.

Specifications:

GENERAL

• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20″ x 10″-10″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with arm rests, adjustment forward and back (tools required)

DRIVE SYSTEM

• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump - 10 cc
• Motors: Internal Motor - 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever

DECK

• Cutting Widths: Available in 48″ and 52″
• Type: Hero Cutter Deck
• Cutting Height: Adjustable from 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb) Adjustable air-gap for extended life.

Product Dimensions

• 48″ Freedom Z
• Length: 73″
• Width (chute down): 60.5″
• Width (chute in transport position): 49″
• Height: 60″
• Weight: 745 lbs
• 52″ Freedom Z
• Length: 73″
• Width (chute down): 64.5″
• Width (chute in transport position): 53″
• Height: 60″
• Weight: 765 lbs

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

True Commercial-Grade. Incredible Value. This impressive zero-turn rider is designed with the needs of lawn care pros in mind. Delivering commercial-grade results at an incredible value, the Patriot will exceed your expectations and have your “competition” talking. The Patriot is equipped with a productive 52” or 61” cutter deck to leave behind a beautiful quality-of-cut. Its strong hydro drive system brings the power and keeps you moving at ground speeds of up to 10 mph (SPZ61), while large front caster tires and extra-large drive tires provide dependable traction, stability and a smooth ride. A new ultra-plush bolstered seat, large diameter steering handles, and rubber iso-mounted foot plate give the operator a comfortable ride. The Hydro-Gear ZT-3400 (61”) or ZT-3100 (52”) hydro transaxles deliver smooth drive power and have spin-on oil filters for easy maintenance. Two independent hydraulic transaxle units with charge pumps and all metal gears. A dual purpose foot pedal brake is standard equipment and makes parking easier than ever before. The Patriot 52" and 61" will handle your toughest commercial jobs and large estate properties with ease and comfort. All of that and it leaves behind a beautiful quality-of-cut your competition and neighbors will be jealous of. We invite you to learn more about the outstanding features of the Patriot and how it can save you time while delivering professional results. Contact your local Scag dealer today and see for yourself how the Scag Patriot stands in a class by itself, above the competition. Check out our social media page and our testimonials page to see what real Scag customers are saying about their Scag mowers.

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

The envy of the neighborhood - 52", 61" or 72" Cutting Width: The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag's ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing. Heavy-Duty, Double-Tube Steel Main Frame - Solid Design for Years of Dependable Service: The Turf Tiger™ is ultra-strong and built for long life. It has a wide mower stance and extra-low center of gravity for ultimate stability and a replaceable front caster-wheel weldment. Powerful and Efficient Engine Options - Huge Power, Up To 40 HP: Choose from a Kawasaki®, or Briggs Vanguard™ engine; air-cooled or liquid-cooled; electronic fuel injection (EFI) or digital fuel injection (DFI) options. Diesel (Kubota) and propane (Kohler) options are also available.

Width	Weight	Height	Length
0 Inch	1600 Pounds	0 Inch	0 Inch

Description:

61" Velocity Plus™ Cutter Deck, 40 HP Briggs Vanguard™ BIG BLOCK™ EFI - electronic fuel injection

FEATURES

• The envy of the neighborhood - 48", 52" or 61" Cutting Width: The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48", 52" and 61" widths. An Advantage Cutter Deck is featured on 32" and 36" widths.
• Adjustable Operator Platform - Experience an Unmatched, Ultra-Comfortable Ride: The spacious operator platform delivers a smooth ride and reduces operator fatigue. Adjustable suspension spring can be moved forward or backward, with, or without, the spacer plate installed to meet the operator's comfort preference. Extra-large, extra-thick operator comfort cushion ensures comfortable operation, hour after hour.
• Cutter-Deck Lift System - Convenient, Spring-Assisted Lever: Cutter deck can be lifted and locked into transport position from the operator's station. Cutting heights are easily set by placing the tethered pin at the desired height.
• Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
• Ease of Maintenance - More Uptime: Easy-to-remove covers, an unrestricted engine compartment, easy-to-reach grease Zerks and many more features make servicing the V-Ride™ II simple, so you can be in the shop less and on the job more.

SPECIFICATIONS

• Description: 61" Velocity Plus™ Cutter Deck, 40 HP Briggs Vanguard™ BIG BLOCK™ EFI - electronic fuel injection
• Total Fuel Capacity: 5 gallons (32"); 6.75 gallons (36"); 8 gallons (48", 52", and 61")
• Drive Tires: 20" x 6.5"-10" (32"); 20" x 8"-10" (36"); 24" x 9.5"-12" (48" and 52"); 24" x 12"-12" (61")
• Caster Tires: 11" x 4"-5" (32" and 36"); 13" x 5"-6" (48" and 52"); 13" x 6.5"-6" (61")
• Seat: Extra-large comfort cushion
• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 10 cc (32" and 36"); Hydro-Gear 12 cc (48", 52", and 61")
• Motors: Parker 12 ci (32" and 36"); Parker 14 ci (48", 52" and 61")
• Forward Ground Speed: 8.5 mph (32" and 36"); 10.5 mph (48", 52" and 61")
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 32", 36", 48", 52" and 61"
• Type: Advantage (32" and 36"); Velocity Plus™ (48", 52", and 61")
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Hand lever
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.; 32" model features dual-plate.
• Spindles: Cast-iron housing with tapered roller bearings.
• Blade Engagement: Ogura GT2.5 (150 ft lb) - (32", 36", 48" and 52"); Ogura GT3.5 (250 ft lb) - (61"); Adjustable air-gap for extended life.

DIMENSIONS

• Length: 72.75"
• Tracking Width: 48"
• Width (chute down): 73.5"
• Width (chute in transport position): 62.75"
• Height: 47.25"
• Weight: 1,127-1,173 lb

ACCESSORIES

• 2-Bag V-Ride II Spindle Driven Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Hurricane Plus™ Mulch System
• Mulch Plate
• OCDC - Operator-Controlled Discharge Chute
• Light Kit
• Chrome Wheel Covers
• Air Filter Monitor
• Blade Buddy
• 12-Volt Accessory Outlet

Width	Weight	Height	Length
0 Inch	0 Gram	0 Inch	0 Inch

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Features:

• TRI-PLATE DECK TOPS:
• Super-rigid Tri-Plate deck construction results in a nearly 1/2" thick (0.485") steel cutter deck top (most zero-turn rider models).
• FRONT BAFFLE CHAMBER:
• Special front baffle chamber allows the grass to be lifted up before the blade cuts it. No stragglers.
• WEAR PAD:
• Replaceable trim-side wear pad protects the deck and landscaping from scraping and impact damage.

Specifications:

Fuel Capacity

• Total Fuel Capacity: 9.5 gallons

Tires

• Drive Tires:
• 24" x 9.5"-12" (for 48" and 52" cutting widths)
• 24" x 12"-12" (for 61" cutting width)
• Caster Tires: 13" x 6.5"-6", flat-free

Seat

• Type: 4-point iso-mounted mid-back
• Mounting: Mounted on operator-suspension platform

Drive System

• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14.5 ci
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck

• Cutting Widths: 48", 52", and 61"
• Type: Velocity Plus™
• Cutting Height: 1" to 5" in 0.25" increments
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel, with reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura GT3.5 (250 ft lb), adjustable air-gap for extended life

Width	Weight	Height	Length
0 Inch	1180 Pounds	0 Inch	0 Inch

Description:

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

SOLID, FORGED ROTOR:

A one-piece, solid, forged rotor means no chance of internal parts separating. The rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.

HIGH-TEMPERATURE, LONG-LIFE GREASE:

All models include our special long-life grease which has shown a significant improvement in life over other standard high-temperature greases.

ADJUSTABLE AIR GAP:

When the rotor and armature have worn away, a simple adjustment can be made to bring the clutch back into specification.

Specifications:

Total Fuel Capacity

• 36" and 42" Models: 3.5 gallons
• 48", 52", and 61" Models: 5.5 gallons

Drive Tires

• 36" Model: 20" x 8"-10"
• 42", 48", and 52" Models: 20" x 10"-8"
• 61" Model: 20" x 10"-10"

Caster Tires

• 36" and 42" Models: 11" x 4"-5"
• 48", 52", and 61" Models: 11" x 6"-5"

Seat

• 48", 52", and 61" Models: Padded with arm rests, adjustment forward and back (tools required)
• 36" and 42" Models: Optional armrest kit is available

Drive System

Drive System Type

• 36" and 42" Models: Hydro-Gear ZT-2800 Transaxle
• 48" and 52" Models: Tuff Torq TZ450 Transaxle
• 61" Models: Hydro-Gear ZT3100 Transaxle

Pumps

• Internal Pump: 10 cc

Motors

• Internal Motor: 10cc (Tuff Torq)
• Internal Motor: 16 cc (Hydro-Gear)

Forward Ground Speed

• 7 mph

Reverse Ground Speed

• 5 mph

Parking Brake

• Hand lever

Deck

Cutting Widths

• 36", 42", 48", 52", and 61"

Type

• Heavy-Duty Hero Cutter Deck

Cutting Height

• 1.5" to 4.5" in .25" increments

Deck Lift

• Foot-operated pedal

Construction

• Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.

Spindles

• Aluminum housing with sealed ball bearings

Blade Engagement

• Ogura GT1 (74 ft lb) – (36", 42", 48", and 52" Models)
• Ogura GT2 (108 ft lb) – (61" Model)
• Adjustable air-gap for extended life

Width	Weight	Height	Length
0 Inch	595 Pounds	0 Inch	0 Inch

Description:

Take on any task with the Z Master® 2000 zero-turn mower. Constructed for professional use with a 7 gauge steel TURBO FORCE® cutting deck for fast, clean work. Plus, with a high-back suspension comfort seat you'll enjoy the ride, too.

Features:

• TURBO FORCE® Cutting Deck - Built to last. Enjoy years of reliable performance with an upgraded 7-gauge steel, 5.5" deep deck.
• Low-Back Suspension Seat - Stay comfortable on the job with the premium low-back shock absorbing suspension seat.
• 24" Voodoo Trac™ Drive Tires - Get the ultimate in aggressive tread and styling with 24" Voodoo Trac™ Drive Tires.
• Customize your ride with optional lights, bucket holder, trimmer mount, baggers, mounts, and up to 20 attachments.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Product Type: Zero Turn Mower
• Product Use: Commercial
• Fuel Type: Gasoline
• Engine Brand: Toro
• Engine: 24.5 hp* Toro V-Twin 708cc w/ Heavy-Duty Air Cleaner
• Engine Horsepower: 24.5 hp
• Engine Displacement: 708 cc
• Start Type: Electric
• Ignition: Electric

Cutting System

• Deck Size: 52 in / 132 cm
• Deck Design: 7-Gauge High-Strength Steel TURBO FORCE®, 5.5” (14 cm) depth, with bull-nose bumper
• Discharge Chute: Rubber
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.25 in (0.64 cm) increments
• Foot Operated Height of Cut: Standard
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Anti-Scalp Wheels: Standard

Drive & Transmission

• Transmission: Hydro-Gear ZT-3400
• Drive Tires: Voodoo Trac 24 in. x 9.5 in. - 12 in. (61 cm x 24.1 cm - 30.5 cm)
• Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic
• Forward Ground/Transport Speed: Up to 10.0 mph / 16.0 kph

Frame & Build

• Frame Notes: Tool mounting capability (Side Console / Rear Guard Ready)
• Deck Material: 7-Gauge Steel
• Spindle Housing: 8 in / 20.3 cm Aluminum, Non-Greasable Ball Bearing, 1 in / 2.5 cm Shaft
• Clutch: Electromagnetic
• Hitch Bracket: Integrated Receiver Hitch - 2 in. x 2 in.; 80 lbs. max tongue, 250 lbs. max tow

Comfort & Controls

• Seat: Deluxe Suspension Seat
• Steering Controls: 1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened
• ROPS: Folding; Standard
• Hour Meter: Standard
• Lighting: LED Headlights

Dimensions & Weight

• Fuel Capacity: 7 gal. / 26.5 L / 28 Qt.
• Box Dimensions: 91 in. x 63 in. x 52.5 in. / 231.1 cm x 160 cm x 133.4 cm
• Weight: 1,014 lbs / 459.9 kg

Width	Weight	Height	Length
0 Inch	1014 Pounds	0 Inch	0 Inch

Description:

Take on any task with the Z Master® 2000 zero-turn mower. Constructed for professional use with a 7 gauge steel TURBO FORCE® cutting deck for fast, clean work. With the customizable MyRIDE Suspension System to isolate bumps and vibrations, you'll stay comfortable even on the longest days.

Features:

• TURBO FORCE® Cutting Deck - Built to last. Enjoy years of reliable performance with an upgraded 7-gauge steel, 5.5" deep deck.
• MyRIDE® Suspension System - Save your body from the toughest terrain with the MyRIDE Suspension System featuring up to 3 inches of travel.
• 24" Voodoo Trac™ Drive Tires - Get the ultimate in aggressive tread and styling with 24" Voodoo Trac™ Drive Tires.
• Get commercial-grade performance with a 23.5 hp* Kawasaki® FX engine.
• Customize your ride with optional lights, bucket holder, trimmer mount, baggers, mounts, and up to 20 attachments.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

Blade and Cutting

• Blade tip speed: 18,500 ft/min (5,638 m/min)
• Deck depth: 5.5 inches (14 cm)
• Deck size: 60 inches (152 cm)
• Height of cut: 1.5-5.0 inches (3.8-12.7 cm) in 0.25 inch (0.64 cm) increments

Chassis and Tires

• Box dimensions: 91 x 70 x 52.5 inches (231.1 x 177.8 x 133.4 cm)
• Caster tires: 13 x 6.5 inches - 6 inches (33 cm x 16.5 cm - 15.2 cm) pneumatic
• Drive tires: Voodoo Trac 24 x 9.5 inches - 12 inches (61 x 24.1 - 30.5 cm)

Engine and Transmission

• Engine brand: Kawasaki
• Engine displacement: 747 cc
• Engine horsepower: 23.5 hp
• Fuel type: Gasoline
• Fuel capacity: 7 gallons (26.5 L / 28 Qt.)
• Transmission: Hydro-Gear ZT-3400

Comfort and Safety

• MyRIDE suspension system
• Deluxe comfort seat
• Folding roll-over protection (ROPS) system

Other Features

• Anti-scalp wheels: Standard
• Hitch bracket: Integrated receiver hitch - 2 x 2 inches, max tongue weight 80 pounds (36.3 kg), max tow weight 250 pounds (113.4 kg)
• LED headlights
• Side console/rear guard ready for tool mounting
• Spindle housing: Aluminum, non-greasable ball bearing with a 1-inch shaft

Weight and Dimensions

• Weight: 1,135 pounds (514.8 kg)
• Dimensions (L x W x H): Not specified, but based on the box dimensions, the overall size of the mower is approximately 91 x 70 x 52.5 inches (231.1 x 177.8 x 133.4 cm)

Width	Weight	Height	Length
0 Inch	1135 Pounds	0 Inch	0 Inch

Description:

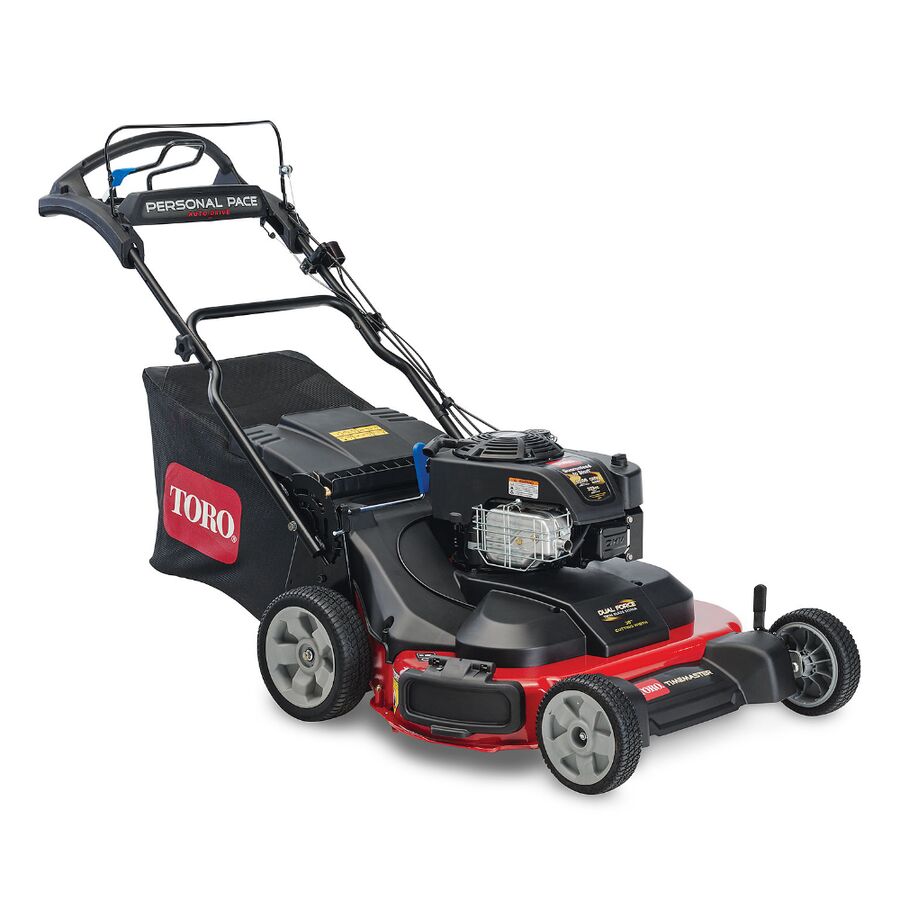

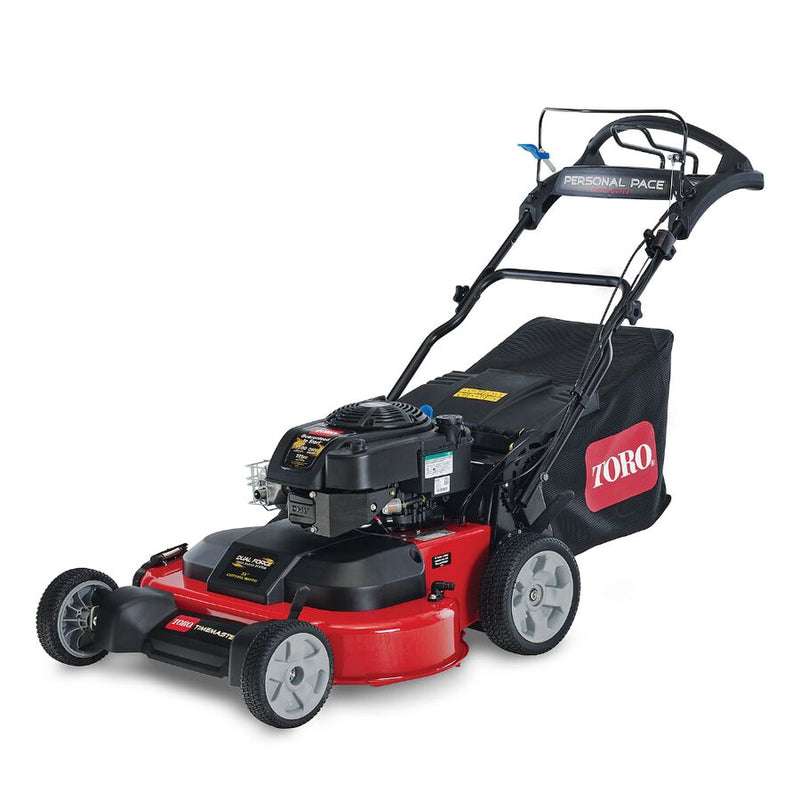

Get it done and get on with your weekend. When you have a big yard and a busy schedule, you need Toro’s TimeMaster® on your side. It cuts a wider path on every pass so you can finish mowing faster. With a powerful Briggs & Stratton® OHV engine on board, plus electric start for ultimate mowing ease, you’ll have the perfect tool that you need to have the best yard in the neighborhood.

Features:

• No pulling, just turn the key and you’re ready to mow with electric start.
• Great power and performance from the 10 ft.-lb. Gross Torque* Briggs & Stratton® 223cc OHV engine.
• Finish jobs faster with the 30" deck.
• Timed dual blades cut grass into a fine mulch for a superior quality of cut and a lush lawn.
• Mow at your own pace with Personal Pace Auto-Drive self-propel that adjusts to your walking speed.
• Quick Stow handle allows for easy, compact storage.
• Leave the mower without restarts with Spin-Stop™ Blade Stop.
• Easily adjust the deck height at 2 points to quickly customize your mowing height.
• Attach a hose to the washout port on the mower deck to easily clean the under side.
• Enjoy a 3-year guaranteed-to-start engine warranty and a 3-year limited warranty.**
• Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more

Specification:

• Air Filter: Briggs & Stratton Part #795066
• Blade Design: 0.135 in. / 0.343 cm Thick Steel
• Blade Engagement: Blade Brake Clutch (BBC)
• Box Dimensions: 41.75 in. x 33.0 in. x 24.5 in. / 106.04 cm x 83.82 cm x 62.23 cm
• CARB Compliant: CARB Compliant
• Deck Design: Recycler
• Deck Material: 13 Gauge Steel
• Deck Size: 30 in / 76 cm
• Discharge Chute: Included
• Drive System: Personal Pace® Rear Wheel Drive Traction Assist
• Drive Type: Rear-Wheel Drive
• Engine: 10.00 ft-lb Gross Torque* Briggs & Stratton 223 cc OHV
• Engine Brand: Briggs and Stratton
• Engine Displacement (cc): 223 cc
• Forward Ground/Transport Speed: Up to 4.5 mph / 7.2 kph
• Forward Mowing Speed: Up to 4.5 mph / 7.2 kph
• Frame: Cast-Aluminum Frame
• Fuel Capacity: 0.3 gal. / 1.1 L / 1.2 Qt.
• Fuel Type: Gasoline
• Guaranteed to Start Promise: 3-Year GTS
• Handle Type: Quick Stow Storage Handle
• Height of Cut: 1.25 - 4.25 in. / 3.2 - 10.8 cm
• Height of Cut Adjustment: 2-point
• Included in the Box: Grass Bag
• Mulch, Bag, Side Discharge: Bag standard
• Number of Blades: 2
• Product Features: Blade Stop System
• Product Use: Residential
• Recommended Oil Type: SAE 30
• Self Propel System: Personal Pace
• Spark Plug Type: Briggs & Stratton Part #692051 (Not Sold on toro.com)
• Start Type: Electric
• Transmission: Variable Speed
• Washout Port: Standard
• Weight: 150 lbs / 68 kg
• Wheel Height: Front 8 in. / 20.3 cm; Rear 10 in. / 25.4 cm
• Yard Size: Up to 1 acre

Width	Weight	Height	Length
0 Inch	150 Pounds	0 Inch	0 Inch

Description:

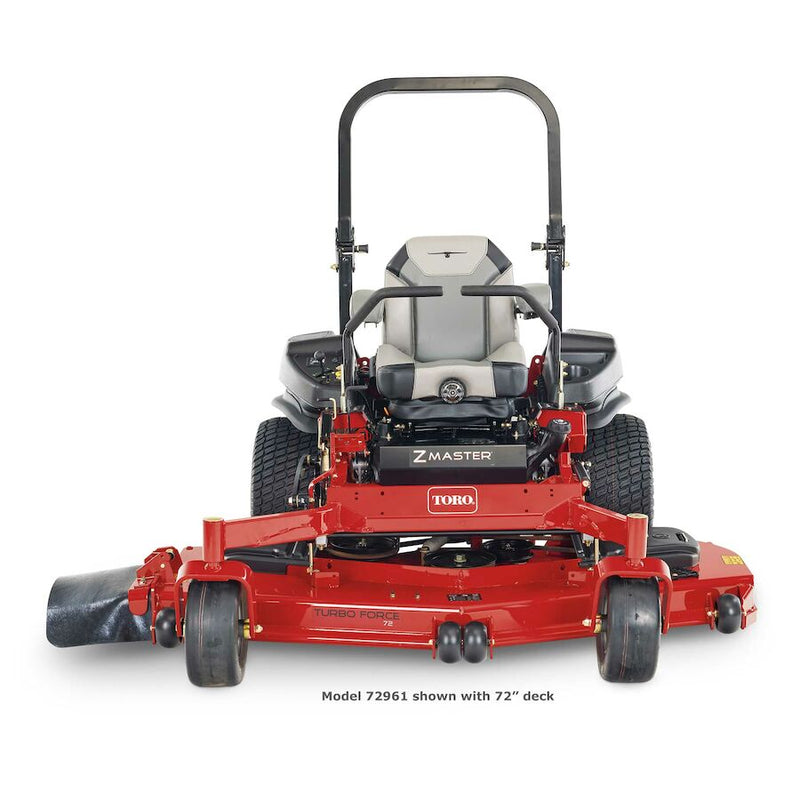

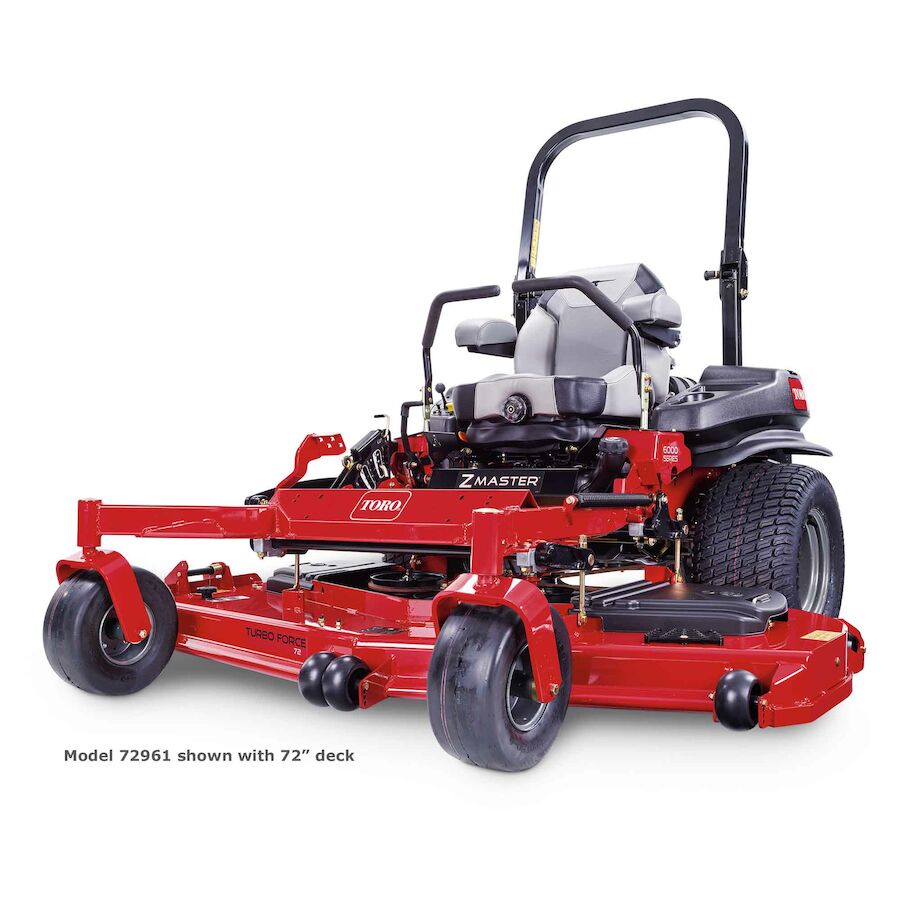

The Z Master 6000 Series is one of Toro’s most advanced zero-turning radius mowers. It’s also one of our most comfortable. This Z Master® 6000 Series mower has a 31 hp (23.12kW) Kawasaki® FX 999cc Engine with 60 in. (152 cm) TURBO FORCE® deck.

Features:

• Tweel Turf Tires - No air pressure to maintain, no flat tires, no compromises. Extra long wear life two to three times that of a pneumatic tire at equal tread depth.
• Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
• Deluxe suspension seat features thick cushions, large bolsters and 3-D isolator mounts that absorb bumps and vibrations to reduce operator fatigue, fully adjustable to match operator comfort
• Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Specification:

• Adjustable Discharge Baffle: Standard, Tools-Free
• Air Filter: Heavy-Duty Canister Air Cleaner
• Armrests: Standard
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Blades: 0.204 in. (0.5 cm) heat-treated steel
• Box Dimensions: 91 in. x 70 in. x 52 in. / 231.1 cm x 177.8 cm x 132.1 cm
• CARB Compliant: Not CARB Compliant
• Carrier Frame: 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
• Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
• Clutch: Electromagnetic
• Comfort Platform: Deluxe Suspension with 3-D Isolation Mounts
• Deck Design: 80-Grade 7-gauge 60" (152 cm) TURBO FORCE® w/bull-nose bumper
• Deck Material: 7 Gauge Steel
• Deck Size: 60 in / 152 cm
• Discharge Chute: Rubber
• Drive System: Unitized Pumps 16cc and Wheel Motors 17.1 cir
• Drive Tires: Airless radial 24" (60.96 cm) Michelin X Tweel Turf Tires
• Engine: 31 HP* Kawasaki® FX 999cc
• Engine Brand: Kawasaki
• Engine Displacement (cc): 999 cc
• Engine Horsepower: 31.0 hp
• Forward Ground/Transport Speed: Up to 11.5 mph / 18.5 kph
• Front Bumper: Reinforced Bull-Nose
• Fuel Capacity: 12 gal. / 45.4 L / 48 Qt.
• Fuel Type: Gasoline
• Height of Cut: 1.0 - 5.5 in. / 2.5 - 14.0 cm
• Hour Meter: Standard
• Hydraulic Fluid: Premium synthetic
• Product Features: Electric Start, Gas Powered, Hour Meter
• Product Type: Zero Turn Mowers
• Roll-Over Protection (ROPS): Folding; Standard
• Seat: Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
• Spindle Bearings: Maintenance-free
• Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum
• Start Type: Electric
• Steering Controls: 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened
• Steering Dampeners: Standard Dampers
• Weight: 1,297 lbs / 588.3 kg

Width	Weight	Height	Length
	1297 Pounds		0 Inch
