Description:

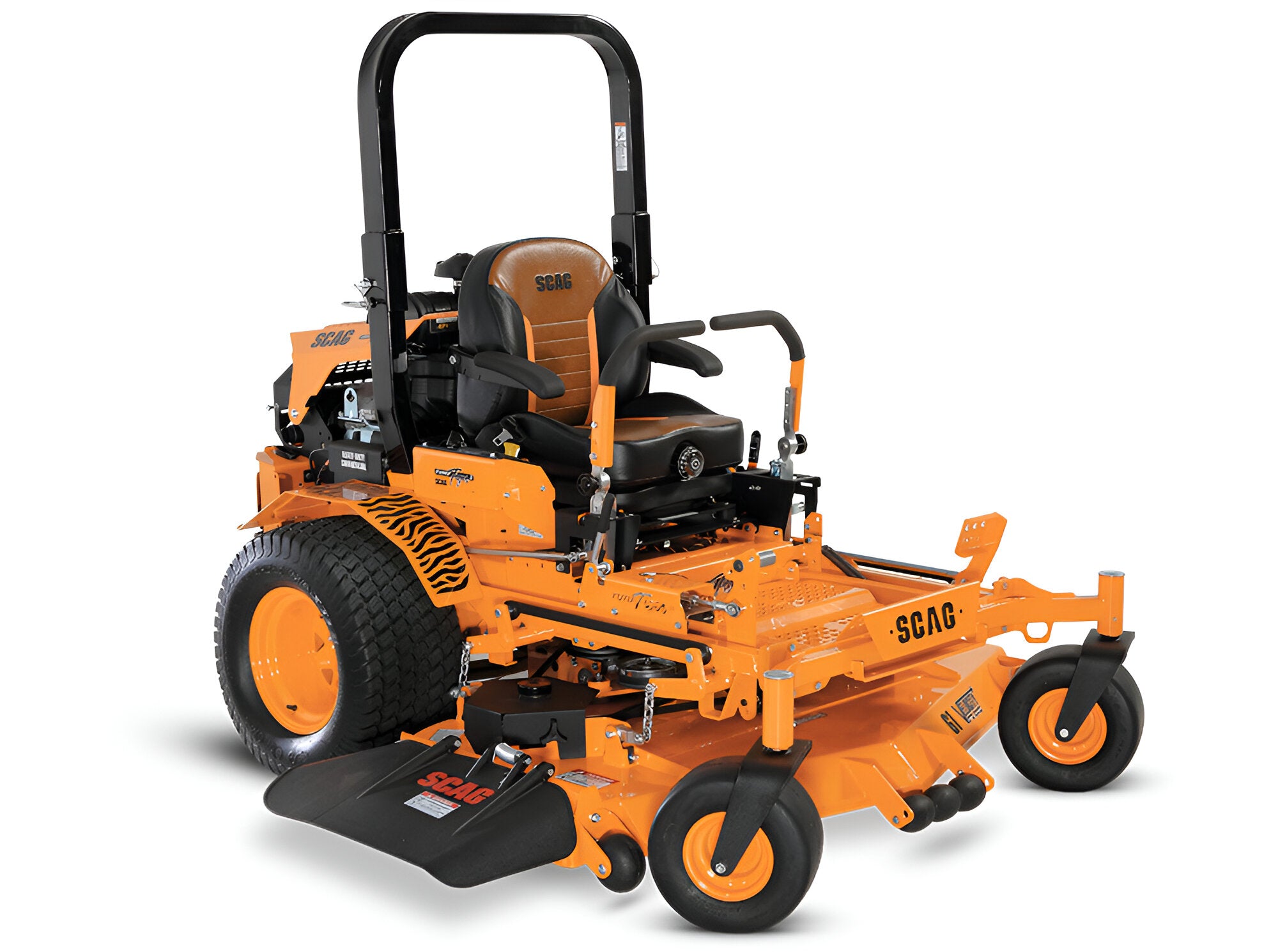

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

61" Cutting Width

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Engine

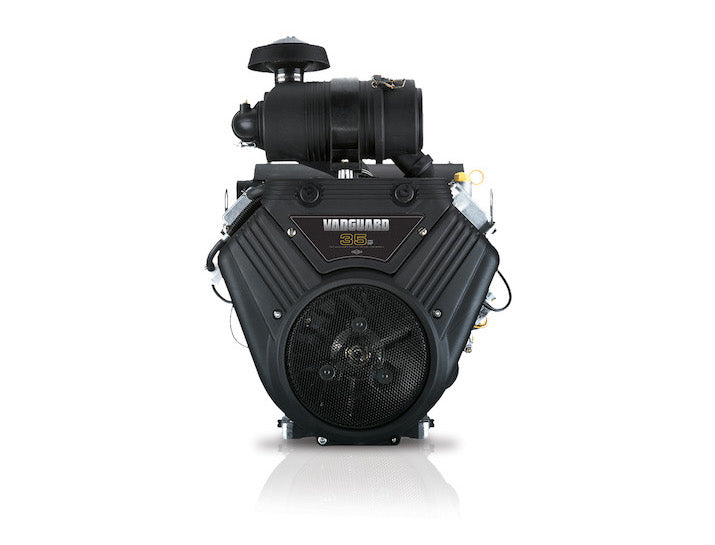

The Briggs & Stratton® Vanguard® BIG BLOCK™ engine found on select Scag® mower models is a proven performer with power and reliability. Features include:

• V-Twin OHV technology.
• Dura-Bore cast-iron cylinder sleeve.
• Full-pressure lubrication with spin-on oil filter.
• Oil cooler.
• Advanced debris management.
• Centrally located oil pump and pickup.
• Heavy-duty cylinder and sump.
• High-efficiency head design.
• Dynamically balanced crankshaft.
• Industrial-grade solenoid shift starter.

Specification:

Product Dimensions (61″ Tiger Cat):

• Length: 80″
• Width (chute down): 73.5″
• Width (chute in transport position): 62.75″
• Height (ROPS folded): 46.75″
• Height (ROPS up): 67.25″
• Weight: 1,257–1,277 lb

General:

• Total Fuel Capacity: 9.5 gallons
• Drive Tires: 24″ x 12″-12″
• Caster Tires: 13″ x 6.5″-6″, flat-free
• Seat: 4-point iso-mounted mid-back seat on operator-suspension platform

Drive System:

• Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14.5 ci
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck:

• Cutting Width: 61″
• Type: Velocity Plus™
• Cutting Height: 1″ to 5″ (adjustable in 0.25″ increments)
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck made of 3 steel plates totaling nearly 1/2″ thick, with reinforcement plates at cutter deck spindles
• Spindles: Cast-iron housing with tapered roller bearings.

Description:

The Scag® SFC-21 Finish-Cut Walk-Behind mower is the compact solution you've been searching for, offering impressive productivity and versatility within its 21" wide platform. Whether you're on the job or tending to your own lawn, the SFC-21 ensures professional-quality results with each pass, leaving behind a beautifully manicured lawn.

Equipped with 3-in-1 versatility, including mulching, bagging, and optional side discharge capabilities, this mower empowers you to handle various challenges with ease while achieving exceptional results.

Features:

Fine-Tuned and Simple:

• Easy height-of-cut adjustment: Allows for cutting heights ranging from 1.5" to 4.5" in 0.5" increments, providing flexibility to adapt to different grass lengths and preferences.

Description:

The Scag® SFC-21 Finish-Cut Walk-Behind mower is the compact machine you’ve always wanted—packing big productivity and versatility into a 21” wide platform. On the job or at home, the SFC-21 delivers a professional quality-of-cut that leaves behind a beautiful lawn, each and every time. Capable of 3-in-1 versatility (mulching, bagging and optional side discharging), it helps you tackle whatever challenges come your way with top-notch results.

Specifications:

• Engine: 7HP @ 3300 RPM, 4 cycle gas, OHV, air-cooled, single-cylinder, vertical shaft
• Transmission: GT MG 512 transmission, 3-speed
• Wheels/Tires: Drive: 10.5 x 3 / Front: 9 x 2.25
• Handle Bars: 1″ diameter, thick wall tubing, 3-position adjustable
• Safety Group: Handle actuated operator presence system
• Forward Speed: Up to 4.25 mph
• Cutting Width: 21 inches (53.34 cm)
• Cutting Height Adjustment: 1.5″ to 4.5″ in 0.5″ increments
• Cutter Blade: 0.1345 in. thick, milled edge, wear resistant

Description:

Welded and fabricated using military-grade steel for years of dependable performance, the SFC-30 Finish Cut Walk-Behind Mower is no pushover. Packing big productivity and versatility into a compact form, this commercial-grade machine delivers a beautiful, professional quality-of-cut, helping you put the finishing touches on the job or at home.

Description:

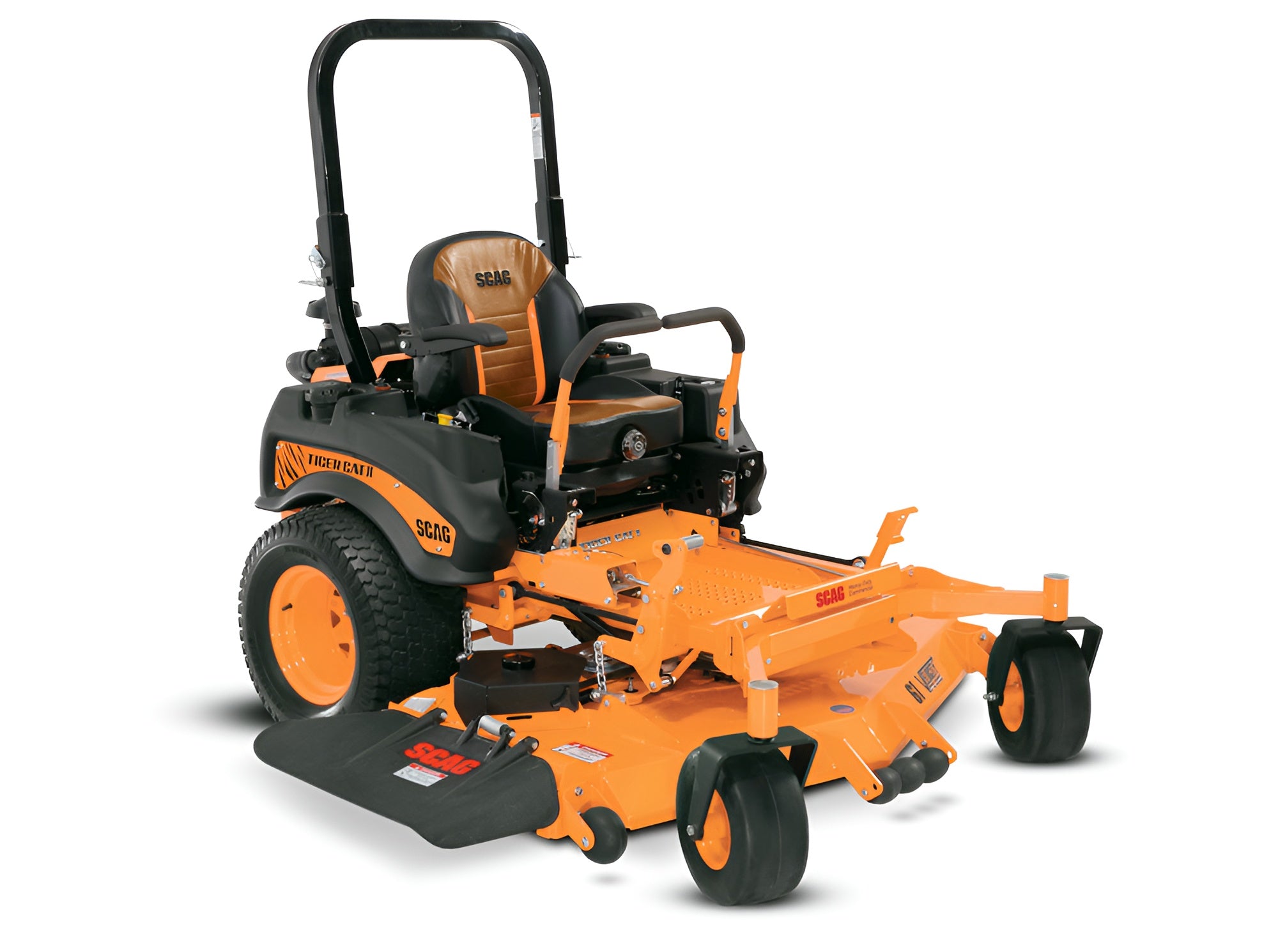

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Features:

• TRI-PLATE DECK TOPS:
• Super-rigid Tri-Plate deck construction results in a nearly 1/2" thick (0.485") steel cutter deck top (most zero-turn rider models).
• FRONT BAFFLE CHAMBER:
• Special front baffle chamber allows the grass to be lifted up before the blade cuts it. No stragglers.
• WEAR PAD:
• Replaceable trim-side wear pad protects the deck and landscaping from scraping and impact damage.

Specifications:

Fuel Capacity

• Total Fuel Capacity: 9.5 gallons

Tires

• Drive Tires:
• 24" x 9.5"-12" (for 48" and 52" cutting widths)
• 24" x 12"-12" (for 61" cutting width)
• Caster Tires: 13" x 6.5"-6", flat-free

Seat

• Type: 4-point iso-mounted mid-back
• Mounting: Mounted on operator-suspension platform

Drive System

• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14.5 ci
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck

• Cutting Widths: 48", 52", and 61"
• Type: Velocity Plus™
• Cutting Height: 1" to 5" in 0.25" increments
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel, with reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura GT3.5 (250 ft lb), adjustable air-gap for extended life

Description:

The Scag Turf Tiger II isn't just a mower, it's a statement of dominance. This zero-turn mower is designed for professional landscapers who need a machine that can handle anything nature throws at them.

Engineered to Conquer:

• Unmatched Durability: The Tri-Plate deck construction with a nearly half-inch thick steel top ensures the Turf Tiger II can withstand years of heavy use.
• Superior Productivity: Powerful Hydro-Gear drive systems and large cutting widths (52", 61", or 72") allow you to cover more ground in less time.
• Operator Comfort: The 4-point iso-mounted torsion-spring suspension seat keeps you comfortable throughout the workday.

Built to Last and Built to Perform:

• Engine Options: Choose from a variety of engine options, including gas, diesel, and LP, to find the perfect fit for your needs.
• Unmatched Cut Quality: The Velocity Plus™ Deck with a special front baffle chamber delivers a clean, professional cut, even at high mowing speeds.
• Easy Maintenance: Features like replaceable wear pads and easy-to-access grease points simplify maintenance.

Power and Control at Your Fingertips:

• Dual Pump and Motor Drive System: Delivers smooth operation and precise control for effortless maneuvering around obstacles.
• Adjustable Foot-operated Pedal Parking Brake with AUSCO Disc Brakes: Provides confident stopping power on any terrain.

The Scag Turf Tiger II is the ultimate zero-turn mower for professional landscapers who demand the best. It's a powerful, durable, and comfortable machine that will help you conquer even the toughest jobs and leave your competition in the dust.

Description:

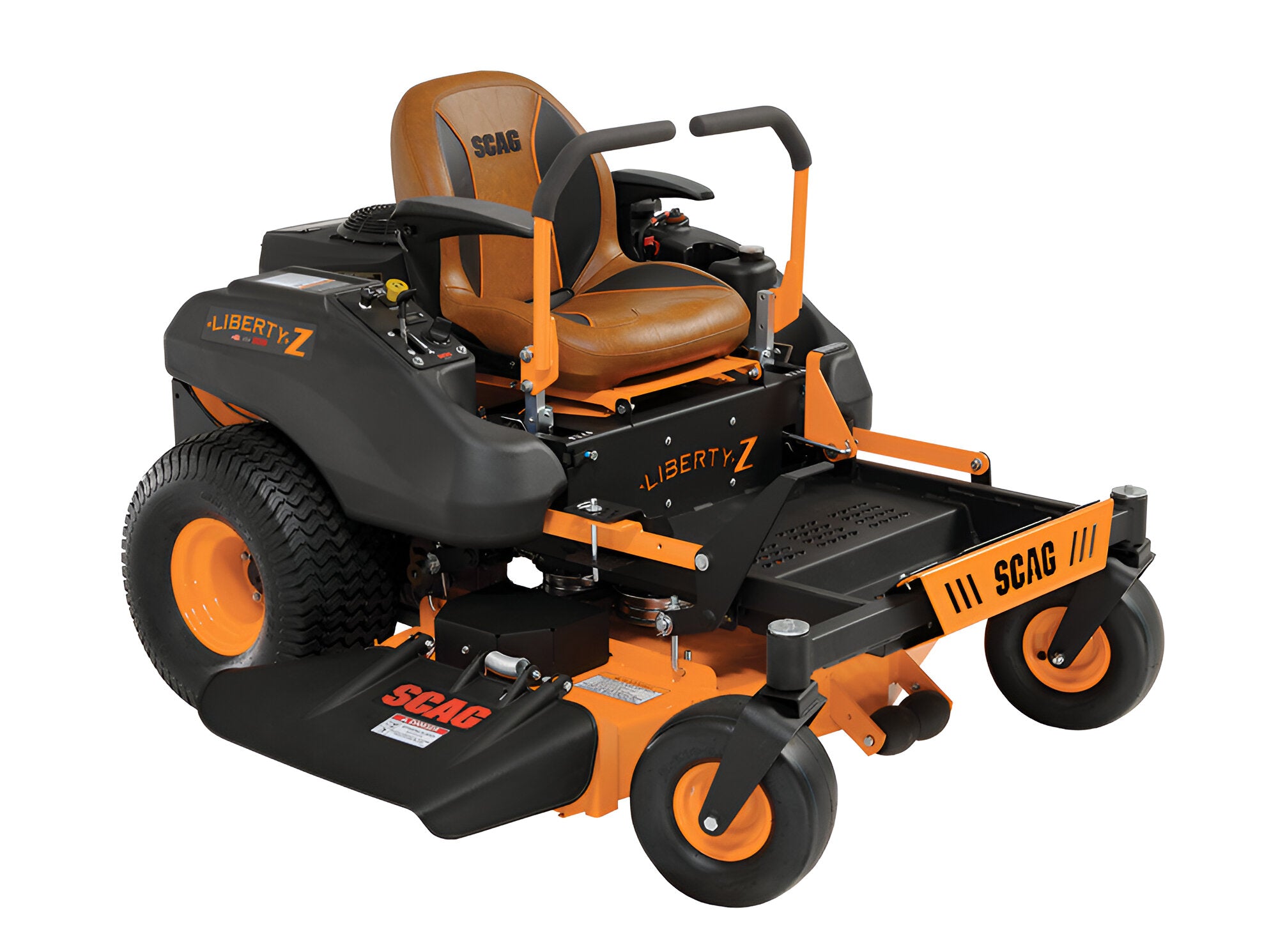

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

SOLID, FORGED ROTOR:

A one-piece, solid, forged rotor means no chance of internal parts separating. The rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.

HIGH-TEMPERATURE, LONG-LIFE GREASE:

All models include our special long-life grease which has shown a significant improvement in life over other standard high-temperature greases.

ADJUSTABLE AIR GAP:

When the rotor and armature have worn away, a simple adjustment can be made to bring the clutch back into specification.

Specifications:

Total Fuel Capacity

• 36" and 42" Models: 3.5 gallons
• 48", 52", and 61" Models: 5.5 gallons

Drive Tires

• 36" Model: 20" x 8"-10"
• 42", 48", and 52" Models: 20" x 10"-8"
• 61" Model: 20" x 10"-10"

Caster Tires

• 36" and 42" Models: 11" x 4"-5"
• 48", 52", and 61" Models: 11" x 6"-5"

Seat

• 48", 52", and 61" Models: Padded with arm rests, adjustment forward and back (tools required)
• 36" and 42" Models: Optional armrest kit is available

Drive System

Drive System Type

• 36" and 42" Models: Hydro-Gear ZT-2800 Transaxle
• 48" and 52" Models: Tuff Torq TZ450 Transaxle
• 61" Models: Hydro-Gear ZT3100 Transaxle

Pumps

• Internal Pump: 10 cc

Motors

• Internal Motor: 10cc (Tuff Torq)
• Internal Motor: 16 cc (Hydro-Gear)

Forward Ground Speed

• 7 mph

Reverse Ground Speed

• 5 mph

Parking Brake

• Hand lever

Deck

Cutting Widths

• 36", 42", 48", 52", and 61"

Type

• Heavy-Duty Hero Cutter Deck

Cutting Height

• 1.5" to 4.5" in .25" increments

Deck Lift

• Foot-operated pedal

Construction

• Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.

Spindles

• Aluminum housing with sealed ball bearings

Blade Engagement

• Ogura GT1 (74 ft lb) – (36", 42", 48", and 52" Models)
• Ogura GT2 (108 ft lb) – (61" Model)
• Adjustable air-gap for extended life
