Description:

A commercial grade machine at the right price, the FasTrak series ticks a lot of boxes for business owners who demand more from their zero turn mower.

Boasting a long 4 year commercial warranty, 48" fabricated steel deck, commercial grade Kawasaki V-Twin engine and strong Hydro-Gear ZT-3200 transmissions, the FasTrak 48 offers plenty of bang for your bucks.

Safety is covered with standard roll over protection bar, while the seating position has been designed with operator comfort in mind.

The high back suspension seat with arm rests and well bolstered back cushion will have you stepping off fresh at the end of a long day!

The relatively small footprint for a commercial mower adds additional flexibility and access advantages compared to a larger machine, making this model suited to a wide variety of commercial mowing applications.

The FasTrak 48 will comfortable fit on a standard 7" x 5" trailer, for easy transportation and site access.

Specification:

Cutting Equipment & Features:

• Deck Width & Construction: 48 Inch 10 Gauge Fabricated Cutting Deck
• Blades & PTO: 3 Blades with electric PTO blade engagement
• Spindles: Aluminum with 11 gauge spindle mounts, 1" shaft, and double lip sealed ball bearings
• Cutting Height & Adjustment: 1.5" - 4.5" cutting range with foot-assisted deck height adjustment
• Optional Extras: Optional Mulch Kit, Optional Catcher Kit

Productivity & Capability:

• Ground Speed: 16 Km/h Ground Speed
• Acres per hour: 3.1 Acres per hour (Rating based on 80% efficiency to allow for real-world mowing conditions)
• Fuel Tank Capacity: 32 L
• Slope Capability: 15 Degrees

Power & Drive Train:

• Engine Type & Specifications: 22HP Kawasaki FT691V Engine. Air cooled. 726cc.
• Engine Warranty: 3 Year Engine Warranty
• Transmission Type & Specifications: Dual Hydro Gear ZT3200 Hydro Transmissions

Build & Chassis:

• Country of Manufacture: Made in the USA
• Chassis Construction: 1.5" x 3" Welded Tubular Steel Frame
• Roll Over Protection: Standard Roll Over Protection Bar
• Rear Wheels & Tires: 23" x 9.5" Rear Tires
• Front Wheels, Tires & Castors: 13" x 6.5" Front Tires

Comfort & Convenience:

• Seat Type: High Back Suspension Seat with Armrests
• Console Features: Cup Holder, Park Brake (Automatic Park Brake)
• Maintenance Access: Open rear design for easy engine maintenance
• Tow Hitch: Optional Tow Hitch

Dimensions:

• Minimum Trailer Size: 5 ft wide, 7 ft Long
• Length: 1948 mm
• Width (Chute up): 1270 mm (Chute up)
• Height (ROPS up & down): 1745 mm (ROPS up). 1156 mm (ROPS down)
• Weight: 413 kg

Description:

The new X-Ride is equipped with Custom Ride Technology, an isolated operator suspension platform designed to deliver a comfortable ride for the operator even while on rough terrain. The platform absorbs up to 4 inches of travel and has 5 levels of adjustability for the operator to find their comfort preference all while maintaining the stability on the mower.

Specification:

• Stock Number: 944074
• Make: Hustler
• Series: X-Ride
• Model: X-Ride 60"
• Deck Size: 60"
• Horsepower: 34.5
• Main Category: Zero-Turn Mowers
• Deal: Hustler
• All Mowers: All Mowers
• Commercial or Residential: Commercial

Description:

The FasTrak is the perfect mower to start your lawncare business, grow your lawncare business or mow residential large acreages like at a farm, ranch or place of business. The new additions include two USB ports, dual fuel tanks, rubber floor mat, frame tie-downs and cast deck hangers.

Specifications:

• Engine Manufacturer: Kawasaki FT691
• Engine Horsepower: 22
• Transmission: Hydro-Gear ZT-3200™
• Fuel Capacity: 8.5 gallons
• Ground Speed (Forward): Up to 10 mph
• Cutting Width: 54"
• Cutting Height: 1.5" to 4.5"
• Front Tire: 13 x 6.5-6
• Drive Tire: 23 x 11-10 BigBite™
• Warranty: 4 years or 750 hours

Description:

The FasTrak is the perfect mower to start your lawn care business, grow your lawn care business or mow residential large acreages like at a farm, ranch or place of business. The new additions include two USB ports, dual fuel tanks, a rubber floor mat, frame tie-downs, and cast deck hangers.

Features:

• Cast Deck Hangers: Engineered to enhance durability, ensuring prolonged usage and reliability.
• SmoothTrak™ Steering: Precision control system designed to facilitate trimming and maneuvering around obstacles with ease.
• Easy Serviceability: Maintenance is simplified with features like the flip-up seat pan, removable floor pan, and toolless removable pulley covers, making upkeep tasks straightforward and hassle-free.
• Magnetic Top Pin Deck Lift: Easily adjust the deck height between 1.5” to 4.5” using your foot, providing convenience and efficiency during operation.
• Welded Steel Deck: Constructed from durable 10-gauge welded fabricated steel, delivering robust performance and resilience to wear and tear.
• Dual Roto-Molded Fuel Tanks: Equipped with dual mechanical fuel gauges and boasting an 8.5-gallon fuel capacity, ensuring extended operation without frequent refueling.

Specifications:

• Cutting Width: 60"
• Engine: Kawasaki FT730
• Engine Horsepower: 24 HP
• Transmission: Hydro-Gear ZT-3200™ Dual Hydrostatic
• Fuel Capacity: 8.5 gallons
• Ground Speed (FWD): Up to 10 mph
• Cutting Height: 1.5" to 4.5"
• Front Tire Size: 13 x 6.5-6 inches
• Drive Tire Size: 23 x 11-10 BigBite™
• Warranty: 4 years or 750 hours

Engine Details:

• Displacement: 726cc
• Cooling: Air Cooled
• Warranty: 3 Year Limited

Transmission Details:

• Type: Dual Hydrostatic
• Technology: Hydro-Gear ZT-3200™
• Warranty: 3 Year Limited

Additional Features:

• Steering: Integrated with steering levers
• Seat: High-Back Suspension Seat
• Bagging System: 2-bag (Powered), 7.2 bushel capacity
• Bac-Vac: Powered, 8 bushel capacity

Dimensions:

• Weight: 944 lbs
• Height: 45.5" (ROPS down), 68.7" (ROPS up)
• Length: 76.7"
• Width w/ Chute Up: 61.1"
• Tire-to-Tire Width: 51.5"
• Productivity (Acres per Hour): 4.84

Bagging Systems Dimensions:

• 2-bag Capacity: 7.2 bushels
• Width: 98"
• Height: 69"

Bac-Vac Dimensions:

• Powered
• Capacity: 8 bushels
• Width: 88.75"
• Height: 69"

Description:

The legendary Raptor® X packs all the performance and reliability Hustler is known for into a simple and durable design. We engineer our mowers to be maintenance and service friendly for the everyday homeowner. From the frame to the deck to our trademark steering, the Raptor X delivers excellent cut quality for a well manicured lawn. We’ve put thousands of hours of R&D and testing into the Raptor Series, which is why it’s backed by a 3yr / 300hr limited warranty.

Features:

• 18hp & 21.5hp Kawasaki Engines
• 42” & 54” decks
• Up to 7 mph mowing speed
• 3-year / 300 hour limited warranty

Specifications:

• Engine Manufacturer: Kawasaki FR600
• Engine Horsepower: 18 HP
• Transmission: Hydro-Gear ZT-2200
• Fuel Capacity: 3 gallons
• Ground Speed (FWD): Up to 7 mph
• Cutting Width: 42"
• Cutting Height: 1.5" to 4.5"
• Front Tire: 11 X 5
• Drive Tire: 18 X 8.5-8 BigBite™
• Warranty: 3 Year/300 hour residential

Description:

The Raptor® XL features premium upgrades to the Raptor X. The XL provides some added comfort with a more premium seat and Flex Forks® for a smoother ride. Also, there is an option for additional horsepower with a 23hp Kawasaki® FR Engine. More comfort and more power backed by a 3yr / 300hr limited warranty.

Features:

• Welded Steel Deck
• Welded fabricated steel deck helps add durability and can extend the mower's life.
• Wider Stance
• Designed to provide ample room adding to the comfort for the operator.
• Smooth Trak™ Steering
• Precision control designed to help trim and maneuver easily around obstacles.
• Bolstered Seat
• Helps provide a comfortable ride with armrests and airflow to the back.
• Rubber Floor Mat
• Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.
• Fabricated Frame
• Continuous one-piece 1½ inch by 3 inch welded tubular frame.
• Foot-Operated Deck Lift
• Easily adjust the deck height between 1.5" - 4.5".
• Easy to Service
• Flip-up seat pan, removable floor pan, vented pulley covers.
• Exclusive Big Bite™ Rear Tires
• We worked directly with the tire manufacturer on this design.
• Kawasaki® Power
• Powered by a V-Twin Kawasaki® Engine.

Specifications:

Mower Deck:

• Width: 42 inches
• Cutting Height: 1.5 inches to 4.5 inches
• Grass Catcher: Non-powered, 2-bag, 5.4 bushel
• Dimensions (L x W x H): 91.4 inches x 56.5 inches

Engine:

• Model: Kawasaki FR651
• Power: 21.5 HP
• Displacement: 726cc
• Cooling: Air Cooled
• Warranty: 3 Year Warranty

Transmission:

• Type: Dual Hydrostatic
• Model: Hydro-Gear ZT-2200
• Capacity: 3 gallons
• Speed: Up to 7 mph
• Steering: Integrated with steering levers
• Warranty: 3 Year Warranty

Wheels:

• Front Tires: 11 x 5
• Rear Tires: 18 x 8.5-8 BigBite™

Comfort Features:

• Seat: Bolstered high-back seat with armrests and built-in lumbar support

Dimensions & Weight:

• Length: 69.9 inches
• Width: 45.5 inches
• Height: 43 inches
• Weight: 567 lbs

Additional Information:

• Residential Warranty: 3 Year/300 hour

Description:

Hustler Super Z Zero-Turn Mower 60" Kawasaki FX1000 EFI 38.5 HP (942854)

The Super Z® stands apart with Hustler’s acclaimed VX4® deck technology proven to cut and disperse grass more quickly and efficiently regardless of conditions.

Features:

• VX4® Deck - Fabricated 7 ga. steel deck engineered to move more grass at high-speeds while maintaining cut quality.
• Foot Operated Deck Lift - Easily adjust the deck height between 1”- 5.5” with your foot.
• I3M Suspension Seat - High-back seat with 3-inch travel range.
• SmoothTrak™ Steering - Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
• Large Fuel Capacity - Large 11.7 US gal. fuel tank for all-day mowing.
• Easy Serviceability - Flip-up seat pan, removable floor pan and vented pulley covers for easy and simple maintenance.

Description:

The Raptor® XD is the ideal zero-turn for homeowners with up to five acres of property. The up to 24hp Kawasaki® engine and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a crisp, clean cut-quality. Raptor XDs are backed by a 3yr / 300hr limited warranty.

Features

• Welded Steel Deck:
• Description: Constructed from welded fabricated steel
• Benefits: Enhances durability and extends the mower's lifespan
• Wider Stance:
• Description: Designed to provide ample room for the operator
• Benefits: Increases comfort and stability
• SmoothTrak Steering:
• Description: Precision steering system
• Benefits: Facilitates easy trimming and maneuvering around obstacles
• Bolstered Seat:
• Description: Equipped with armrests and airflow to the back
• Benefits: Ensures a comfortable ride for the operator
• Rubber Floor Mat:
• Description: Standard on all Raptor models
• Benefits: Minimizes vibration and increases comfort for the operator’s feet
• Fabricated Frame:
• Description: Continuous one-piece 1½ inch by 3 inch welded tubular frame
• Benefits: Provides robust structural integrity
• Foot-Operated Deck Lift:
• Description: Allows for easy deck height adjustments
• Height Range: 1.5 inches to 4.5 inches
• Easy to Service:
• Description: Features flip-up seat pan, removable floor pan, and vented pulley covers
• Benefits: Simplifies maintenance and servicing
• Exclusive BigBite Rear Tires:
• Description: Custom-designed in collaboration with the tire manufacturer
• Benefits: Enhanced traction and stability
• Kawasaki® Power:
• Description: Powered by a V-Twin Kawasaki® Engine
• Benefits: Delivers reliable and powerful performance

Specifications:

Mower Deck:

• Width: 48 inches
• Cutting Height: 1.5 inches to 4.5 inches
• Grass Catcher: Non-powered, 2-bag, 5.4 bushel
• Dimensions (L x W x H): 91.4 inches x 63.5 inches

Engine:

• Model: Kawasaki FR651
• Power: 21.5 HP
• Displacement: 726cc
• Cooling: Air Cooled
• Warranty: 3 Year Warranty

Transmission:

• Type: Dual Hydrostatic
• Model: Hydro-Gear ZT-2800®
• Capacity: 3 gallons
• Speed: Up to 7.5 mph
• Steering: Integrated with steering levers
• Warranty: 3 Year Warranty

Wheels:

• Front Tires: 13 x 6.5
• Rear Tires: 20 x 8-10 BigBite™

Operator Comfort:

• Seat: Bolstered high-back seat with armrests and built-in lumbar support

Dimensions & Weight:

• Length: 69.3 inches
• Width: 42 inches
• Height: 52.5 inches
• Weight: 627 lbs

Additional Information:

• Residential Warranty: 3 Year / 300 hour

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Specifications:

Engine:

The new Kawasaki® FT Series engines with patented Vortical air filtration blaze new trails.

Kawasaki® FT Series engines are designed and built to handle heavy loads. The Vortical air filtration system muscles out grass and debris while large, easy-to-access integrated clean-out ports amp up your efficiency and keep you cutting.

Other features include:

• 90° V-twin
• High-efficiency, centrifugal air intake system
• Dual-element air filtration with reinforced filter
• Large, easy-to-access integrated clean-out ports
• Pressurized lubrication system
• Electronic spark ignition
• Automatic compression release
• Internally vented carburetor with fuel shut-off solenoid
• Cast-iron cylinder liners

Specs:

• Model: STCII-52V-26FT-EFI
• Deck Width: 52″
• Deck Type: Velocity Plus™ Cutter Deck
• Engine Output: 26 HP
• Engine Brand: Kawasaki®
• Engine Series: FT Series with electronic fuel injection (EFI)

Description:

You take your yard work seriously, and to get the job done right you need a mower that was born to fight dirty. Engineered from the same DNA as our landscape contractor equipment, the 50 in. TimeCutter gives you the professional performance, exceptional durability and quality feel you've been waiting for. This machine is built like a beast, with an IronForged deck that won't fail, even after years of hard knocks. Most important, our machines are designed to do the work so you'll have more time than ever to take that fishing trip, tell tall tales around the campfire or just be with the ones you love. You can also enjoy peace of mind knowing Toro stands behind its products with a 3-year, unlimited hour residential engine warranty. And as a Toro owner, you'll have access to nearly 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

Features:

• More Time For You - Cut mowing time up to 50%* with zero-turn steering, giving you a gorgeous lawn and more time to enjoy it.
• Built Like a Bull - IronForged® high strength grade 50, 10-gauge steel deck with bull nose reinforced leading edge.
• Commercial DNA courses through these machines' veins with the same technology pros depend on.
• Pick Your Pace - Take control over your mowing speed, while never sacrificing blade tip speed with Smart Speed® Technology.
• Storage Cubby - Now there's a convenient and safe space in your under-seat cubby to store important items.

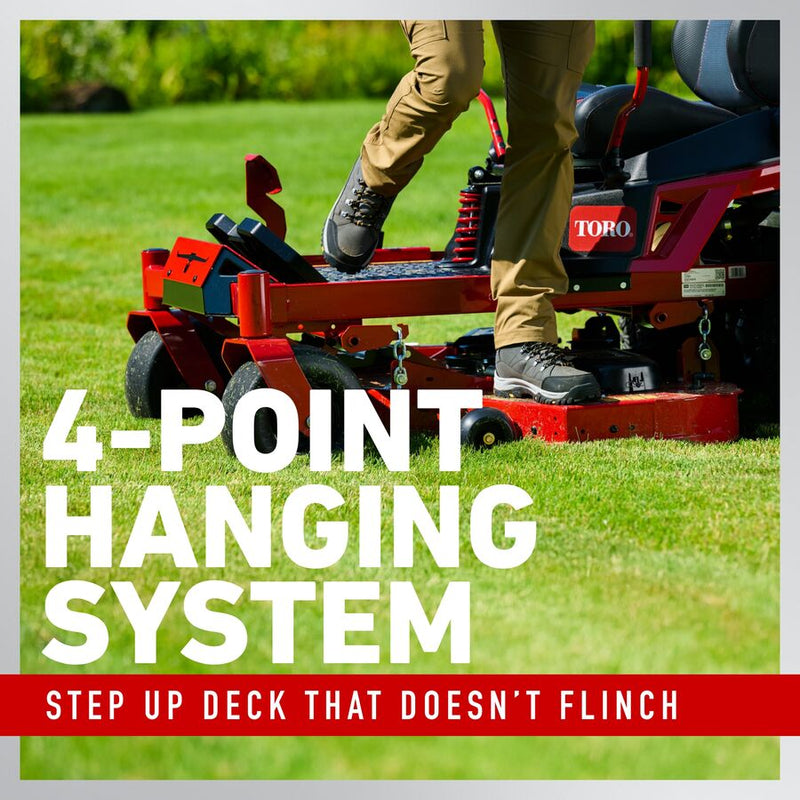

• Step-Through Front End - Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
• Simply unlatch the belt cover and easily sweep away debris to prevent deck corrosion and belt wear.
• Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
• Wet Spray Blocking Fenders - Shield your engine from tire spray and avoid back splash on you with protective tire fenders.
• Stay cool and hydrated with a built-in cup holder.
• More Time for You - Cut mowing time up to 50%.*
• Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more

Specifications:

• Engine: 23 hp Kawasaki, 726 cc
• Fuel: Gasoline, 3 gallons
• Start: Electric
• Oil Type: 10W-30

Cutting Deck

• Size: 50 inches
• Blades: 3
• Deck Material: Strong 10-gauge steel
• Cutting Height: 1.5 – 4.5 inches
• Deck Lift: Foot operated
• Washout Port: Yes (for cleaning)

Speed & Drive

• Drive Type: Rear-wheel drive
• Top Speed: 7 mph
• Trim Speed: 5.5 mph
• Tow Speed: 4 mph
• Transmission: Hydrostatic

Tires

• Front Tires: 11 x 5.5 in
• Rear Tires: 18 x 9.5 in

Comfort & Features

• Seat: 18" high back with armrests
• Controls: Dual levers
• Cup Holder: Yes
• Hitch: Yes
• Hour Meter: Optional
• Extras: Smart Speed control, strong IronForged deck

Other Info

• Use: Residential (up to 4 acres)
• Terrain: Flat with some obstacles
• CARB Compliant: No
• Box Size: 82 x 57 x 35 in

Description:

Take on any task with the Z Master® 2000 zero-turn mower. Constructed for professional use with a 7 gauge steel TURBO FORCE® cutting deck for fast, clean work. Plus, with a high-back suspension comfort seat you'll enjoy the ride, too.

Features:

• TURBO FORCE® Cutting Deck - Built to last. Enjoy years of reliable performance with an upgraded 7-gauge steel, 5.5" deep deck.
• Low-Back Suspension Seat - Stay comfortable on the job with the premium low-back shock absorbing suspension seat.
• 24" Voodoo Trac™ Drive Tires - Get the ultimate in aggressive tread and styling with 24" Voodoo Trac™ Drive Tires.
• Customize your ride with optional lights, bucket holder, trimmer mount, baggers, mounts, and up to 20 attachments.
• Horizon 360® Business Management Software. Work More Efficiently. Run More Profitably.

Specifications:

• Anti-Scalp Wheels: Standard
• Blade Tip Speed: 18,500 ft/min
• Box Dimensions: 91 in. x 63 in. x 52.5 in.
• CARB Compliant: Not CARB Compliant
• Caster Tires: 13 in. x 6.5 in. - 6 in. Pneumatic
• Clutch: Electromagnetic
• Deck Design: 5.5 in. deck depth, 7-Gauge High-Strength Steel TURBO FORCE® with bull-nose bumper
• Deck Size: 48 in.
• Discharge Chute: Rubber
• Drive Tires: Voodoo Trac 24 in. x 9.5 in. - 12 in.
• Engine: 24.5 hp Toro V-Twin 708 cc with Heavy Duty Air Cleaner
• Engine Brand: Toro
• Engine Displacement: 708 cc
• Engine Horsepower: 24.5 hp
• Foot Operated Height of Cut: Standard
• Forward Ground/Transport Speed: Up to 10.0 mph
• Fuel Capacity: 7 gal.
• Fuel Type: Gasoline
• Height of Cut: 1.5 - 5.0 in. (adjustable in 0.25 in. increments)
• Hitch Bracket: Standard
• Hour Meter: Standard
• Ignition: Electric
• Lighting: LED Headlights
• Notes: Integrated Receiver Hitch - 2 in. x 2 in., 80 lbs max tongue, 250 lbs max tow
• Product Type: Zero Turn Mowers
• Product Use: Commercial
• Roll-Over Protection (ROPS): Folding, Standard
• Seat: Deluxe Suspension Seat
• Spindle Housing: 8 in. Diameter Aluminum (Non Greasable) Ball Bearing, 1 in. Shaft
• Start Type: Electric
• Steering Controls: 1.4 in. Diameter Grips, Adjustable, Dampened
• Tool Mounting Capability: Side Console / Rear Guard Ready
• Transmission: Hydro-Gear ZT-3400
• Weight: 992 lbs

Description:

Release this big bad beast onto your property and watch Mother Nature cower beneath you. The Toro TITAN is built with over a century of pro-level engineering so you can devour every acre with unflinching strength, laser precision and extraordinary power. With a heavy duty IronForged deck, a reinforced bullnose leading deck edge and massive, aggressive treaded rear tires, there's nothing that will stop this fearless force of perfection. All the control in your hands with features like a commercial-style drop pin height of cut and easily adjustable control levers. So go ahead, unleash your inner beast.

Features:

• Built with a commercial-style I-beam front end for extreme durability and strength.
• Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
• The gaming-style seat gives you big time support exactly where you need it.
• Spray blocking fenders keep tire spray off your engine, and more importantly, you.
• Massive 22" rear tires feature aggressive treads meant to bring Mother Nature to her knees.
• Treaded front casters dial the attitude up to 11, making this one mighty-looking machine.
• The rubber discharge chute flexes without busting up your landscaping or your ride.
• Its gigantic engine delivers mega power so you can absolutely dominate nature's worst.
• A cast aluminum stomp pad helps you scrape your boots, get your grip, step up and let 'er rip.
• The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
• Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more

Specifications:

• Product Type: TITAN
• Product Use: Residential
• Engine Brand: Kawasaki
• Engine: 23 hp Kawasaki FS691 726cc
• Engine Displacement: 726 cc
• Engine Horsepower: 23.0 hp
• Engine Power: 17.2 kW
• Cooling System: Air Cooled
• Crankshaft: 1" (25 mm) with Steel Protector
• Start Type: Electric
• Recommended Oil Type: 10W-30
• Fuel Type: Gasoline
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
• Forward Ground/Transport Speed: Up to 8.5 mph / 13.6 kph
• Forward Mowing Speed: Up to 8.5 mph / 13.6 kph

Deck Specifications

• Deck Size: 60 in / 152 cm
• Deck Material: 10-Gauge Steel
• Deck Design: 10-Gauge Steel IronForged® with Fully Weld Grade 50 Steel Bumper
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm
• Foot Operated Height of Cut: Standard
• Number of Blades: 3
• Blade Design: 0.164 in. / 0.417 cm Steel with Blade Stiffener
• Blade Tip Speed: 18,908 ft/min / 5,763 m/min
• Discharge Chute: Rubber
• Anti Scalp Wheels: 4 Standard

Drive System

• Drive Type: Rear-Wheel Drive
• Drive System: Hydrostatic
• Transmission: Dual hydrostatic HG ZT2800
• Drive Tires: 22 in. x 11 in. (55.8 cm x 27.9 cm)
• Caster Tires: 13 in. x 6.5 in. - 6 in. (33 x 16.5 cm - 15.2 cm) Pneumatic

Frame and Comfort

• Frame: 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
• Carrier Frame: 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
• Front Bumper: Reinforced Bull-Nose
• Seat: 20" Gaming Style
• Cup Holder: Standard
• Comfort Platform: Standard Suspension
• Steering Controls: Twin Lever
• Steering Dampeners: Standard Dampers
• Hitch Bracket: Standard
• Armrests: Optional
• Roll-Over Protection (ROPS): Optional

Dimensions

• Box Dimensions: 82.0 in. x 57.0 in. x 52.0 in. / 208.3 cm x 144.8 cm x 132.0 cm
• Weight: 744 lbs / 337.5 kg

Additional Features

• Spindle Housing: Cast-Aluminum
• Clutch: Electromagnetic
• Terrain Type: Flat with Obstacles
• CARB Compliant: Not CARB Compliant

Description:

When it comes to your yard, second best just won't cut it. That's why the Toro TimeCutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you're done. With features like an unflinching heavy duty IronForged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.

Features:

• Patented MyRIDE® Suspension sits isolated from the frame to save your back and accelerate your mow.
• Over 100 years of Pro DNA course through the veins of every mower we build.
• Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
• The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.
• Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
• Spray blocking fenders keep tire spray off your engine, and more importantly, you.
• Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
• The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
• Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
• The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
• Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more

Specifications:

• Product Type: Zero-Turn Mower
• Product Use: Residential
• Start Type: Electric
• Weight: 684 lbs / 310.3 kg
• Box Dimensions: 82.0 in. x 57.0 in. x 35.0 in. (208.3 cm x 144.8 cm x 88.9 cm)
• Hour Meter: Optional
• Fuel Type: Gasoline
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
• Terrain Type: Flat with Obstacles
• Tow Capacity: Combined total of machine, user, and towed weight must not exceed 1,000 lbs
• CARB Compliant: Not CARB Compliant

Engine & Transmission

• Engine Brand: Kawasaki
• Engine Model: FR691V
• Engine Displacement: 726 cc
• Engine Horsepower: 23 hp
• Engine Power: 17.2 kW
• Air Filter: Standard Kawasaki Air Cleaner
• Crankshaft: 1" (25 mm) w/ Steel Protector
• Cooling System: Air Cooled
• Recommended Oil Type: 10W-30
• Drive Type: Rear-Wheel Drive
• Transmission: Dual Hydrostatic HG-EZT2200
• Hydraulic Drive: Standard
• Drive System: HYDRO
• Forward Speed (Mowing & Transport): Up to 7.0 mph / 11.2 kph

Deck & Cutting System

• Deck Size: 50 in / 127 cm
• Deck Design: 10-Gauge IrongForged®
• Deck Material: 10 Gauge Steel
• Blade Tip Speed: 17,600 ft/min / 5,364 m/min
• Number of Blades: 3
• Cutter System: Steel Cutting Blade
• Discharge Chute: Side
• Height of Cut: 1.5 – 5.0 in. / 3.8 – 12.7 cm
• Foot Operated Height of Cut: Standard
• Anti-Scalp Wheels: 3 Standard
• Washout Port: Standard
• Bagger Capacity: 4.9 bushels

Operator Features

• Seat: 19" Gaming Style
• Armrests: Optional
• Comfort Platform: MyRIDE® Suspension System
• Steering Controls: Twin Lever
• Steering Dampeners: Standard Dampers
• Cup Holder: Standard
• Lighting: Optional
• Hitch Bracket: Standard

Frame & Tires

• Frame: 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
• Carrier Frame: 3 in. x 1.5 in. x 0.120 in. Tubular Steel
• Caster Tires: 12 in. x 6 in. - 5 in. Pneumatic
• Drive Tires: 20 in. x 10 in. - 8 in.
• Tires: 12 in. x 6 in. Front / 20 in. x 11 in. Rear

Spindles & Maintenance

• Spindle Bearings: Maintenance-free
• Spindle Housing: Cast-Aluminum
• Greasable Bearings: Yes

Description:

When it comes to your yard, second best just won't cut it. That's why the Toro Time Cutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you're done. With features like an unflinching heavy duty Iron Forged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.

Features:

• Patented MyRIDE® Suspension sits isolated from the frame to save your back and accelerate your mow.
• Over 100 years of Pro DNA course through the veins of every mower we build.
• Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
• The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.
• Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
• Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
• Spray blocking fenders keep tire spray off your engine, and more importantly, you.
• Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
• The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
• Aggressive paint job that says you don't keep up with the Jones', you are the Jones'.
• Download the My Toro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more

Specifications:

• Air Filter: Standard Kawasaki Air Cleaner
• Anti Scalp Wheels: 3 Standard
• Armrests: Optional
• Bagger Capacity: 4.9 bushels
• Blade Tip Speed: 18,500 ft/min / 5,638 m/min
• Box Dimensions: 82.0 in. x 63.0 in. x 35.0 in. / 208.3 cm x 160.0 cm x 88.9 cm
• CARB Compliant: Not CARB Compliant
• Carrier Frame: 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
• Caster Tires: 13 in. x 6.5 in. - 6 in. (33 x 16.5 cm - 15.2 cm) Pneumatic
• Clutch: Electromagnetic
• Comfort Platform: MyRIDE® Suspension System
• Cooling System: Air Cooled
• Crankshaft: 1" (25 mm) w/Steel Protector
• Cup Holder: Standard
• Cutter System: Steel Cutting Blade
• Deck Design: 10-Gauge steel IrongForged®
• Deck Material: 10 Gauge Steel
• Deck Size: 60 in / 152 cm
• Discharge Chute: Side
• Drive System: Hydrostatic
• Drive Tires: 20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm)
• Drive Type: Rear-Wheel Drive
• Engine: 23 hp Kawasaki FR691V 726cc
• Engine Brand: Kawasaki
• Engine Displacement (cc): 726 cc
• Engine Horsepower: 23.0 hp
• Engine Power (kW): 17.2 kW
• Foot Operated Height of Cut: Standard
• Forward Ground/Transport Speed: Up to 7.0 mph / 11.2 kph
• Forward Mowing Speed: Up to 7.0 mph / 11.2 kph
• Frame: 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
• Fuel Type: Gasoline
• Greasable Bearings: Yes
• Height of Cut: 1.0 - 5.0 in. / 2.5 - 12.7 cm
• Hitch Bracket: Standard
• Hour Meter: Standard
• Hydraulic Drive: Standard
• Lighting: Optional
• Number of Blades: 3
• Product Type: TimeCutter Max MyRide
• Product Use: Residential
• Recommended Oil Type: 10W-30
• Roll-Over Protection (ROPS): Optional
• Seat: 19" Gaming Style
• Spindle Bearings: Maintenance-free
• Spindle Housing: Cast-Aluminum
• Start Type: Electric
• Steering Controls: Twin Lever
• Steering Dampeners: Standard Dampers
• Terrain Type: Flat with Obstacles
• Tires: 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear
• Transmission: Dual Hydrostatic HG-ZT2800
• Washout Port: Standard
• Weight: 704 lbs / 319.3 kg

Description:

Release this big bad beast onto your property and watch Mother Nature cower beneath you. The Toro TITAN is built with over a century of pro-level engineering so you can devour every acre with unflinching strength, laser precision and extraordinary power. With a heavy duty IronForged deck, a reinforced bullnose leading deck edge and massive, aggressive treaded rear tires, there's nothing that will stop this fearless force of perfection. All the control in your hands with features like a commercial-style drop pin height of cut and easily adjustable control levers. So go ahead, unleash your inner beast.

Features:

• The rubber discharge chute flexes without busting up your landscaping or your ride.
• Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
• Massive 22" rear tires feature aggressive treads meant to bring Mother Nature to her knees.
• Treaded front casters dial the attitude up to 11, making this one mighty-looking machine.
• The gaming-style seat gives you big time support exactly where you need it.
• Built with a commercial-style I-beam front end for extreme durability and strength.
• Spray blocking fenders keep tire spray off your engine, and more importantly, you.
• Its gigantic engine delivers mega power so you can absolutely dominate nature's worst.
• A cast aluminum stomp pad helps you scrape your boots, get your grip, step up and let 'er rip.
• The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
• Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more

Specifications:

General:

• Product Type: TITAN
• Intended Use: Residential
• Weight: 845 lbs / 383.3 kg
• Fuel Type: Gasoline
• Fuel Capacity: 5 gallons / 18.9 liters / 20 quarts

Engine and Transmission:

• Engine Brand: Kawasaki
• Engine Model: FR730
• Engine Horsepower: 24.0 hp
• Engine Displacement: 726 cc
• Engine Power: 17.9 kW
• Air Filter: Kawasaki Standard Air Cleaner
• Cooling System: Air Cooled
• Crankshaft: 1" (25 mm) with Steel Protector
• Transmission: Dual hydrostatic HG ZT2800

Dimensions:

• Box Dimensions: 91 in. x 70.3 in. x 52 in. / 178.6 cm x 132.1 cm x 231.1 cm
• Carrier Frame: 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel

Performance:

• Forward Ground/Transport Speed: Up to 8.5 mph / 13.6 kph
• Forward Mowing Speed: Up to 8.5 mph / 13.6 kph
• Blade Tip Speed: 18,908 ft/min / 5,763 m/min
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm
• Foot Operated Height of Cut: Standard
• Anti Scalp Wheels: 4 Standard

Deck and Blades:

• Deck Size: 60 in / 152 cm
• Deck Design: 10-Gauge Steel IronForged® with Fully Welded Grade 50 Steel Bumper
• Deck Material: 10 Gauge Steel
• Number of Blades: 3
• Blade Design: 0.164 in. / 0.417 cm Steel with Blade Stiffener
• Discharge Chute: Rubber
• Spindle Housing: Cast-Aluminum

Tires:

• Caster Tires (Front): 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic
• Drive Tires (Rear): 22 in. x 11 in. (55.8 cm x 27.9 cm)

Comfort and Convenience:

• Seat: 20" Gaming Style (Armrests Optional)
• Comfort Platform: Standard Suspension
• Cup Holder: Standard
• Start Type: Electric
• Controls: Twin Lever
• Steering Controls: Twin Lever with Standard Dampers
• Hitch Bracket: Standard

Terrain Handling:

• Drive Type: Rear-Wheel Drive
• Front Bumper: Reinforced Bull-Nose
• Terrain Type: Flat with Obstacles

Compliance and Maintenance:

• CARB Compliant: Not CARB Compliant
• Recommended Oil Type: 10W-30

Safety and Additional Features:

• Roll-Over Protection (ROPS): Optional

Description:

The all-new ZXL zero-turn rider fills the gap between our current ZTO and ZXT models and is a welcomed addition to our ZX series of commercial riding mowers. Built on the same frame as the ZXT, the ZXL shares in the extreme durability and construction of the ZXT but in a lighter, more compact and more affordable package. The ZXL is equipped with powerful EFI engine offerings, large 24” rear tires, a premium bolstered suspension seat, Aero-core deck, along with 15.5 gallons of fuel capacity. The ZXL is available in 52- and 61-inch deck sizes and is compatible with the WrightVac power bagging system, making it a versatile and valued asset in your fleet.

Features:

• Large rear tires for added traction and lower ground pressure

• Premium bolstered suspension seat minimizing rider fatigue

• Durable tie-downs for secure and easy transport

• Hydro-Gear® ZT4400 Transaxle for responsive handling

• Aero-Core Deck

• Large Bolt-On Caster frame

• Intuitive Control Panel with charging port

• Large Deck Pulleys for extended belt life

• EFI Engine Offerings for smooth power delivery and efficiency

• Hands-free brake and deck lift

• Large dual fuel tanks allowing for 15.5-gal fuel capacity

• Individual hydro tanks prevent cross-contamination

Specifications:

GENERAL

• Category: Mid-Mount
• Family: ZXL
• Class: Heavy-duty
• Generation: Gen 1

CONTROLS

• Operator Control Type: Over the lap controls
• Hour Meter: Digital

ENGINE

• Vendor: Kawasaki
• Model: FX820
• Start Type: Electric
• Horsepower: 34.5 HP

PRODUCTIVITY

• Forward Speed: 12.5 MPH
• Reverse Speed: 8 MPH
• Fuel Capacity: 15.5 GAL
• Max Acres Per Hour: 6.57

DRIVE SYSTEM

• Type: Hydro
• Transaxle: Hydro-Gear ZT4400

DECK

• Deck Size: 52 IN
• Deck Type: Floating-side discharge
• Configuration: Aero Core
• Lift System: Foot Pedal Operated
• Blade Quantity: 3
• Blade Length: 18 IN
• Deck Min. Cut Height: 1.5 IN
• Deck Max. Cut Height: 6 IN
• Steel Gauge: 7 Gauge
• Spindle Type: Ductile Iron

DIMENSIONS

• Weight: 1250 LB
• Length: 82.50 IN
• Width w/ Deflector Down: 65.50 IN
• Width w/ Deflector Up: 53.00 IN

CASTER WHEELS

• Rim Diameter: 6.00 IN
• Tire Diameter: 13.00 IN
• Tire Width: 6.50 IN

REAR WHEELS

• Rim Diameter: 12.00 IN
• Tire Diameter: 24.00 IN
• Tire Width: 9.50 IN
