Description:

52" Velocity Plus Stand-On Lawn Mower w/ 37 hp Briggs Vanguard EFI EngineFeaturing a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

Description:

COME HOME TO THE BEST

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

• Strong and Adjustable Clutch: The Ogura GT1 PTO Clutch Brake delivers 74 ft. lb. of holding strength, with an adjustable air gap for extended longevity. It provides excellent starting and stopping power for the cutter deck.

Command Perfection

• Deep Fabricated Cutter Decks: The heavy-duty Hero Cutter Deck design ensures superior quality-of-cut. Its deep construction efficiently manages tall grass even at higher speeds, supported by heavy-duty aluminum sealed ball bearing blade-drive spindles for reliable season-to-season performance.

High-Strength Steel Frame

• Solid Construction: Built with a tubular-steel main frame for unmatched strength and durability, ensuring years of dependable service.

Low-Maintenance Design

• Increased Uptime: Fewer grease points enhance operator convenience and ease-of-ownership, reducing maintenance intervals.

Proven Transaxles

• Smooth Power Delivery: Equipped with dual hydro transaxles (Tuff Torq TZ450, Hydro-Gear ZT-2800, or ZT-3100 depending on model) for smooth and powerful performance to the drive wheels, supporting speeds up to 7 mph.

Contoured High-Back Seat

• Comfortable Operation: Features an ultra-comfortable, adjustable seat with armrests (standard on larger models, optional on smaller models) for improved comfort during extended use.

Easy Foot-Pedal Deck Lift

• Effortless Deck Adjustment: Spring-assisted foot-pedal deck lift mechanism ensures smooth and easy raising and lowering of the cutter deck.

Powerful Engine Options

• Reliable Power: Offers a variety of proven air-cooled V-twin engine options, delivering up to 27 HP to tackle tough mowing tasks efficiently.

Specification:

• Total Fuel Capacity: 3.5 gallons
• Drive Tires: 20" x 8"-10"
• Caster Tires: 11" x 4"-5"
• Seat: Optional armrest kit available (armrests not included by default)
• Drive System Type: Hydro-Gear ZT-2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 10 cc (Tuff Torq)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Width: 36"
• Cutting Height: 1.5" to 4.5" in 0.25" increments
• Deck Lift: Foot-operated pedal
• Deck Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb) – adjustable air-gap for extended life
• Product Dimensions:
• Length: 68.5"
• Width (chute down): 48.5"
• Width (chute in transport position): 37"
• Height: 40"
• Engine: 18 HP Kawasaki® FR600V – V-Twin, air-cooled engine, 603 cc displacement
• Weight: 555 lb

Description:

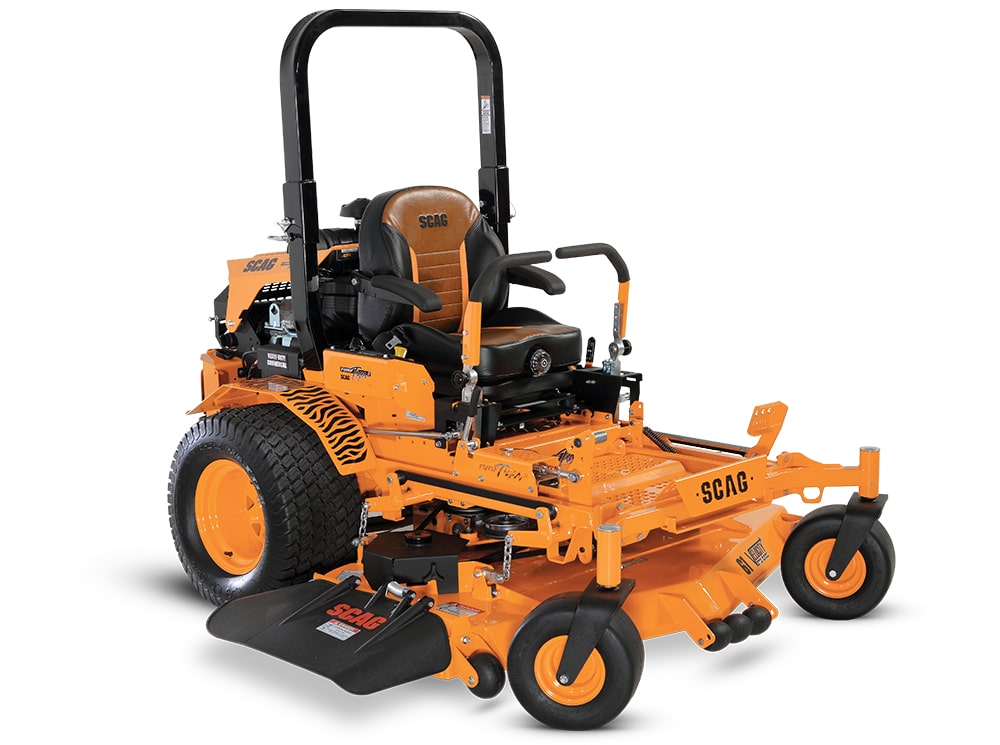

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

61" Cutting Width

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Engine

The Briggs & Stratton® Vanguard® BIG BLOCK™ engine found on select Scag® mower models is a proven performer with power and reliability. Features include:

• V-Twin OHV technology.
• Dura-Bore cast-iron cylinder sleeve.
• Full-pressure lubrication with spin-on oil filter.
• Oil cooler.
• Advanced debris management.
• Centrally located oil pump and pickup.
• Heavy-duty cylinder and sump.
• High-efficiency head design.
• Dynamically balanced crankshaft.
• Industrial-grade solenoid shift starter.

Specification:

Product Dimensions (61″ Tiger Cat):

• Length: 80″
• Width (chute down): 73.5″
• Width (chute in transport position): 62.75″
• Height (ROPS folded): 46.75″
• Height (ROPS up): 67.25″
• Weight: 1,257–1,277 lb

General:

• Total Fuel Capacity: 9.5 gallons
• Drive Tires: 24″ x 12″-12″
• Caster Tires: 13″ x 6.5″-6″, flat-free
• Seat: 4-point iso-mounted mid-back seat on operator-suspension platform

Drive System:

• Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14.5 ci
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck:

• Cutting Width: 61″
• Type: Velocity Plus™
• Cutting Height: 1″ to 5″ (adjustable in 0.25″ increments)
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck made of 3 steel plates totaling nearly 1/2″ thick, with reinforcement plates at cutter deck spindles
• Spindles: Cast-iron housing with tapered roller bearings.

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Specifications:

Engine:

The new Kawasaki® FT Series engines with patented Vortical air filtration blaze new trails.

Kawasaki® FT Series engines are designed and built to handle heavy loads. The Vortical air filtration system muscles out grass and debris while large, easy-to-access integrated clean-out ports amp up your efficiency and keep you cutting.

Other features include:

• 90° V-twin
• High-efficiency, centrifugal air intake system
• Dual-element air filtration with reinforced filter
• Large, easy-to-access integrated clean-out ports
• Pressurized lubrication system
• Electronic spark ignition
• Automatic compression release
• Internally vented carburetor with fuel shut-off solenoid
• Cast-iron cylinder liners

Specs:

• Model: STCII-52V-26FT-EFI
• Deck Width: 52″
• Deck Type: Velocity Plus™ Cutter Deck
• Engine Output: 26 HP
• Engine Brand: Kawasaki®
• Engine Series: FT Series with electronic fuel injection (EFI)

Description:

Features:

• 4-BLADE IMPELLER - FABRICATED AND BALANCED, 20-INCH, 4-BLADE IMPELLER: Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design.
• SMART CONSTRUCTION AND CONVENIENT SERVICEABILITY - EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE: 1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.
• LOCKING BOOM ARM AND INTAKE NOZZLE - SAFE AND CONVENIENT TRANSPORT: Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.

Specification:

• Manufacturer: SCAG Power Equipment
• Model: Tow-Behind (TL20W-26CH-EFI)
• Model Code: TL20W-26CH-EFI
• Color: Orange

BODY

• Frame: Construction - All-steel, welded
• Blower Construction: Removable back panel for easy impeller and wear plate access
• Blower Wear Plates: Standard 1/4 in. steel, replaceable

DIMENSIONS

• Length:
• Intake Hose: 120 in.
• Discharge Tube: 60 in.
• Height: 110 in.
• Width:
• Trailer: 53.5 in.
• Impeller: 6.5 in.
• Housing: 7.5 in.
• Diameter:
• Impeller: 20 in.
• Discharge Tube: 8 in.
• Weight: 990 lb.

ENGINE

• Engine: Kohler® Command PRO® EFI, V-Twin
• Horsepower: 26.5 hp
• Starter: Electric
• Fuel Tank Capacity: 5.5 gal. plastic tank with built-in fuel gauge

OPERATIONAL

• Blades Output: 4,680 cfm
• Discharge Tube: Clear thermoplastic
• Tires: 205 / 75 R15 highway tires with steel wheels

Description:

With a steel beveled intake nozzle that makes debris pickup easy and ambidextrous handle for enhanced maneuverability, it’s time to stand your ground with the Skid-Mount. Its welded-steel impeller with 3/8″-thick steel blades are balanced for reduced vibration and put less stress on the engine—delivering performance for years to come.

Specifications:

• Product Specification: Skid-Mount
• Fuel Capacity / Tank: 1.75 gallons – engine-mounted metal tank
• CFM Output: 3,075
• Frame Construction: All-steel, welded
• Impeller Construction: 4-blade, 3/8"-thick blades, all-steel, welded
• Impeller Mounting: Tapered locking hub
• Impeller Diameter / Width: 20" / 5.25"
• Blower Housing Construction: Removable back panel for easy impeller and wear plate access
• Blower Housing Width: 6"
• Blower Housing Wear Plates: Standard: 1/4"-steel, replaceable
• Hose Specifications: 120" length, 10"-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip
• Unit Mounting: 4" steel skid risers
• Discharge Tube: Clear thermoplastic, 7" diameter
• Throttle Control: Commercial-grade, all-steel mechanicals, plastic debris cover
• Highway Ready: n/a
• Axle: n/a
• Tires: n/a
• Trailer Width: n/a
• Height: 74.25" (without skid or hitch mount attached)
• Weight: 437 lb
• Warranty: 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental

Description:

THE REAL DEAL FOR SERIOUS CHEMICAL APPLICATIONS

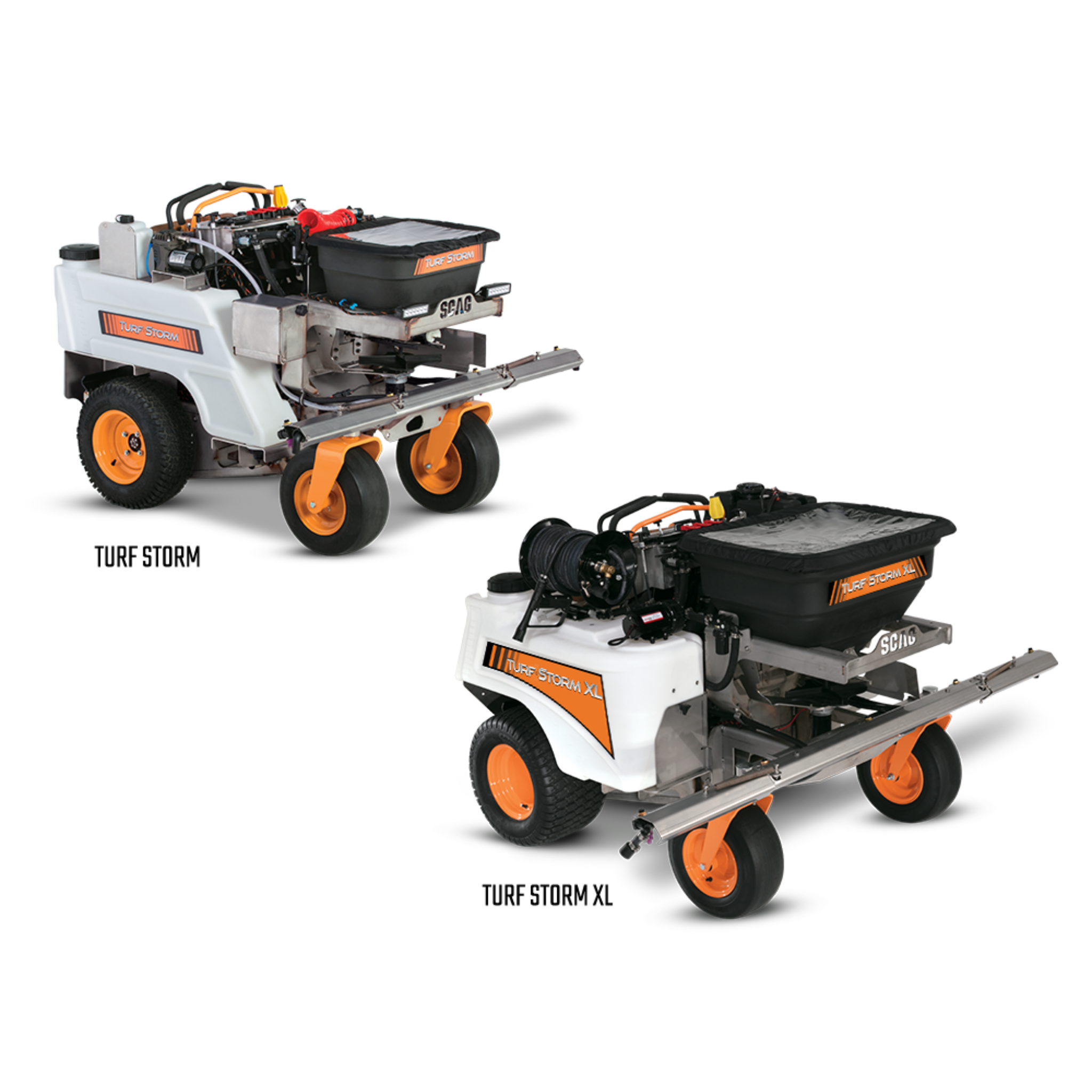

Looking to expand your lawn care offers? The Turf Storm XL and Turf Storm are ready to help you handle any job. With a 220-lb spreader capacity, 60-gallon sprayer capacity and an 8-ft spray boom, the Turf Storm XL can handle even the largest jobs. Conversely, the Turf Storm, with its 120-lb spreader capacity and 30-gallon sprayer capacity, is ideal for working on smaller residential properties. And, its 35.5-inch width (65-inch boom folded in) lets it fit through any standard gate. A 75-foot hose reel (Turf Storm XL) or 15-foot hose reel (Turf Storm) allows you to reach tough spaces.

Features

Dual Liquid Tanks

• Large Liquid Capacity:
• Turf Storm XL: 60-gallon total capacity
• Turf Storm: 30-gallon total capacity
• Translucent Tanks: Raised measurement indicators for accurate fill levels.
• Spray Booms:
• Turf Storm XL: 8-foot-wide with five nozzles, spraying widths of 2, 6, 8, or 10 feet.
• Turf Storm: 65-inch wide, spraying widths of 2, 6, or 8 feet.
• Hose Reel:
• Turf Storm XL: 75-foot hose reel
• Turf Storm: 15-foot flex hose for reaching tough spaces.

Large Hopper Capacity

• Hopper Sizes:
• Turf Storm XL: 220-pound dry/granular capacity
• Turf Storm: 120-pound capacity
• Spread Width: Up to 25 feet with a high-torque electric spreader motor.

Maneuverability and Stability

• Wide Stance: Ensures optimum maneuverability.
• Dynamically Balanced: Eliminates the need for locking front casters (Turf Storm XL only).

Ease of Use and Maintenance

• Quick Drain Plug: Conveniently located at the lowest part of the tanks for quick draining and cleaning.
• Accurate Application Pattern: High torque electric spreader motor for better control and reduced system heat.

Operator Comfort and Control

• Ergonomic Controls: Finger tip controls for easy operation, with all controls within reach.
• Spacious Operator Platform: Extra-large comfort cushion with coil-spring suspension for a smooth ride.

Powerful Engine

• 23hp Vanguard Engine: Briggs Vanguard® engine offers ample power and efficiency.
• Dependable Charging System: 50-amp charging system supports reliable spreader operation and powers accessories (e.g., 7 gpm pump, lights, foam marker).

Maintenance Accessibility

• Easy Access Design: Removable cushion and open lower area for quick access to hydro drive pumps, reservoir, and other mechanical components.

Specifications:

• Hopper Capacity: 220 lb
• Spreader Motor: High-Torque Electric
• Spread Width: Up to 25 ft.
• Deflector: Mechanical lever activation of stainless steel door
• Hopper Cover: Included

Spray System

• Spray Capacity: 60-gallon dual tanks (30-gallon each); high visibility tanks
• Hinged Boom Arms: 8-foot wide, 5 nozzles
• Spray Width: 2, 6, 8, or 10 ft
• Breakaway Booms: Standard
• Coil Hose: Heavy-duty, 75-foot high-pressure hose
• Pump Capacity: 5 gpm (7 gpm optional accessory)

General

• Model: STS60-23BV
• Total Fuel Capacity: 5 gallons
• Front Wheel(s): 16″ x 6.5″-8″, pneumatic
• Rear Wheels: 20″ x 12″-10″, 4-ply
• Currently Available Accessories: Foamer Kit, LED Light Kit, and 7 GPM pump

Engine

• Engine: Briggs Vanguard™
• Horsepower: 23 hp
• Charging System: 12 Volt, 50 Amp

Drive System

• Drive System: Dual pump and motor
• Pumps: Hydro-Gear: PG Series 10 cc
• Motors: Parker TG Series: 14.5ci
• Ground Speed: Up to 8.5 MPH forward, up to 5 MPH reverse
• Parking Brake: Hand lever

Dimensions

• Length: 67″
• Width (spray booms in): 54″
• Width (spray booms out): 82″
• Height: 50″
• Weight (dry): 965 lb

Warranty

• Warranty: 2-Year Commercial & Non-Commercial Warranty; 90-day Rental

Description:

It’s time for you to rise to the top of the food chain and tame turf with the Turf Tiger II™, a machine that’s tougher than any job you can throw at it. Engineered for superior durability, productivity and comfort, the Turf Tiger II gives you the edge over whatever nature throws at you while leaving you ready to take on the next challenge.

Specifications:

• Engine Model: Briggs Vanguard™ BIG BLOCK™ EFI (Electronic Fuel Injection)
• Horsepower: 40 HP
• Cooling System: Air-cooled
• Fuel System: Electronic Fuel Injection (EFI)

Deck:

• Deck Type: Velocity Plus™ Cutter Deck
• Deck Size: 72 in (182.9 cm)
• Deck Construction: Fabricated
• Deck Material: Heavy-duty steel (likely 7 gauge, common for commercial mowers)
• Cutting Width: 72 in (182.9 cm)
• Discharge Configuration: Side discharge
• Cutting Height Range: Typically adjustable from 1.5 in to 5 in (3.8 cm to 12.7 cm), but specific settings may vary
• Deck Drive: Belt-driven spindles, common in heavy-duty mowers

Description:

Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

48", 52" or 61" Cutting Width

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48″, 52″ and 61″ widths. An Advantage Cutter Deck is featured on 32″ and 36″ widths

Scag® cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Velocity Plus™ cutter deck is an outstanding performer and delivers beautiful results.

The Velocity Plus™ Cutter Deck provides the unmatched power, precision and performance professionals demand. This revolutionary deck design delivers high-velocity discharge plus a beautiful manicured cut, even at faster ground speeds. A redesigned cutting chamber and massive discharge opening provide even greater cutting performance with maximum clipping dispersal in any conditions.

Strength — Scag’s tough cutter-blade spindles and Tri-Plate construction ensure solid performance and long life. A replaceable trim-side wear pad protects deck from damage.

Productivity — An extra-large discharge opening, paired with the Turbo Baffle, enhances discharge for even clipping dispersal.

Flexibility — The Velocity Plus cuts everything from fine grasses to tough weeds. The Custom-Cut™ Front Baffle System allows you to customize the deck to your individual conditions for even more productivity and higher performance.

Engines:

Kawasaki FT Series Engines

Commercial-Grade Power

The new Kawasaki® FT Series engines with patented Vortical air filtration blaze new trails.

Kawasaki® FT Series engines are designed and built to handle heavy loads. The Vortical air filtration system muscles out grass and debris while large, easy-to-access integrated clean-out ports amp up your efficiency and keep you cutting.

Other features include:

• 90° V-twin
• High-efficiency, centrifugal air intake system
• Dual-element air filtration with reinforced filter
• Large, easy-to-access integrated clean-out ports
• Pressurized lubrication system
• Electronic spark ignition
• Automatic compression release
• Internally vented carburetor with fuel shut-off solenoid
• Cast-iron cylinder liners

Specification:

• Specification - V-Ride II
• General:
• Total Fuel Capacity:
• 5 gallons (32″)
• 6.75 gallons (36″)
• 8 gallons (48″, 52″, and 61″)
• Drive Tires:
• 20″ x 6.5″-10″ (32″)
• 20″ x 8″-10″ (36″)
• 24″ x 9.5″-12″ (48″ and 52″)
• 24″ x 12″-12″ (61″)
• Caster Tires:
• 11″ x 4″-5″ (32″ and 36″)
• 13″ x 5″-6″ (48″ and 52″)
• 13″ x 6.5″-6″ (61″)
• Seat: Extra-large comfort cushion
• Drive System:
• Drive System Type: Dual Pump and Motor
• Pumps:
• Hydro-Gear 10 cc (32″ and 36″)
• Hydro-Gear 12 cc (48″, 52″, and 61″)
• Motors:
• Parker 12 ci (32″ and 36″)
• Parker 14 ci (48″, 52″ and 61″)
• Forward Ground Speed:
• 8.5 mph (32″ and 36″)
• 10.5 mph (48″, 52″ and 61″)
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Deck:
• Cutting Widths: 32″, 36″, 48″, 52″, and 61″
• Type:
• Advantage (32″ and 36″)
• Velocity Plus™ (48″, 52″, and 61″)
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Hand lever
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. 32″ model features dual-plate.
• Spindles: Cast-iron housing with tapered roller bearings.
• Blade Engagement:
• Ogura GT2.5 (150 ft lb) – (32″, 36″, 48″, and 52″)
• Ogura GT3.5 (250 ft lb) – (61″)
• Adjustable air-gap for extended life.
• Length: 69.5″
• Tracking Width: 48″
• Width (Chute Down): 65.25″
• Width (Chute in Transport Position): 53.75″
• Height: 47.25″
• Weight: 1,000-1,022 lb

Description:

The Scag® SFC-21 Finish-Cut Walk-Behind mower is the compact solution you've been searching for, offering impressive productivity and versatility within its 21" wide platform. Whether you're on the job or tending to your own lawn, the SFC-21 ensures professional-quality results with each pass, leaving behind a beautifully manicured lawn.

Equipped with 3-in-1 versatility, including mulching, bagging, and optional side discharge capabilities, this mower empowers you to handle various challenges with ease while achieving exceptional results.

Features:

Fine-Tuned and Simple:

• Easy height-of-cut adjustment: Allows for cutting heights ranging from 1.5" to 4.5" in 0.5" increments, providing flexibility to adapt to different grass lengths and preferences.

Description:

The Scag® SFC-21 Finish-Cut Walk-Behind mower is the compact machine you’ve always wanted—packing big productivity and versatility into a 21” wide platform. On the job or at home, the SFC-21 delivers a professional quality-of-cut that leaves behind a beautiful lawn, each and every time. Capable of 3-in-1 versatility (mulching, bagging and optional side discharging), it helps you tackle whatever challenges come your way with top-notch results.

Specifications:

• Engine: 7HP @ 3300 RPM, 4 cycle gas, OHV, air-cooled, single-cylinder, vertical shaft
• Transmission: GT MG 512 transmission, 3-speed
• Wheels/Tires: Drive: 10.5 x 3 / Front: 9 x 2.25
• Handle Bars: 1″ diameter, thick wall tubing, 3-position adjustable
• Safety Group: Handle actuated operator presence system
• Forward Speed: Up to 4.25 mph
• Cutting Width: 21 inches (53.34 cm)
• Cutting Height Adjustment: 1.5″ to 4.5″ in 0.5″ increments
• Cutter Blade: 0.1345 in. thick, milled edge, wear resistant

Description:

The Scag Mega Blower is a powerhouse of efficiency and performance, driven by a robust 37 hp Vanguard® BIG BLOCK™ EFI air-cooled engine. Designed for heavy-duty applications, it ensures exceptional power, efficiency, and reliability. Its operator station is equipped with an extra-large comfort cushion and suspension platform, ensuring a comfortable ride even during extended use. Tie-down points facilitate quick and secure trailer attachment, while convenient engine and hydraulic oil drains located underneath simplify maintenance tasks.

Controls and Instrument Panel:

Featuring ergonomic drive-control levers for seamless operation, the Mega Blower's instrument panel houses essential controls including NDS, ignition switch, PTO switch, throttle control, choke control, and Scag's exclusive Tiger Eye™ Advanced Monitoring System.

Large Dual Air Intake:

The Mega Blower incorporates front and rear air intakes, aerodynamically designed to optimize airflow without causing turbulence.

Reliable Performance: Equipped with a 23" fabricated and balanced 8-blade impeller, the blower ensures years of dependable service and smooth operation. The impeller mounting utilizes a tapered locking hub for enhanced performance.

Massive Air Output:

With an impressive air output of up to 6,000 effective CFM (7,500 theoretical peak CFM), the Mega Blower delivers unparalleled ground-clearing force across various surfaces and applications.

Convenient Manual Lever:

A vertical-tilt control allows for effortless adjustment of the discharge nozzle angle, enabling effective debris removal and preventing blowback.

Fingertip Switches:

Dual horizontal-rotation controls enable precise adjustment of the nozzle's rotation up to 180 degrees, facilitated by an Auto Left/Right Switch and a Fine-Tune Switch.

NDS (Nozzle Direction System):

Scag's exclusive NDS grants users unprecedented control over the air-discharge vertical tilt and horizontal rotation, offering 180° multi-directional air-output control for superior performance and versatility.

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Features:

• TRI-PLATE DECK TOPS: Super-rigid Tri-Plate deck construction results in a nearly 1/2" thick (0.485") steel cutter deck top (most zero-turn rider models).
• FRONT BAFFLE CHAMBER: Special front baffle chamber allows the grass to be lifted up before the blade cuts it. No stragglers.
• WEAR PAD: Replaceable trim-side wear pad protects the deck and landscaping from scraping and impact damage.

Specifications:

Vehicle:

• Total Fuel Capacity: 9.5 gallons
• Drive Tires: 24" x 9.5"-12" (48" and 52"), 24" x 12"-12" (61")
• Caster Tires: 13" x 6.5"-6", flat-free
• Seat: 4-point iso-mounted mid-back mounted on operator-suspension platform

Drive System:

• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14.5 ci
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck:

• Cutting Widths: 48", 52", and 61"
• Type: Velocity Plus™
• Cutting Height: 1" to 5" in .25" increments
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings.

Blade Engagement:

• Blade Engagement: Ogura GT3.5 (250 ft lb) Adjustable Air-Gap: for extended life.

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

Features:

TRI-PLATE DECK TOPS:

Super-rigid Tri-Plate deck construction results in a nearly 1/2" thick (0.485") steel cutter deck top (most zero-turn rider models).

FRONT BAFFLE CHAMBER:

Special front baffle chamber allows the grass to be lifted up before the blade cuts it. No stragglers.

WEAR PAD:

Replaceable trim-side wear pad protects the deck and landscaping from scraping and impact damage.

Specifications:

Fuel Capacity

• Total Fuel Capacity: 9.5 gallons

Tires

• Drive Tires:
• 24" x 9.5"-12" (for 48" and 52" cutting widths)
• 24" x 12"-12" (for 61" cutting width)
• Caster Tires: 13" x 6.5"-6", flat-free

Seat

• Type: 4-point iso-mounted mid-back
• Mounting: Mounted on operator-suspension platform

Drive System

• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14.5 ci
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck

• Cutting Widths: 48", 52", and 61"
• Type: Velocity Plus™
• Cutting Height: 1" to 5" in 0.25" increments
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel, with reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura GT3.5 (250 ft lb), adjustable air-gap for extended life

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around, and out of tight spaces quickly—putting you on the path toward increased profitability.

Features:

• TRI-PLATE DECK TOPS: Super-rigid Tri-Plate deck construction results in a nearly 1/2" thick (0.485") steel cutter deck top (most zero-turn rider models).
• FRONT BAFFLE CHAMBER: Special front baffle chamber allows the grass to be lifted up before the blade cuts it. No stragglers.
• WEAR PAD: Replaceable trim-side wear pad protects the deck and landscaping from scraping and impact damage.

Specifications:

Fuel Capacity:

• Total Fuel Capacity: 9.5 gallons

Tires:

• Drive Tires:
• 24" x 9.5"-12" (for 48" and 52" cutting widths)
• 24" x 12"-12" (for 61" cutting width)
• Caster Tires: 13" x 6.5"-6", flat-free

Seat:

• Type: 4-point iso-mounted mid-back
• Mounting: Mounted on operator-suspension platform

Drive System:

• Drive System Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14.5 ci
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck:

• Cutting Widths: 48", 52", and 61"
• Type: Velocity Plus™
• Cutting Height: 1" to 5" in 0.25" increments
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel, with reinforcement plates at cutter deck spindles.
• Spindles: Cast-iron housing with tapered roller bearings

Blade Engagement:

• Blade Engagement: Ogura GT3.5 (250 ft lb), adjustable air-gap for extended life
