Description

• Built to tackle big jobs while fitting in small spaces.
• Built Like a Bull - IronForged^® high strength grade 50, 10-gauge steel deck with bull nose reinforced leading edge.
• Take control over your mowing speed, while never sacrificing blade tip speed.
• Step-Through Front End - Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
• Storage Cubby - Now there's a convenient and safe space in your under-seat cubby to store important items.
• Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
• Commercial DNA courses through these machines' veins with the same technology pros depend on.

Description:

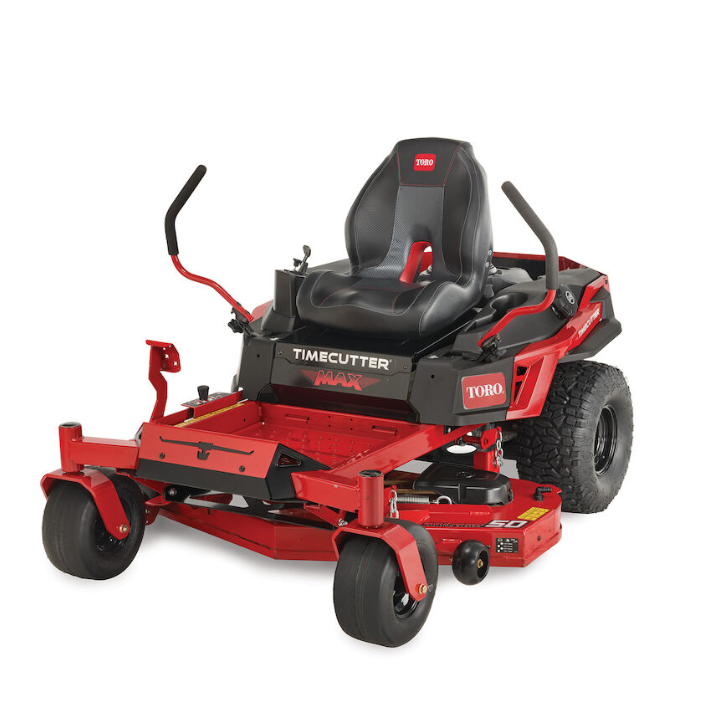

TORO TimeCutter 50 in 23 HP V Zero Turn Lawn Mower 77501

Product Information:

No matter how you cut it, the Toro TimeCutter MAX arms you with professional performance, rock-solid durability and best-grass-in-the-neighborhood precision. Built with over a century of pro-level engineering, this lawn-dominating machine features a heavy-duty IronForged deck, beefy, traction-happy tires, easy maintenance, and a plush, gaming-style seat to give you the edge over whatever nature throws your way.

Specifications:

• Air Filter: Standard Kawasaki Air Cleaner
• Anti Scalp Wheels: 3 Standard
• Armrests: Optional
• Bagger Capacity: 4.9 bushels
• Blade Tip Speed: 17,600 ft/min / 5,364 m/min
• Box Dimensions: 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm
• CARB Compliant: Not CARB Compliant
• Carrier Frame: 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
• Caster Tires: 12 in. x 6 in. - 5 in. (30.5 x 12.2 cm - 12.7 cm) Pneumatic
• Clutch: Electromagnetic
• Comfort Platform: Standard Suspension
• Cooling System: Air Cooled
• Crankshaft: 1" (25 mm) w/Steel Protector
• Cup Holder: Standard
• Cutter System: Steel Cutting Blade
• Deck Design: 10-Gauge steel IronForged®
• Deck Material: 10 Gauge Steel
• Deck Size: 50 in / 127 cm
• Discharge Chute: Side
• Drive System: HYDRO
• Drive Tires: 20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm)
• Drive Type: Rear-Wheel Drive
• Engine: 23 hp Kawasaki FR691V 726cc
• Engine Brand: Kawasaki
• Engine Displacement (cc): 726 cc
• Engine Horsepower: 23.0 hp
• Engine Power (kW): 17.2 kW
• Foot Operated Height of Cut: Standard
• Forward Ground/Transport Speed: Up to 7.0 mph / 11.2 kph
• Forward Mowing Speed: Up to 7.0 mph / 11.2 kph
• Frame: 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
• Fuel Type: Gasoline
• Greasable Bearings: Yes
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm
• Hitch Bracket: Standard
• Hour Meter: Optional
• Hydraulic Drive: Standard
• Lighting: Optional
• Number of Blades: 3
• Product Type: TimeCutter Max
• Product Use: Residential
• Recommended Oil Type: 10W-30
• Roll-Over Protection (ROPS): Optional
• Seat: 19" Gaming Style
• Spindle Bearings: Maintenance-free
• Spindle Housing: Cast-Aluminum
• Start Type: Electric
• Steering Controls: Twin Lever
• Steering Dampeners: Standard Dampers
• Terrain Type: Flat with Obstacles
• Tires: 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear
• Tow Capacity: Combined machine, user, towed weight may not exceed 1,000 lbs.
• Transmission: Dual Hydrostatic HG-EZT2200
• Washout Port: Standard.

Product Overview

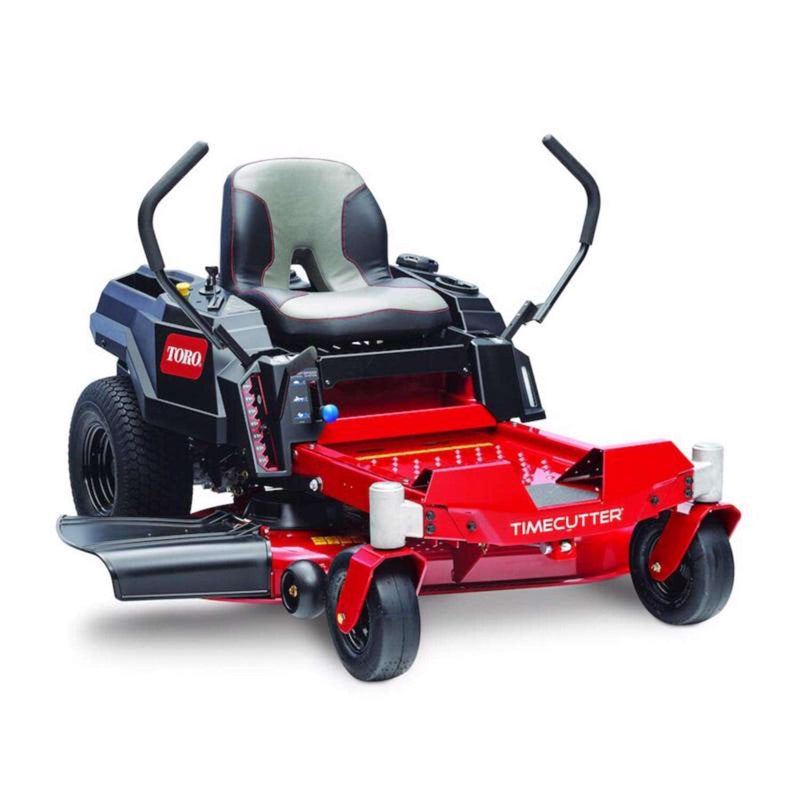

Tackle everything on your "Honey-Do" list and still make it in time for all the summer fun with Toro's 42 in. TimeCutter. The mower's compact design makes for easy storage, and features like a step-through front end, built-in cupholder and storage cubby give you the ultimate in convenience. It's also a snap to control with Toro's Smart Speed Technology, which adjusts to your pace for easy maneuverability. Pinpoint quality cuts and zero turn mowing are just two pro commercial contractor features that put Toro's cutting edge technology and world class craftmanship into the hands of homeowners.

Built Like a Bull - IronForged high strength grade 50, 10-gauge steel deck with bull nose reinforced leading edge.

Commercial DNA courses through these machines' veins with the same technology pros depend on.

Step-Through Front End - Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.

Storage Cubby - Now there's a convenient and safe space in your under-seat cubby to store important items.

Ride in style with a handcrafted seat that provides the ultimate in padding and back support.

Take control over your mowing speed, while never sacrificing blade tip speed.

Shield your engine from tire spray and avoid backsplash on you with protective tire fenders.

Download the MyToro App from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more.

Specifications

• Brand Name:Toro
• Sub Brand: TimeCutter
• Product Type: Zero Turn Riding Mower
• Brand Name: Toro
• Deck Material: Steel
• Drive Type: Rear-Wheel Drive
• Engine Brand: Briggs & Stratton
• Engine Displacement: 724 cubic centimetre
• Front Wheel Size: 11 inch
• Fuel tank capacity: 3 gallon (US)
• Height: 42 inch
• Horsepower: 22 HP (horsepower)
• Maximum Cutting Height: 4.5 inch
• Minimum Cutting Height: 1.5 inch
• Model Number: 77404
• Number of Blades: 2 blade
• Rear Wheel Size: 18 inch
• Sub Brand: TimeCutter
• Width: 49 inch
• Powered By: Gas
• Maximum Forward Speed: 7 mile per hour
• Maximum Reverse Speed: 3 mile per hour
• Mow in Reverse: Yes
• Turning Radius: 0 inch
• Deck Size: 42 inch
• Cutting Options: Side Discharge
• Armrest Kit Included: No
• Yard Size: 1-2 acre
• What's Included:Engine Oil

Description:

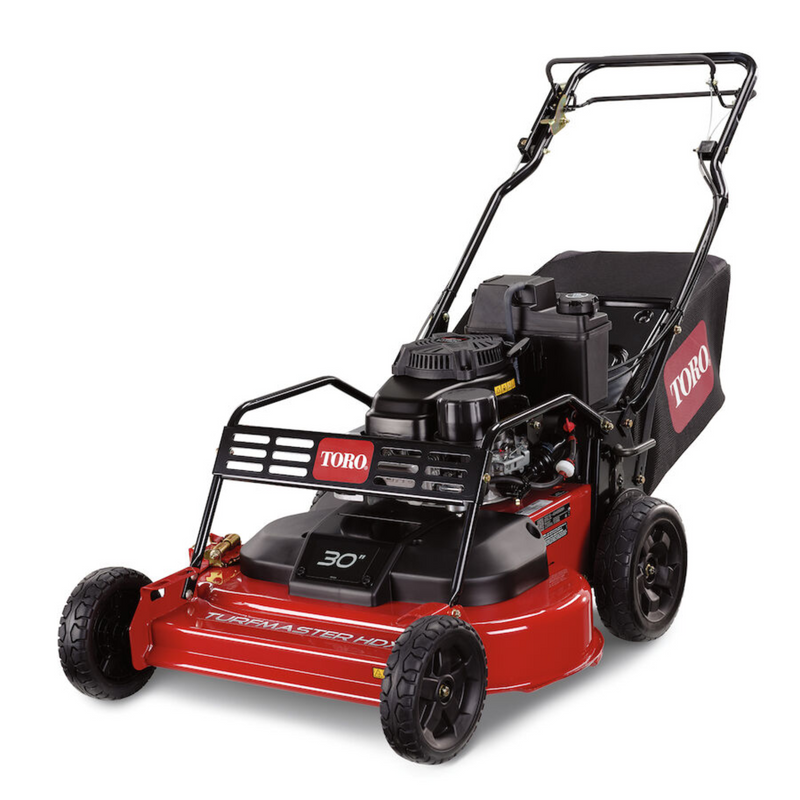

We know that up time is everything when it comes to your business. Cut more grass in fewer passes than ever before with the TurfMaster's wide 30 in. deck. You'll tackle hilly terrain and full bags of clippings with ease with a strong MV702 transmission. Every component from top to bottom is made for heavy use in rough conditions, from curbs and trailers to multiple operators. And you'll spend less time refueling with the large one-gallon gas tank. Not only is this mower built to last, it's also designed to give you the professional-quality cut your customers demand for even the most complex mowing jobs. And you can rest easy knowing that Toro stands behind its mowers with 1-year warranty. And as a Toro owner, you'll have access to nearly 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

Dimensions: 41 in x 32 in x 66 in (104.1 cm x 81.3 cm x 167.6 cm) (LxWxH)

Choose the right fuel for your mower. For best starting results use Non-ethanol fuel with an octane rating of 87 or higher. Use fresh fuel less than 30 days old, add fuel stabilizer to reduce starting problems. Do not mix oil with gas.

• Made to Last - 13-gauge steel deck and heavy-duty components.
• Toro Tough - Rubber tires with co-polymer wheels and ball bearings.
• Reduced Refills - Less time refueling with the 1-gallon gas tank.
• Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.

Features:

• Impact Protection: Steel bullnose front bumper, brush guard, and engine guard protect components from damage.
• Heavy-Duty Components: Durable cast-aluminum frame, heavy-duty steel deck, and bull-nose front bumper designed for tough jobs.
• Commercial-Grade Wheels: Rubber tires with co-polymer wheels and precision ball bearings for durability and reduced downtime.
• 2-Point Height of Cut (HOC): Easy adjustment of deck height with a heavy-duty 2-point system.
• Mulching System: Minces grass clippings for a tidy appearance without the need for collection.
• Large 1-Gallon Gas Tank: Provides longer mowing time between refueling.
• Two-Bail Control System: Offers excellent speed control and ease of operation.
• Blade Brake Clutch (BBC): Allows disengagement of blades without engine shutdown, saving time when maneuvering or emptying the bag.
• Highly Productive 30" Deck: 3-in-1 design for mulching, bagging, or side discharge to increase efficiency.
• Horizon360® Business Management Software: Simplifies managing and growing your business with user-friendly features.

Specifications:

• Bagger Capacity: 2.5 bushels
• Blade Design: 0.135 in. / 0.343 cm Thick Steel
• Blade Engagement: Blade Brake Clutch (BBC)
• Blade Tip Speed: 18,000 ft/min / 5,486 m/min
• Box Dimensions: 41.75 in. x 33 in. x 26 in. / 106.0 cm x 83.8 cm x 66.0 cm
• CARB Compliant: Yes
• Deck Material: 13 Gauge Steel
• Deck Size: 30 in / 76 cm
• Engine: Kawasaki® 179 cc FJ180V Commercial
• Engine Brand: Kawasaki
• Engine Displacement: 179 cc
• Forward Mowing Speed: Up to 4.0 mph / 6.4 kph
• Fuel Capacity: 1 gal. / 3.8 L / 4 Qt.
• Fuel Type: Gasoline
• Height of Cut: 1.5 - 5.0 in. / 3.8 - 12.7 cm
• Mulch, Bag, Side Discharge: Bag standard, Mulch standard, Side discharge standard
• Number of Blades: 2
• Product Type: Walk Behind Mowers
• Product Use: Commercial
• Self Propel System: Variable Speed
• Start Type: Pull Cord
• Tires:
• Front: 9 in. x 2 in. (22.8 cm x 5.0 cm) Rubber Tire w/Co-Polymer Wheels
• Rear: 10.5 in. x 3 in. (26.6 cm x 7.6 cm) Rubber Tire w/Co-Polymer Wheels
• Transmission: Heavy Duty Variable Speed Rear Wheel Drive
• Weight: 187 lbs / 84.2 kg
