Description:

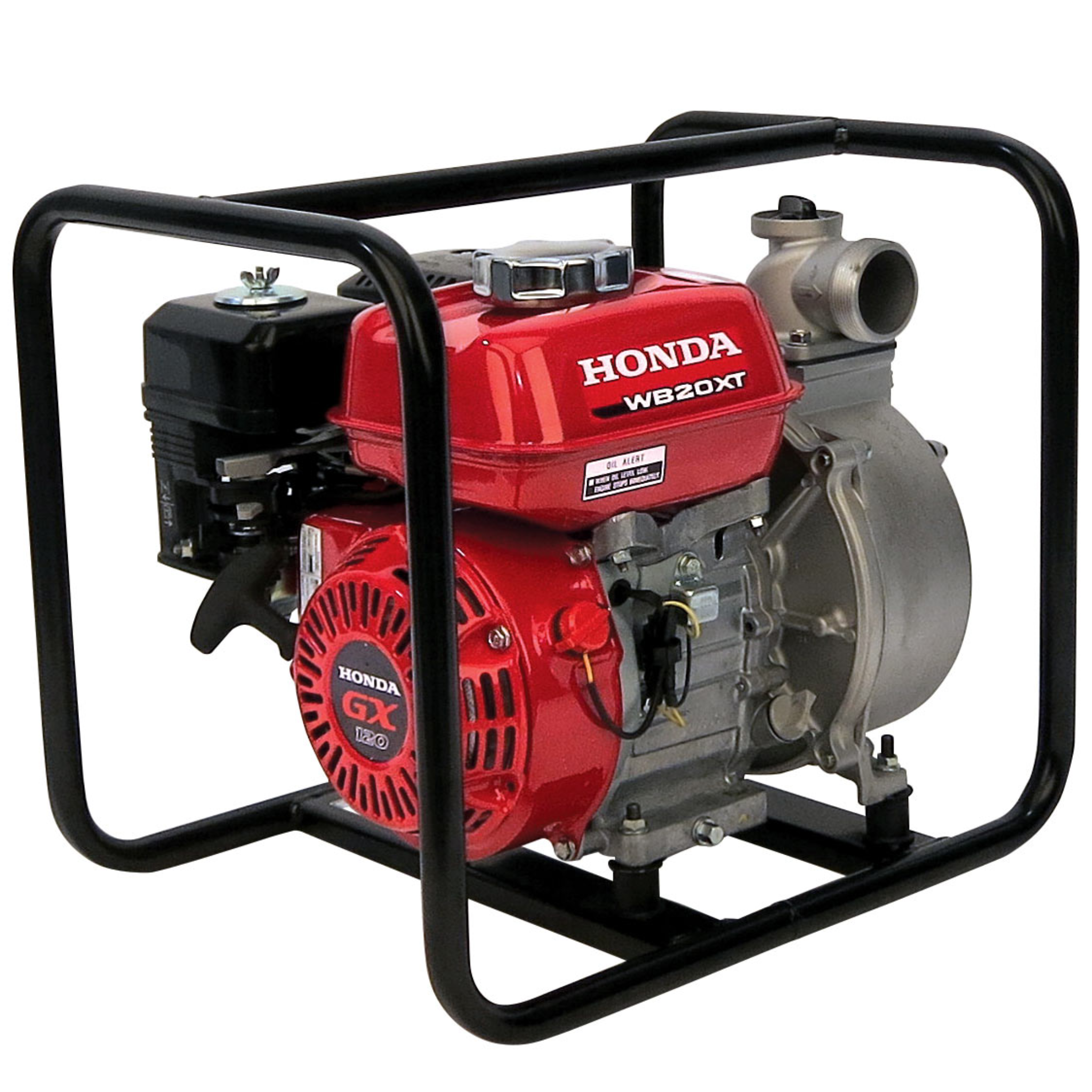

2" general purpose water pump

• 164 gal./min. capacity
• Durable silicon carbide mechanical seal
• Cast iron volute and impeller

Features:

• Engine: Easy starting Honda OHV commercial GX120 engine
• Mechanical Seal: Durable silicon carbide seals for extended wear
• Impeller: Honda-designed 4 vane high efficiency impeller
• Volute: Rigid-mount cast iron volute for reduced case wear
• Frame: Heavy duty full frame protection with tie-down capability
• Mounting: Isolation mounted engine and pump to minimize vibration
• Oil Alert: Protected by Honda Oil Alert® system
• Strainer: Large strainer allows up to 8 mm (5/16 in.) solids to pass through

Specification:

• Engine GX120
• Displacement 118cc
• Bore and stroke 2.4" x 1.7"
• Compression Ratio 8.5:1
• Oil Alert Std
• Pump Type Centrifugal, Self-priming
• Volute Rigid Mounted Cast Iron
• Impeller 4 Vane Cast Iron
• Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
• Priming time 110 sec @ 16.4 ft.
• Drive system Direct
• Discharge capacity 164 gal/min
• Suction port diameter 2" NPT
• Discharge port diameter 2" NPT
• Total head lift 105 ft.
• Suction head lift 25 ft.
• Maximum pressure 45 psi
• Solids handling N/A
• Dimensions (LxWxH) 19.3" x 14.4" x 16.5"
• Dry weight 44 lb.
• Fuel Capacity 0.53 gal
• Run Time @ Max Discharge 1.7 hr
• Strainer Part # 78325-YG3-000
• Residential Warranty 24 months
• Commercial Warranty 12 months
