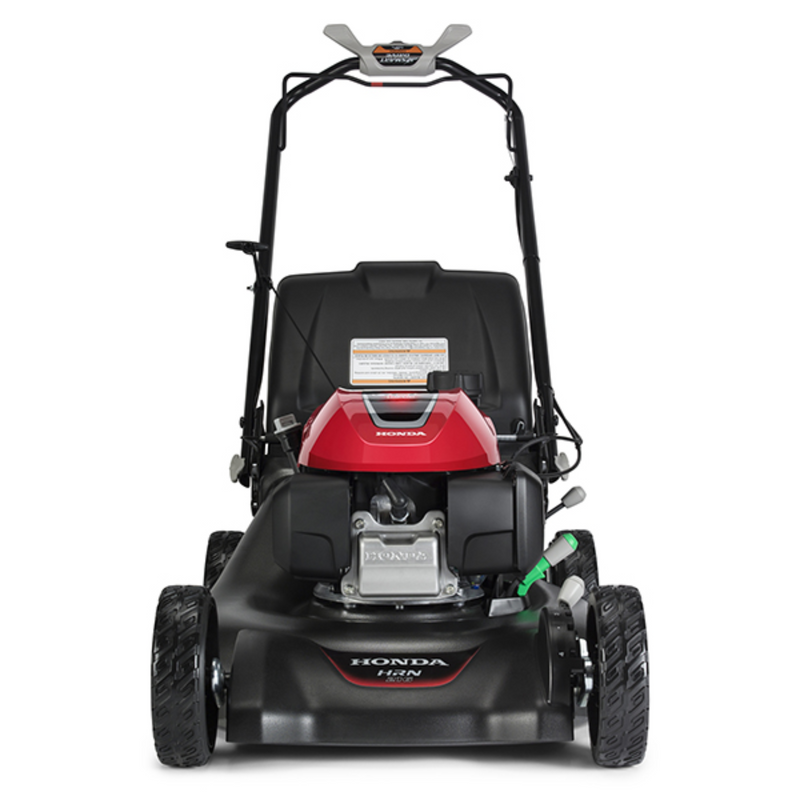

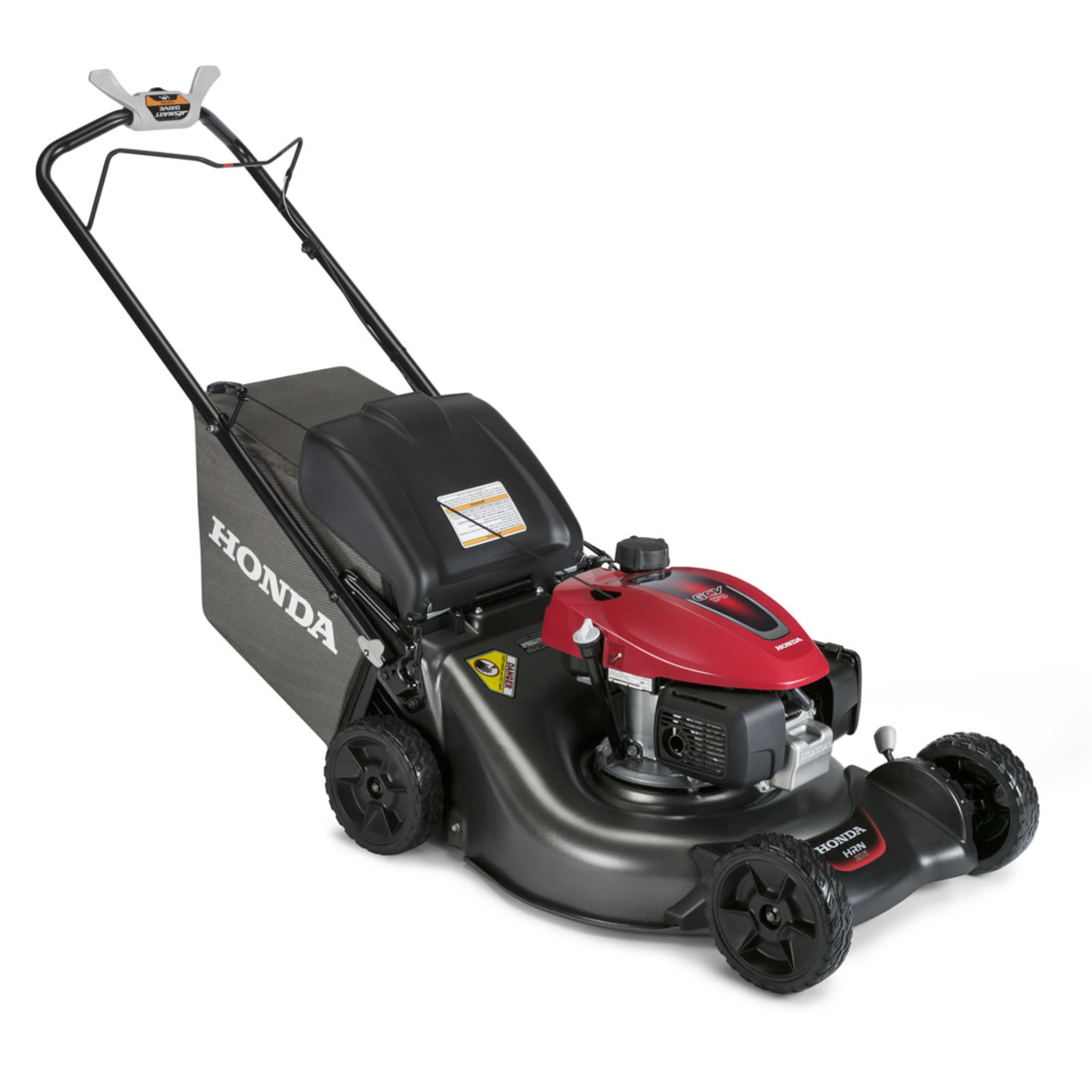

Description:

21" Walk Behind Mower, Variable Speed

• Self-propelled, variable speed Smart Drive
• 3 in 1 with Clip Director® - mulch, bag, and discharge
• Honda GCV170 engine with Auto Choke System

Features

• Smart Drive Self Propel
• Control: Intuitive, variable speed control with five adjustable positions.
• Speed Range: Variable speed from 0 to 4 mph for personalized comfort.
• Superior Mulching and Bagging
• Capability: High-quality cut whether mulching or bagging, even in tough conditions.
• 3-in-1 System with Clip Director®
• Functionality: Easily switch between mulching, bagging, or discharging by sliding the Clip Director—no additional attachments needed.
• MicroCut® Twin Blades System
• Design: Stacked and offset twin blades for superior cut quality and smaller clippings for enhanced mulching and bagging.
• Honda GCV170 Engine
• Performance: Reliable, easy starting engine designed to handle challenging mowing conditions.
• Honda Auto Choke™ System
• Feature: Automatic choke system for effortless starting—no manual choke required.
• Easy Fold Quick Release Handle
• Adjustability: Handle can be adjusted to two comfortable mowing positions or folded for storage.
• Improved Maneuverability
• System: 2-Way Ratchet System enhances maneuverability and reduces effort for tight turns.
• Dual-Lever Height Adjustment System
• Adjustments: Conveniently adjust to seven cutting heights (1" to 4").
• Heavy-Duty 21" Steel Deck
• Design: Optimized for superior mulching and bagging with enhanced air flow.
• Easy Maintenance
• Features: Large fuel tank spout, straightforward oil changes, and accessible spark plug and air filter.
• 8" High Traction Wheels
• Advantage: Provides excellent traction across various mowing conditions.
• Large Easy-Off 1.9 Bushel Grass Bag
• Design: Balanced for easy emptying, saving time and effort.
• Flywheel Brake Safety System
• Safety: Quickly stops the engine when the flywheel brake lever is released.
• Manual Fuel Shut-Off Valve
• Function: Allows fuel to be shut off for transport, storage, or maintenance.
• Warranty
• Residential: 3 years
• Commercial: 90 days

Specifications

• Model Name: HRN216VKA
• Carton Label: HRN216VKAA / HRN216VKAB
• Engine: Honda GCV170
• Deck Material: Steel, 16 ga
• Cutting Width: 21"
• Mowing Height Range: 1" - 4"
• Mowing Height Adjustments: 7
• Drive Control: Variable Position Smart Drive
• Transmission: Variable Speed Fixed Gear Belt Clutch
• Ground Speed: 0 to 4.0 mph
• Starter: Recoil
• Choke System: Automatic
• Drive: Slipping Belt
• Handle: 1" Steel Tube
• Handle Height Positions: 2
• Wheels: 8" Plastic
• Ball Bearing Wheels: Sintered metal bushing (Rear only)
• Standard Functions: 3-in-1: Mulch, Bag, Discharge
• Bag Capacity: 1.9 bushels
• Blades: Twin blades (MicroCut System®)
• Blade Control: Flywheel brake
• Discharge: Rear standard
• Dry Weight: 79 lb
• Operating Weight: 82 lb
• CA Compliant: Yes

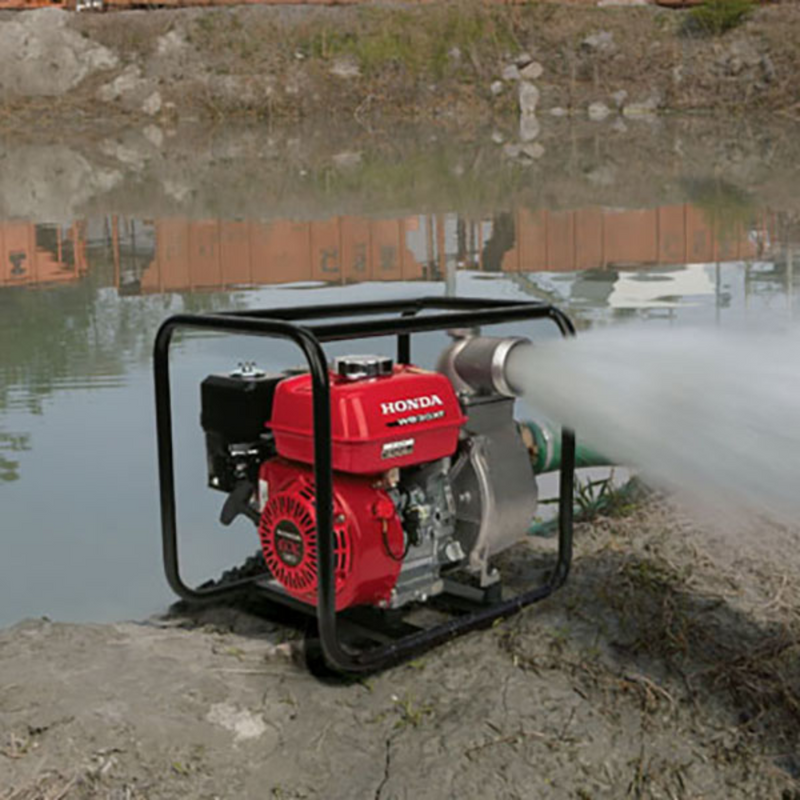

Description:

3" general purpose water pump

• General purpose, centrifugal 3" pump
• Easy starting Honda OHV commercial engine
• 290 gal./min. capacity
• Silicon carbide mechanical seal
• Cast iron volute and impeller

Features:

• Easy starting Honda OHV commercial engine, part of the durable Honda GX series
• Durable silicon carbide mechanical seal for extended wear
• 4 vane high efficiency impeller designed by Honda for improved performance
• Cast iron volute for rigid-mount and reduced case wear
• Heavy duty full frame protection with convenient tie-down locations
• Isolation mounted engine and pump to minimize vibration and increase durability
• Protected by Honda Oil Alert® to shut off the engine when low oil is detected
• Large strainer allows up to 8 mm (5/16 in.) solids to pass through, reducing clogging

Specifications:

• Engine: GX160, 163cc displacement, 2.7" x 1.8" bore and stroke, compression ratio 9.0:1
• Oil Alert: Standard
• Pump Type: Centrifugal, Self-priming
• Volute: Rigid Mounted Cast Iron
• Impeller: 4 Vane Cast Iron
• Mechanical Seal (Pump case / impeller): Silicon Carbide/Silicon Carbide
• Priming Time: 150 sec @ 16.4 ft.
• Drive System: Direct
• Discharge Capacity: 290 gal/min
• Suction Port Diameter: 3" NPT
• Discharge Port Diameter: 3" NPT
• Total Head Lift: 85 ft.
• Suction Head Lift: 25 ft.
• Maximum Pressure: 37 psi
• Dimensions (LxWxH): 20.1" x 15.2" x 17.9"
• Dry Weight: 57 lb.
• Fuel Capacity: 0.82 gal
• Run Time @ Max Discharge: 1.9 hr
• Strainer Part #: 78325-YG4-000
• Residential Warranty: 24 months
• Commercial Warranty: 12 months

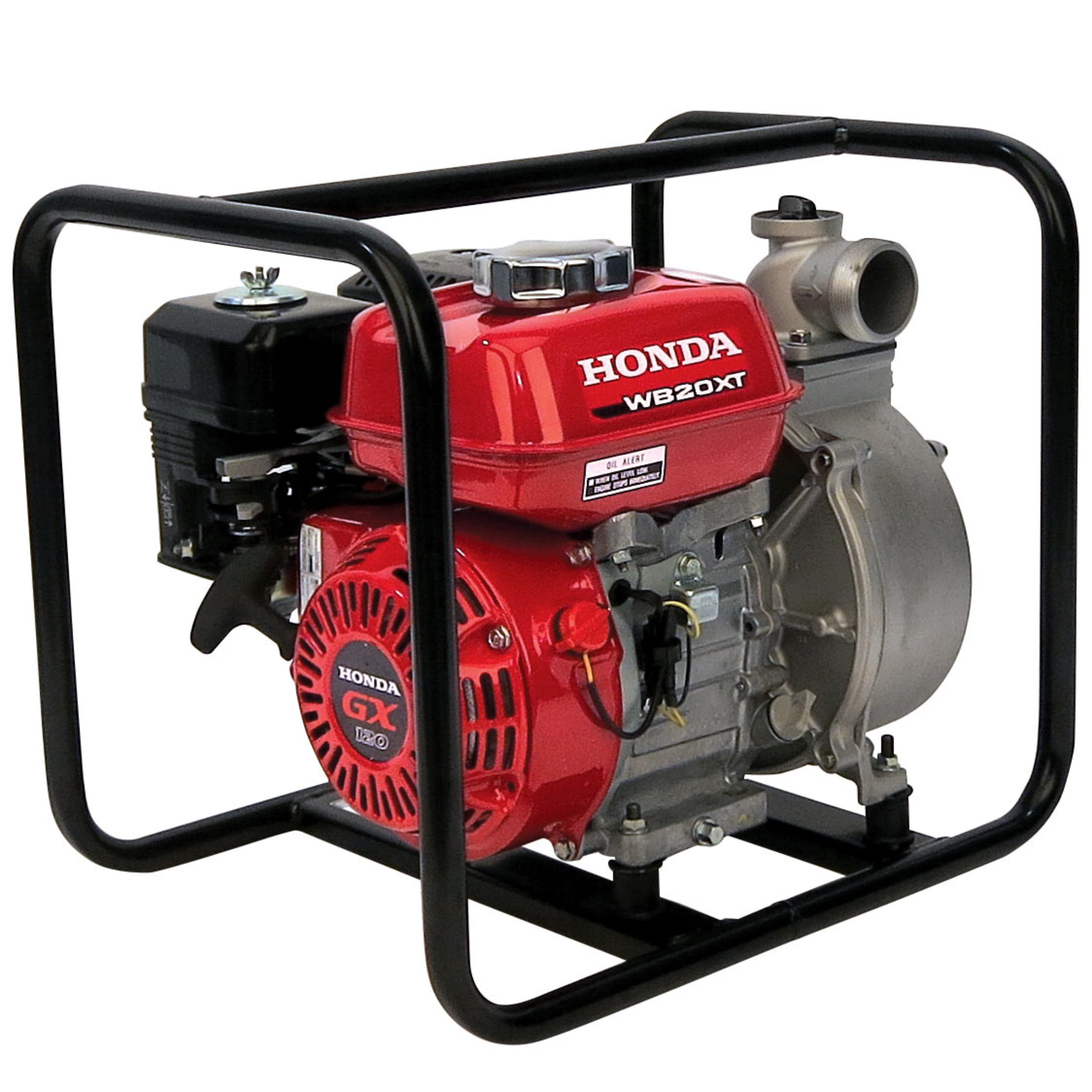

Description:

2" general purpose water pump

• 164 gal./min. capacity
• Durable silicon carbide mechanical seal
• Cast iron volute and impeller

Features:

• Engine: Easy starting Honda OHV commercial GX120 engine
• Mechanical Seal: Durable silicon carbide seals for extended wear
• Impeller: Honda-designed 4 vane high efficiency impeller
• Volute: Rigid-mount cast iron volute for reduced case wear
• Frame: Heavy duty full frame protection with tie-down capability
• Mounting: Isolation mounted engine and pump to minimize vibration
• Oil Alert: Protected by Honda Oil Alert® system
• Strainer: Large strainer allows up to 8 mm (5/16 in.) solids to pass through

Specification:

• Engine GX120
• Displacement 118cc
• Bore and stroke 2.4" x 1.7"
• Compression Ratio 8.5:1
• Oil Alert Std
• Pump Type Centrifugal, Self-priming
• Volute Rigid Mounted Cast Iron
• Impeller 4 Vane Cast Iron
• Mechanical Seal (Pump case / impeller) Silicon Carbide/Silicon Carbide
• Priming time 110 sec @ 16.4 ft.
• Drive system Direct
• Discharge capacity 164 gal/min
• Suction port diameter 2" NPT
• Discharge port diameter 2" NPT
• Total head lift 105 ft.
• Suction head lift 25 ft.
• Maximum pressure 45 psi
• Solids handling N/A
• Dimensions (LxWxH) 19.3" x 14.4" x 16.5"
• Dry weight 44 lb.
• Fuel Capacity 0.53 gal
• Run Time @ Max Discharge 1.7 hr
• Strainer Part # 78325-YG3-000
• Residential Warranty 24 months
• Commercial Warranty 12 months

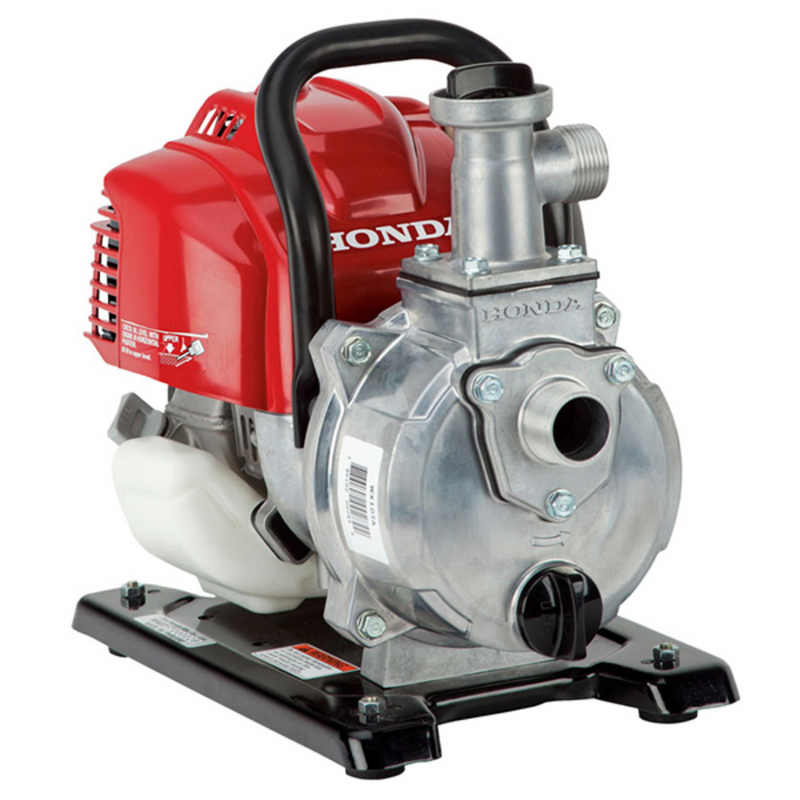

Description:

1" general purpose pump

• 32 gal./min capacity
• Weighs only 13 lbs.
• Garden hose adaptor, suction hose, clamps, and strainer included

Specifications:

• Engine: GX25, 25cc displacement, 1.4" x 1.0" bore and stroke, compression ratio 8.0:1
• Pump Type: General purpose Centrifugal Self-priming
• Volute: Aluminum
• Impeller: Aluminum
• Mechanical Seal (Pump case / impeller): Carbon/Ceramic
• Priming Time: 80 sec. at 16.4 ft.
• Drive System: Direct
• Discharge Capacity: 32 gal./min.
• Suction Port Diameter: 1.0" NPT
• Discharge Port Diameter: 1.0" NPT
• Total Head Lift: 121 ft.
• Suction Head Lift: 26 ft.
• Maximum Pressure: 52 psi
• Dimensions (LxWxH): 13.4" x 8.7" x 11.6"
• Dry Weight: 13 lbs.
• Fuel Capacity: 0.56 qt
• Run Time @ Max Discharge: 0.9 hr
• Strainer Part #: 78325-YB0-711
• Residential Warranty: 2 years
• Commercial Warranty: 1 year
