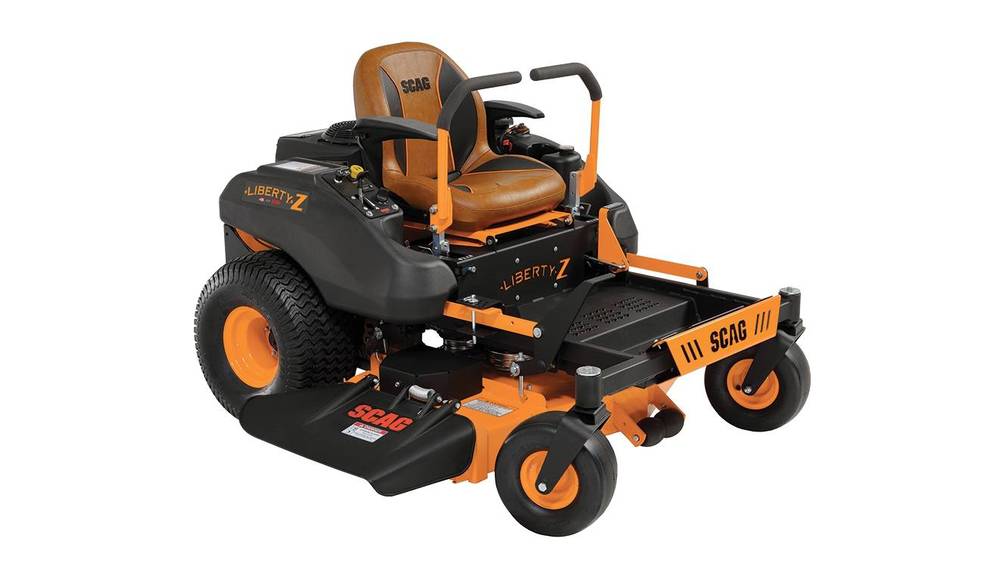

Description:

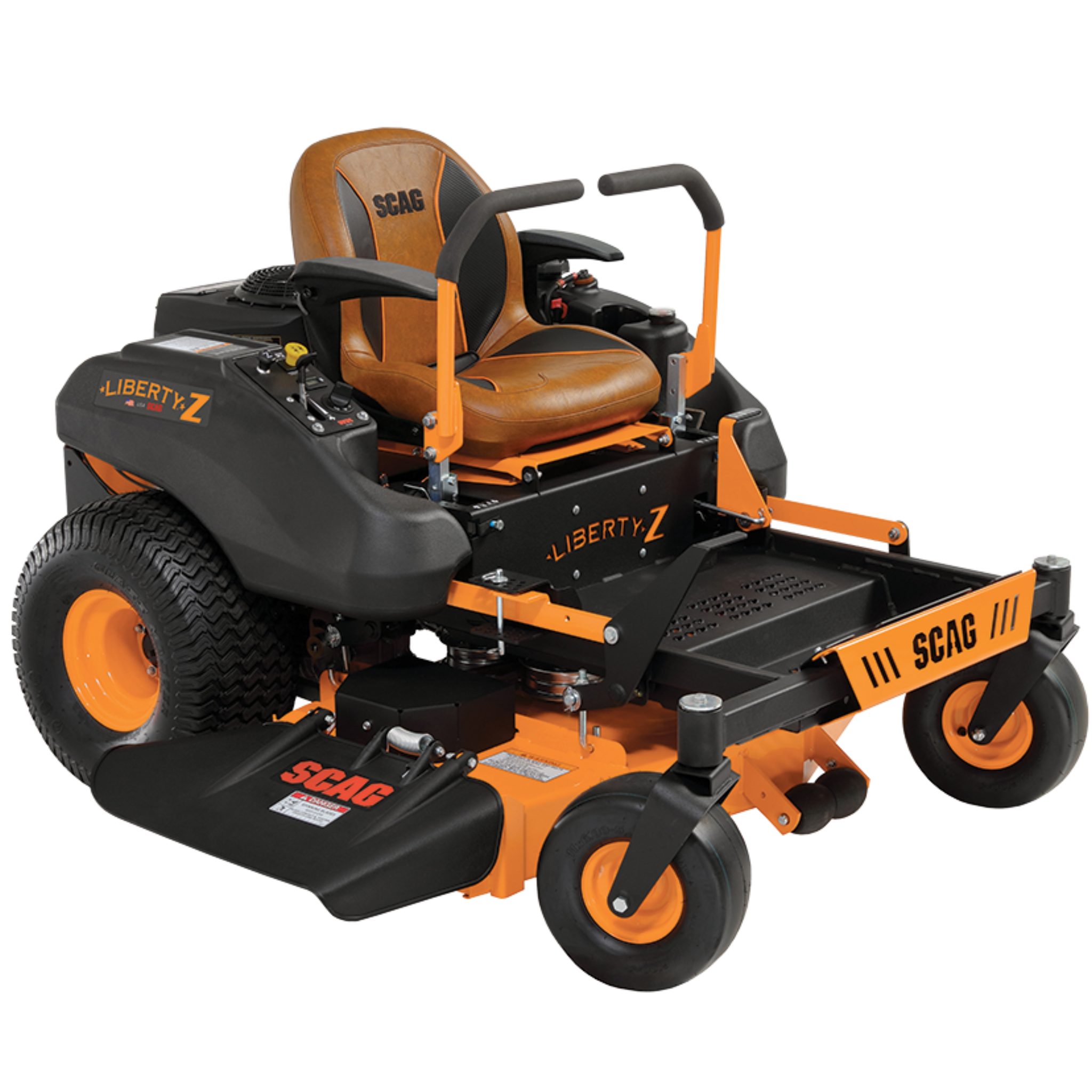

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

• Strong, Adjustable Clutch for Long Life: The Ogura GT1 PTO Clutch Brake delivers 74 ft. lb. of holding strength, ensuring excellent starting and stopping power for the cutter deck. It features an adjustable air gap for extended durability.

Deep, Fabricated, and Welded Cutter Decks

• Heavy-duty Hero Cutter Deck Design: The Liberty Z mower incorporates a deep, fabricated cutter deck that excels at handling high volumes of grass at increased speeds. The deck is designed for optimal quality-of-cut and is built to withstand rigorous use.
• Heavy-duty, Aluminum, Sealed Ball Bearing, Blade-Drive Spindles: Ensures reliable performance season after season.

High-Strength Steel Frame

• Solid Design for Years of Dependable Service: The main frame is constructed from tubular steel, providing unmatched strength and durability.

Low-Maintenance Mower Design

• More Uptime: The Liberty Z is designed with fewer grease points, enhancing operator convenience and ease-of-ownership.

Proven Transaxles

• Speeds Up to 7 MPH: Equipped with proven dual hydro transaxles (Tuff Torq TZ450, or Hydro-Gear ZT-2800 or ZT-3100 depending on the model), ensuring smooth and solid power delivery to the drive wheels.

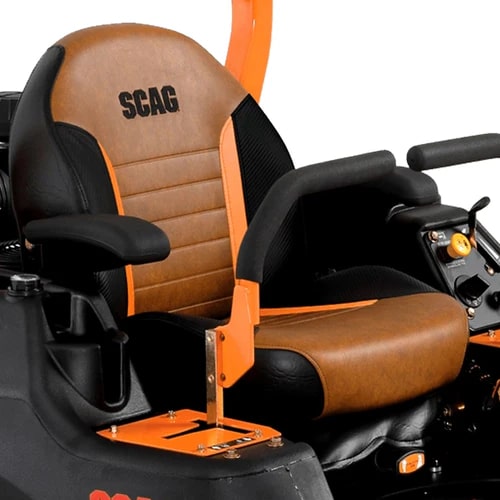

Contoured, Bolstered, High-Back Seat

• Ride in Comfort: The ultra-comfortable seat is adjustable with tools, contoured for improved comfort, and features armrests. Armrests are standard on 48″, 52″, and 61″ models, with an optional kit available for 36″ and 42″ models.

Easy Foot-Pedal Deck Lift

• Easy Up, Easy Down: The foot-pedal cutter-deck lift is spring-assisted, making raising and lowering the cutter deck smooth and effortless.

Powerful and Efficient Engine Options

• Reliable Power, Up to 27 HP: Choose from a variety of proven air-cooled V-twin engine options, providing ample power to tackle a wide range of mowing tasks effectively.

Specification:

GENERAL

• Total Fuel Capacity: 5.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with armrests, adjustment forward and back (tools required)
• DRIVE SYSTEM
• Drive System Type: Tuff Torq TZ450 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 10 cc (Tuff Torq)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• DECK
• Cutting Width: 52″
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb) – for 52″ Liberty Z
• Adjustable air-gap for extended life.

Description:

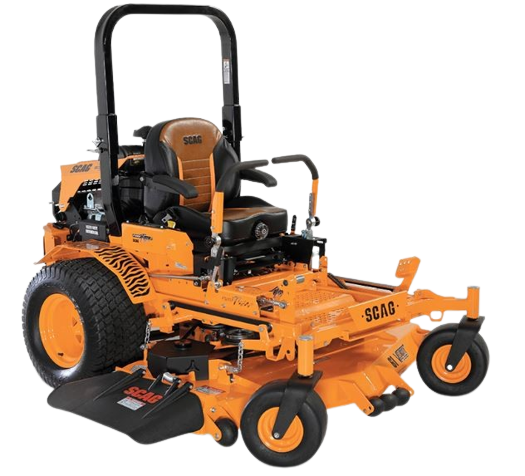

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Scag’s cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Velocity Plus™ cutter deck is an outstanding performer and delivers beautiful results.

Scag’s Velocity Plus™ Cutter Deck provides the unmatched power, precision and performance professionals’ demand. This revolutionary deck design delivers high-velocity discharge plus a beautiful, manicured cut, even at faster ground speeds. A redesigned cutting chamber and massive discharge opening provide even greater cutting performance with maximum clipping dispersal in any conditions.

Features:

• Strength — Scag’s tough cutter-blade spindles and Tri-Plate construction ensure solid performance and long life. A replaceable trim-side wear pad protects deck from damage.
• Productivity — An extra-large discharge opening, paired with the Turbo Baffle, enhances discharge for even clipping dispersal.
• Flexibility — The Velocity Plus cuts everything from fine grasses to tough weeds. The Custom-Cut™ Front Baffle System allows you to customize the deck to your individual conditions for even more productivity and higher performance.

Specifications:

• Total Fuel Capacity: 13 gallons
• Drive Tires: 24" x 12"-12"
• Caster Tires: 13" x 6.5"-6"
• Seat: 4-point iso-mounted mid-back, mounted on operator-suspension platform

DRIVE SYSTEM:

• Drive System Type: Hydro-Gear ZT5400 Transaxle, Two-Speed
• Internal Pump: 16 cc
• Internal Motor: 21 cc
• Forward Ground Speed: 16 mph (high speed), 12 mph (low speed)
• Reverse Ground Speed: 8 mph (high speed), 5 mph (low speed)
• Parking Brake: Foot-operated pedal

CUTTING DECK:

• Cutting Width: 61"
• Deck Type: Velocity Plus™
• Cutting Height: 1.25" to 5" in 0.25" increments
• Deck Lift: Adjustable foot-operated pedal
• Deck Construction: Tri-plate cutter deck constructed from 3 steel plates totaling nearly 1/2" thickness, reinforced at cutter deck spindles
• Spindles: Cast-iron housing with tapered roller bearings
• Blade Engagement: Ogura GT5 (350 ft-lb), adjustable air-gap for extended life

PRODUCT DIMENSIONS:

• Length: 85.5"
• Width (chute down): 73.5"
• Width (chute in transport position): 62.75"
• Height (ROPS Folded): 49.5"
• Height (ROPS up): 67"
• Weight: 1364-1392 lbs

Description:

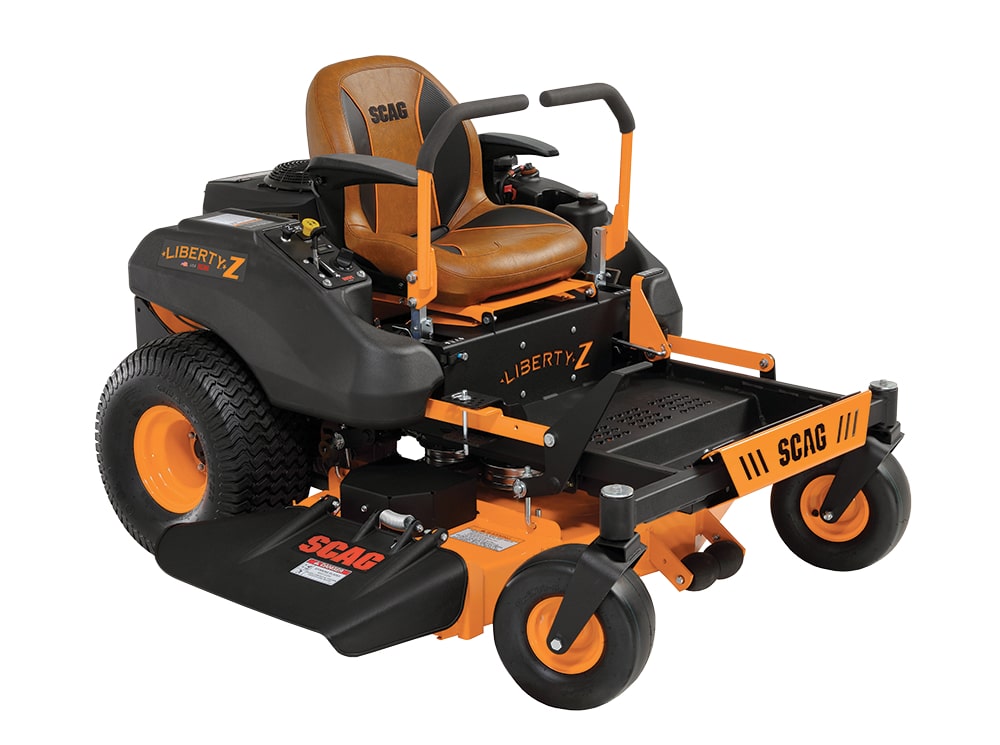

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

Other manufacturers opt for less expensive, smaller-capacity, nonadjustable, “disposable” clutches. Not Scag®. Scag PTO clutch brakes are manufactured by Ogura, the world’s best manufacturer of electromagnetic clutches, providing smooth blade engagements and fast blade stops.

All Ogura clutches feature an adjustable air gap. What does that mean to you? It means that when most clutches are worn out and must be replaced at a significant cost to YOU, the Ogura clutch can be easily adjusted to bring it back into specification (your Scag dealer can perform this adjustment).

These clutches also feature industry-leading torque values (the holding power that links the engine to the cutter-deck drive system) to ensure solid drive to the cutter deck and no slipping in heavy conditions.

Hero™ Cutter Deck

Command perfection:

Scag® cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Hero™ cutter deck is an outstanding performer and delivers beautiful results.

The Hero™ Cutter Deck provides the top line power, precision and performance professionals and homeowners demand. This extra-strong, fully fabricated and welded deck features “maintenance-free” aluminum spindles for years of worry-free performance

Strength — Scag’s tough cutter-blade spindles and Dual-Plate construction ensure solid performance and long life.

Productivity — An extra-large discharge opening enhances discharge for even clipping dispersal.

Engines

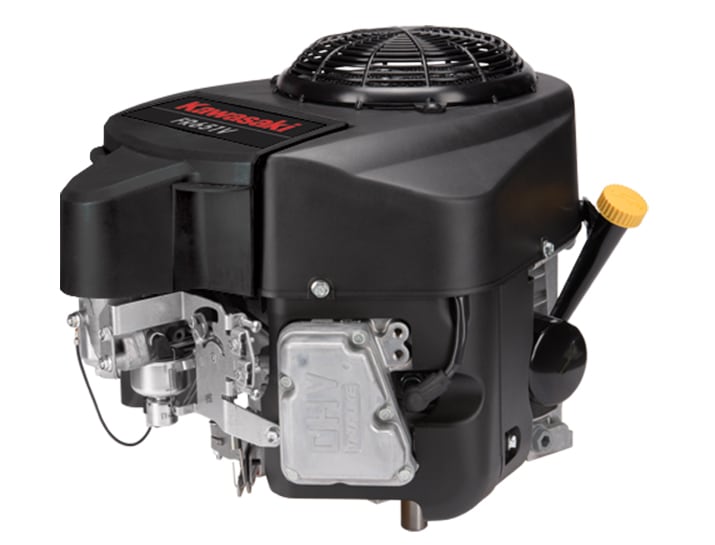

Kawasaki FR Series Engines

Residential-Grade Power:

Kawasaki® FR Series engines are compact, 90-degree, V-Twin engines that provide an ideal amount of torque and power. Operation is smooth and quiet for years of dependable homeowner operation. Other features include:

• Two-channel forced-air cooling.
• Pressurized lubrication system.
• High-energy, electronic spark ignition.
• Easy-access oil fill.
• 90-degree V-Twin design with overhead V-valve.
• Cast-iron liners.
• Automatic compression release.

Specifications:

• Model: Liberty Z 42
• Length: 68.5″
• Width (chute down): 54.5″
• Width (chute in transport position): 43″
• Height: 41″
• Weight: 595 lb
• Total Fuel Capacity: 3.5 gallons
• Drive Tires: 20″ x 10″-8″
• Caster Tires: 11″ x 4″-5″
• Seat: Optional armrest kit available
• Drive System Type: Hydro-Gear ZT-2800 Transaxle
• Internal Pump: 10 cc
• Internal Motor: 10 cc (Tuff Torq) / 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 42″
• Type: Heavy-Duty Hero Cutter Deck
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck of 2 steel plates
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb)
• Adjustable Air-Gap: For extended life

DESCRIPTION

Elevate your mowing experience with the 42" Hero Cutter Deck, driven by a robust 21 HP Kawasaki® FR651V V-twin engine. Crafted for exceptional performance and durability, this mower boasts a heavy-duty construction and an array of innovative features.

Features:

• Proven Transaxles: The ZT drive systems' dual hydro transaxles ensure smooth power delivery to the drive wheels, offering reliable performance and speeds of up to 7 MPH. For added reliability, the 48" model comes equipped with Tuff Torq transaxles.
• Deep, Fabricated, and Welded Cutter Decks: Designed for heavy-duty use, the Hero Cutter Deck guarantees an outstanding quality-of-cut, effortlessly handling large grass volumes at higher speeds.
• Ogura PTO Clutch Brake: Delivers excellent starting and stopping power for the cutter deck, featuring an adjustable air gap for prolonged lifespan.
• Easy Foot-Pedal Deck Lift: The spring-assisted foot-pedal cutter-deck lift mechanism facilitates smooth and effortless raising and lowering of the cutter deck.
• Contoured, Bolstered, High-Back Seat: Enjoy ultimate comfort during extended mowing sessions with the ultra-comfortable and adjustable seat, complete with armrests for added support.
• Low-Maintenance Mower Design: With fewer grease points, this mower offers enhanced operator convenience and ease-of-ownership, minimizing downtime.
• High-Strength Steel Frame: Built to last, the tubular-steel main frame ensures unmatched strength and longevity, guaranteeing years of dependable service.
• Powerful and Efficient Engine Options: Choose between the reliable Kawasaki® FR or Kohler® 7000 Series engines, providing up to 24 HP of dependable power.

Specifications:

• Total Fuel Capacity: 3.5 gallons (36" and 42"); 5.5 gallons (48", 52" and 61")
• Drive Tires: Various sizes depending on the model
• Caster Tires: Various sizes depending on the model
• Seat: Padded with armrests, adjustable forward and back (tools required); armrests not available on 36" and 42" models
• Drive System Type: Hydro-Gear ZT2800 Transaxle (36", 42" and 52"); Tuff Torq TZ450 Transaxle (48"); Hydro-Gear ZT3100 Transaxle (61")
• Pumps: Internal Pump: 10 cc; Motors: Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph; Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 42", 48", 52" and 61"
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates with reinforcement plate at cutter deck spindles
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb) - (36", 42", 48" and 52"); Ogura GT2 (108 ft lb) - (61"); Adjustable air-gap for extended life

Dimensions

• Length: 68.5"
• Width (chute down): 54.5"
• Width (chute in transport position): 43"
• Height: 41"
• Weight: 595 lb

Accessories:

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy
• Cutter Deck Transport Latch

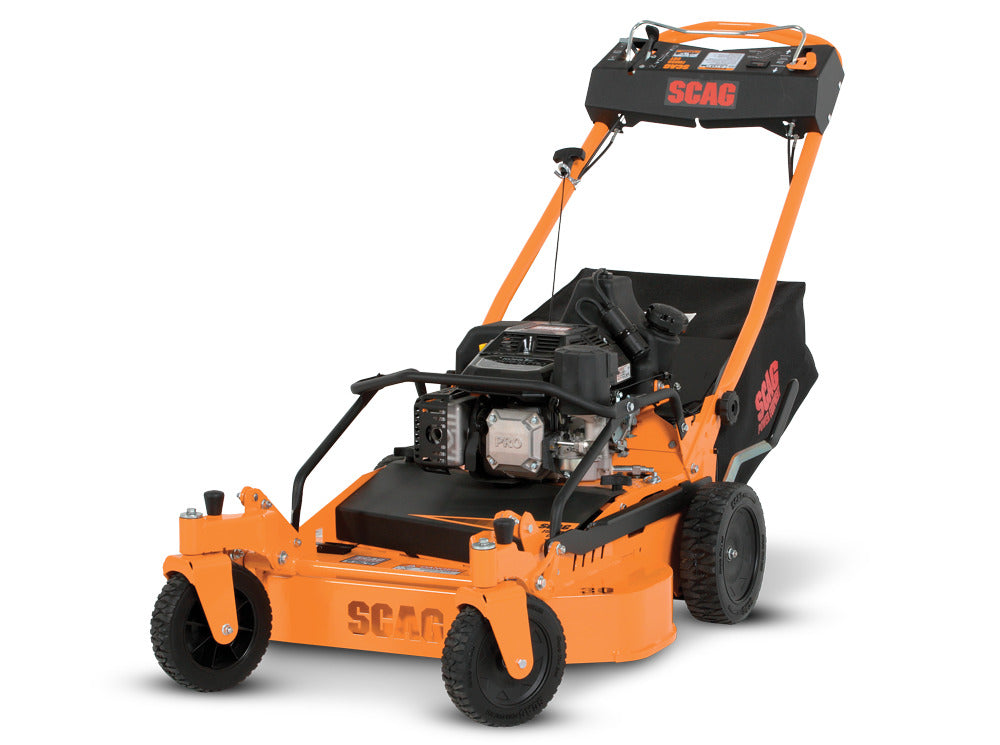

Description:

Welded and fabricated using military-grade steel for years of dependable performance, the SFC-30 Finish Cut Walk-Behind Mower is no pushover. Packing big productivity and versatility into a compact form, this commercial-grade machine delivers a beautiful, professional quality-of-cut, helping you put the finishing touches on the job or at home.

Front Swivel Caster Wheels

Front swivel caster wheel model offers increased ease of manueverability in highly landscaped areas. Swivel wheel accessory also available to convert fixed wheel models.

Engines

Kohler Command PRO CV224 Engines

With best-in-class power,* the all-new Command PRO CV224 is the ultimate engine for commercial walk-behind mowers.

Features include:

• Torque output: 11.0 ft-lbs
• 3-year limited commercial warranty
• Enjoy effortless starts thanks to our Easy-Pull™ technology
• Easy pours and less spilling with Accu-Fill® fuel tank’s 45% larger angled fuel neck
• Consistent-Cut™ technology maintains engine speed for a cleaner turf cut, even in tall, wet grass
• Cast-iron cylinder liners add durability and engine protection

Specifications:

Dimensions & Weight

• Length – Transport (handles in upright transport position): 41″ / 44″
• Length – Minimum (handles in highest operating position): 66″ / 69″
• Length – Maximum (handles in lowest operating position): 73.5″ / 76.5″
• Tracking Width: 28.75″
• Width (with discharge chute): 36.75″
• Width (with discharge block-off plate): 31.5″
• Height – Lowest Operating: 36.75″
• Height – Maximum Operating: 45.25″
• Height – Handle Bar in Storage Position: 57.5″
• Operating Weight – Bagging: 220 lbs. / 233 lbs.
• Operating Weight – Mulching: 214 lbs. / 227 lbs.
• Operating Weight – Discharging: 213 lbs. / 226 lbs.

General Specifications

• Total Fuel Capacity: 1 gallon (0.37 gallon capacity for California models)
• Rear Tires: 10.5″ x 3″ rubber tire with glass-filled polypropylene wheel
• Front Tires: 9″ x 2.25″ rubber tire with glass-filled polypropylene wheel

Drive System

• Drive System Type: GT MV 702 Transmission
• Forward Ground Speed: Up to 4 mph
• Parking Brake: Hand lever

Deck Specifications

• Cutting Width: 30″
• Deck Type: Extra-strong, fully fabricated and welded steel cutter deck with offset blade, non-timed deck setup
• Cutting Height: 1.5″ to 5″ in 0.25″ increments
• Blade Type: Optimized for maximum performance in discharging, mulching, or bagging
• Deck Lift: Hand lever, single-point adjustment
• Construction: 14-gauge, Grade 100 Military Steel deck shell with 12-gauge spindle reinforcement plate and ¼” trim side reinforcement bar for extra impact protection
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Blade brake clutch (allows disengagement of cutter blades without shutting off the machine)

Discharge, Mulch, & Bagging

• Standard Discharge, Mulch, & Bagging: Yes
• Bag Capacity: 2.5 Bushels

Description:

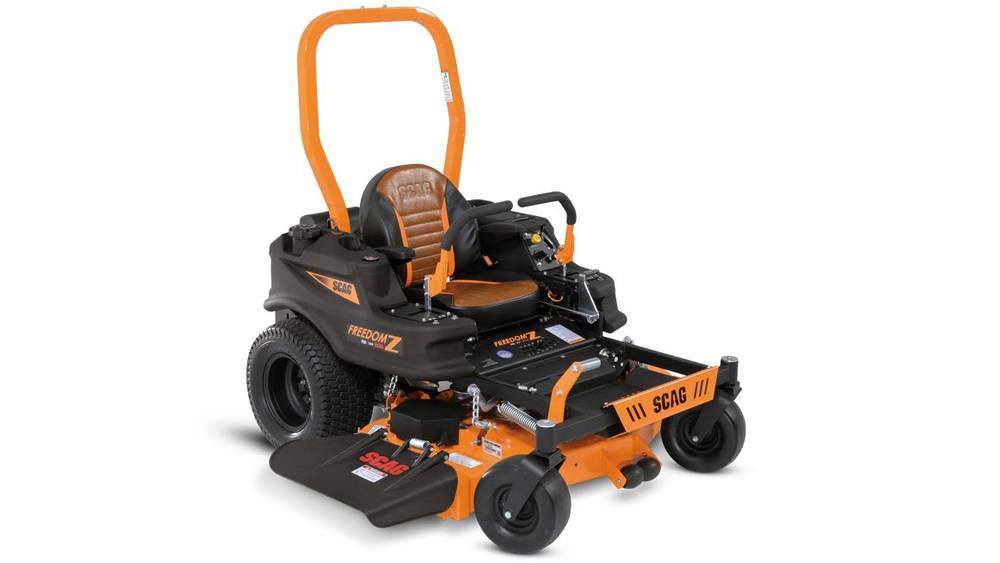

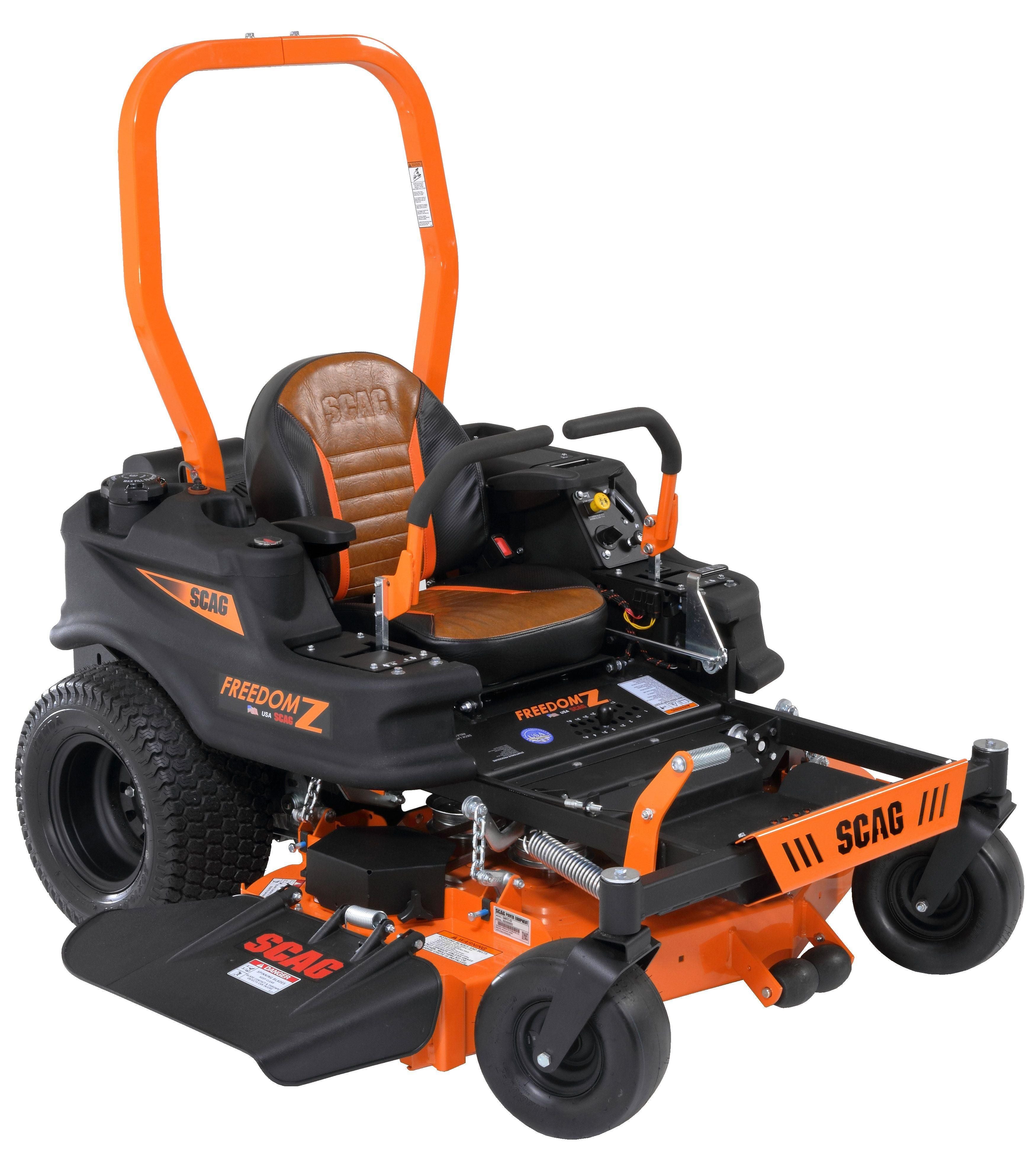

All business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.

Specifications:

GENERAL

• Total Fuel Capacity: 6.5 gallons
• Drive Tires: 20″ x 10″-10″
• Caster Tires: 11″ x 6″-5″
• Seat: Padded with arm rests, adjustment forward and back (tools required)

DRIVE SYSTEM

• Drive System Type: Hydro-Gear ZT2800 Transaxle
• Pumps: Internal Pump - 10 cc
• Motors: Internal Motor - 16 cc
• Forward Ground Speed: 8 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand-activated lever

DECK

• Cutting Widths: Available in 48″ and 52″
• Type: Hero Cutter Deck
• Cutting Height: Adjustable from 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb) Adjustable air-gap for extended life.

Product Dimensions

• 48″ Freedom Z
• Length: 73″
• Width (chute down): 60.5″
• Width (chute in transport position): 49″
• Height: 60″
• Weight: 745 lbs
• 52″ Freedom Z
• Length: 73″
• Width (chute down): 64.5″
• Width (chute in transport position): 53″
• Height: 60″
• Weight: 765 lbs

Description:

THE REAL DEAL FOR SERIOUS CHEMICAL APPLICATIONS

Looking to expand your lawn care offers? The Turf Storm XL and Turf Storm are ready to help you handle any job. With a 220-lb spreader capacity, 60-gallon sprayer capacity and an 8-ft spray boom, the Turf Storm XL can handle even the largest jobs. Conversely, the Turf Storm, with its 120-lb spreader capacity and 30-gallon sprayer capacity, is ideal for working on smaller residential properties. And, its 35.5-inch width (65-inch boom folded in) lets it fit through any standard gate. A 75-foot hose reel (Turf Storm XL) or 15-foot hose reel (Turf Storm) allows you to reach tough spaces.

Features:

Dual Liquid Tanks

• Capacity: Turf Storm XL has a 60-gallon capacity, while Turf Storm has a 30-gallon capacity.
• Measurement Indicators: Highly translucent tanks with raised indicators for accurate fill levels.
• Spray Booms: Turf Storm XL features 8-feet-wide booms with five nozzles, allowing for spraying widths of 2, 6, 8, or 10 feet. Turf Storm has a 65-inch wide spray boom, offering spraying widths of 2, 6, or 8 feet.
• Hose Reel: Turf Storm XL includes a 75-foot hose reel, while Turf Storm has a 15-foot flex hose, enabling access to tough spaces.

Spread up to 25 Feet

• Hopper Capacity: Turf Storm XL has a 220-pound dry/granular capacity, and Turf Storm has a 120-pound capacity.
• Spreader Motor: High-torque electric spreader motor facilitates up to a 25-foot spread width.

Wide Stance for Optimum Maneuverability and Stability

• Dynamically Balanced: Ensures stable footing without the need for locking front casters (Turf Storm XL only).

Ease of Use and Maintenance

• Drain Plug: Quick and efficient drain plugs at the lowest part of the tanks for easy draining and cleaning.

More Accurate Application Pattern

• Spreader Motor: High-torque electric motor reduces system heat, allowing for more precise control and accurate application.

Finger Tip Controls

• Operator Control Station: Ergonomic design with drive control lever for intuitive operation; all controls within easy reach.

Maximize Comfort

• Operator Platform: Spacious platform with extra-large comfort cushion and coil-spring suspension for a smooth ride.

23hp Vanguard Engine

• Power: 23 horsepower Briggs Vanguard® engine provides ample power, efficiency, and reliable performance.
• Charging System: 50-amp system ensures dependable operation of accessories like pumps, lights, and foam markers.

Easy Access

• Maintenance: Removable cushion and open lower area facilitate quick access to hydro drive pumps, reservoir, and mechanical components for easy servicing.

Specification:

Engine

• Engine: Briggs Vanguard™
• Horsepower: 23 hp
• Charging System: 12 Volt, 50 Amp

Fuel Capacity

• Total Fuel Capacity: 4.5 gallons

Wheels

• Front Wheel(s): 16″ x 6.5″-8″, pneumatic
• Rear Wheels: 20″ x 7″-10″, 4-ply

Currently Available Accessories

• Foamer Kit
• LED Light Kit
• 7 GPM pump

Drive System

• Drive System: Dual Pump and Motor
• Pumps: Hydro-Gear: PG Series 10 cc
• Motors: Parker TG Series: 14.5ci

Performance

• Ground Speed:
• Up to 8.5 MPH forward
• Up to 5 MPH reverse
• Parking Brake: Hand Lever

Dimensions

• Length: 65″
• Width (spray booms in): 35.5″
• Width (spray booms out): 65″
• Height: 50″

Weight

• Dry Weight: 859 lb

Warranty

• Warranty: 2-Year Commercial & Non-Commercial Warranty; 90-day Rental

Description:

It’s time for you to rise to the top of the food chain and tame turf with the Turf Tiger II™, a machine that’s tougher than any job you can throw at it. Engineered for superior durability, productivity and comfort, the Turf Tiger II gives you the edge over whatever nature throws at you while leaving you ready to take on the next challenge.61" Velocity Plus' Cutter Deck, 40 HP Briggs Vanguard' BIG BLOCK' EFI – electronic fuel injection Features may include: Velocity Plus Cutter Decks 52", 61" OR 72" CUTTING WIDTH The envy of the industry, Velocity Plus' decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing. Driveshaft-Driven Cutter Decks ANOTHER REASON THE TURF TIGER IS KING OF THE JUNGLE. A driveshaft connects the engine to the deck, eliminating the long belt drive and increasing cutting-height range. Heavy-Duty, Double-Tube Steel Main Frame SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE The Turf Tiger' is ultra-strong and built for long life. It has a wide mower stance and extra-low center of gravity for ultimate stability and a replaceable front caster-wheel weldment.

Description:

52" Velocity Plus Stand-On Lawn Mower w/ 37 hp Briggs Vanguard EFI EngineFeaturing a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

Description:

COME HOME TO THE BEST

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.

Features:

Ogura PTO Clutch Brake

• Strong and Adjustable Clutch: The Ogura GT1 PTO Clutch Brake delivers 74 ft. lb. of holding strength, with an adjustable air gap for extended longevity. It provides excellent starting and stopping power for the cutter deck.

Command Perfection

• Deep Fabricated Cutter Decks: The heavy-duty Hero Cutter Deck design ensures superior quality-of-cut. Its deep construction efficiently manages tall grass even at higher speeds, supported by heavy-duty aluminum sealed ball bearing blade-drive spindles for reliable season-to-season performance.

High-Strength Steel Frame

• Solid Construction: Built with a tubular-steel main frame for unmatched strength and durability, ensuring years of dependable service.

Low-Maintenance Design

• Increased Uptime: Fewer grease points enhance operator convenience and ease-of-ownership, reducing maintenance intervals.

Proven Transaxles

• Smooth Power Delivery: Equipped with dual hydro transaxles (Tuff Torq TZ450, Hydro-Gear ZT-2800, or ZT-3100 depending on model) for smooth and powerful performance to the drive wheels, supporting speeds up to 7 mph.

Contoured High-Back Seat

• Comfortable Operation: Features an ultra-comfortable, adjustable seat with armrests (standard on larger models, optional on smaller models) for improved comfort during extended use.

Easy Foot-Pedal Deck Lift

• Effortless Deck Adjustment: Spring-assisted foot-pedal deck lift mechanism ensures smooth and easy raising and lowering of the cutter deck.

Powerful Engine Options

• Reliable Power: Offers a variety of proven air-cooled V-twin engine options, delivering up to 27 HP to tackle tough mowing tasks efficiently.

Specification:

• Total Fuel Capacity: 3.5 gallons
• Drive Tires: 20" x 8"-10"
• Caster Tires: 11" x 4"-5"
• Seat: Optional armrest kit available (armrests not included by default)
• Drive System Type: Hydro-Gear ZT-2800 Transaxle
• Pumps: Internal Pump: 10 cc
• Motors: Internal Motor: 10 cc (Tuff Torq)
• Forward Ground Speed: 7 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Width: 36"
• Cutting Height: 1.5" to 4.5" in 0.25" increments
• Deck Lift: Foot-operated pedal
• Deck Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
• Spindles: Aluminum housing with sealed ball bearings.
• Blade Engagement: Ogura GT1 (74 ft lb) – adjustable air-gap for extended life
• Product Dimensions:
• Length: 68.5"
• Width (chute down): 48.5"
• Width (chute in transport position): 37"
• Height: 40"
• Engine: 18 HP Kawasaki® FR600V – V-Twin, air-cooled engine, 603 cc displacement
• Weight: 555 lb

Description:

The power of a tiger with the swiftness of a cat, the nimble Tiger Cat® II combines the best of both worlds. Making full use of its compact footprint and robust engine, this easily adjustable and extremely durable machine gets into, around and out of tight spaces quickly—putting you on the path toward increased profitability.

61" Cutting Width

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

Engine

The Briggs & Stratton® Vanguard® BIG BLOCK™ engine found on select Scag® mower models is a proven performer with power and reliability. Features include:

• V-Twin OHV technology.
• Dura-Bore cast-iron cylinder sleeve.
• Full-pressure lubrication with spin-on oil filter.
• Oil cooler.
• Advanced debris management.
• Centrally located oil pump and pickup.
• Heavy-duty cylinder and sump.
• High-efficiency head design.
• Dynamically balanced crankshaft.
• Industrial-grade solenoid shift starter.

Specification:

Product Dimensions (61″ Tiger Cat):

• Length: 80″
• Width (chute down): 73.5″
• Width (chute in transport position): 62.75″
• Height (ROPS folded): 46.75″
• Height (ROPS up): 67.25″
• Weight: 1,257–1,277 lb

General:

• Total Fuel Capacity: 9.5 gallons
• Drive Tires: 24″ x 12″-12″
• Caster Tires: 13″ x 6.5″-6″, flat-free
• Seat: 4-point iso-mounted mid-back seat on operator-suspension platform

Drive System:

• Type: Dual Pump and Motor
• Pumps: Hydro-Gear 12 cc
• Motors: Parker 14.5 ci
• Forward Ground Speed: 12 mph
• Reverse Ground Speed: 5 mph
• Parking Brake: Foot-operated pedal

Deck:

• Cutting Width: 61″
• Type: Velocity Plus™
• Cutting Height: 1″ to 5″ (adjustable in 0.25″ increments)
• Deck Lift: Adjustable foot-operated pedal
• Construction: Tri-plate cutter deck made of 3 steel plates totaling nearly 1/2″ thick, with reinforcement plates at cutter deck spindles
• Spindles: Cast-iron housing with tapered roller bearings.

Description:

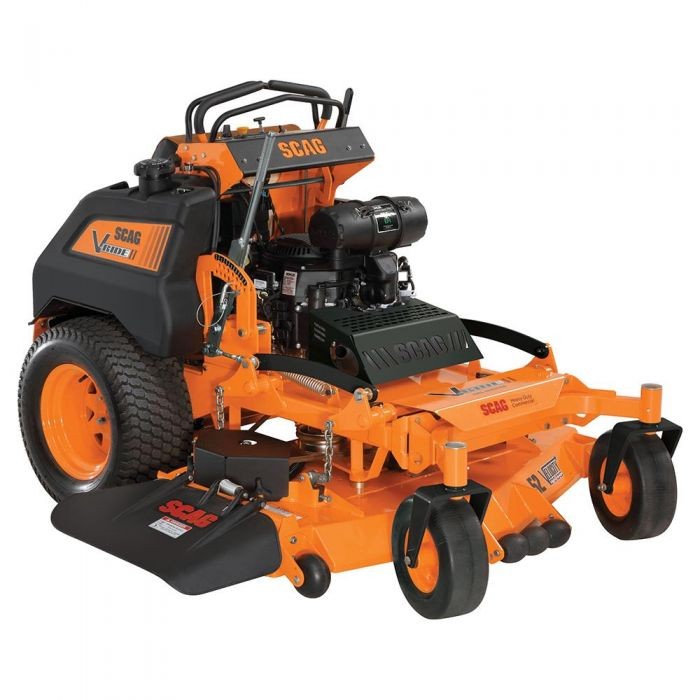

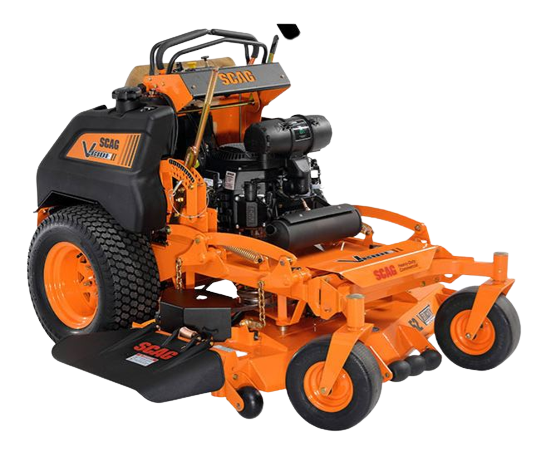

Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.

48", 52" or 61" Cutting Width

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48″, 52″ and 61″ widths. An Advantage Cutter Deck is featured on 32″ and 36″ widths

Scag® cutter decks have always given our competition a serious case of deck envy. Many try to duplicate the performance, but none can match it. The Velocity Plus™ cutter deck is an outstanding performer and delivers beautiful results.

The Velocity Plus™ Cutter Deck provides the unmatched power, precision and performance professionals demand. This revolutionary deck design delivers high-velocity discharge plus a beautiful manicured cut, even at faster ground speeds. A redesigned cutting chamber and massive discharge opening provide even greater cutting performance with maximum clipping dispersal in any conditions.

Strength — Scag’s tough cutter-blade spindles and Tri-Plate construction ensure solid performance and long life. A replaceable trim-side wear pad protects deck from damage.

Productivity — An extra-large discharge opening, paired with the Turbo Baffle, enhances discharge for even clipping dispersal.

Flexibility — The Velocity Plus cuts everything from fine grasses to tough weeds. The Custom-Cut™ Front Baffle System allows you to customize the deck to your individual conditions for even more productivity and higher performance.

Engines:

Kawasaki FT Series Engines

Commercial-Grade Power

The new Kawasaki® FT Series engines with patented Vortical air filtration blaze new trails.

Kawasaki® FT Series engines are designed and built to handle heavy loads. The Vortical air filtration system muscles out grass and debris while large, easy-to-access integrated clean-out ports amp up your efficiency and keep you cutting.

Other features include:

• 90° V-twin
• High-efficiency, centrifugal air intake system
• Dual-element air filtration with reinforced filter
• Large, easy-to-access integrated clean-out ports
• Pressurized lubrication system
• Electronic spark ignition
• Automatic compression release
• Internally vented carburetor with fuel shut-off solenoid
• Cast-iron cylinder liners

Specification:

• Specification - V-Ride II
• General:
• Total Fuel Capacity:
• 5 gallons (32″)
• 6.75 gallons (36″)
• 8 gallons (48″, 52″, and 61″)
• Drive Tires:
• 20″ x 6.5″-10″ (32″)
• 20″ x 8″-10″ (36″)
• 24″ x 9.5″-12″ (48″ and 52″)
• 24″ x 12″-12″ (61″)
• Caster Tires:
• 11″ x 4″-5″ (32″ and 36″)
• 13″ x 5″-6″ (48″ and 52″)
• 13″ x 6.5″-6″ (61″)
• Seat: Extra-large comfort cushion
• Drive System:
• Drive System Type: Dual Pump and Motor
• Pumps:
• Hydro-Gear 10 cc (32″ and 36″)
• Hydro-Gear 12 cc (48″, 52″, and 61″)
• Motors:
• Parker 12 ci (32″ and 36″)
• Parker 14 ci (48″, 52″ and 61″)
• Forward Ground Speed:
• 8.5 mph (32″ and 36″)
• 10.5 mph (48″, 52″ and 61″)
• Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Deck:
• Cutting Widths: 32″, 36″, 48″, 52″, and 61″
• Type:
• Advantage (32″ and 36″)
• Velocity Plus™ (48″, 52″, and 61″)
• Cutting Height: 1.5″ to 4.5″ in .25″ increments
• Deck Lift: Hand lever
• Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. 32″ model features dual-plate.
• Spindles: Cast-iron housing with tapered roller bearings.
• Blade Engagement:
• Ogura GT2.5 (150 ft lb) – (32″, 36″, 48″, and 52″)
• Ogura GT3.5 (250 ft lb) – (61″)
• Adjustable air-gap for extended life.
• Length: 69.5″
• Tracking Width: 48″
• Width (Chute Down): 65.25″
• Width (Chute in Transport Position): 53.75″
• Height: 47.25″
• Weight: 1,000-1,022 lb

Description:

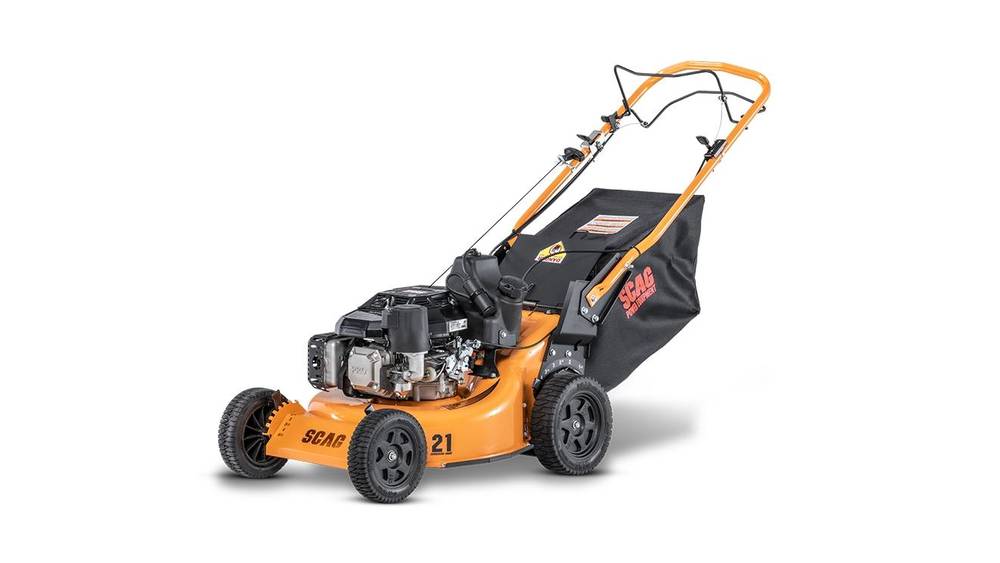

The Scag® SFC-21 Finish-Cut Walk-Behind mower is the compact solution you've been searching for, offering impressive productivity and versatility within its 21" wide platform. Whether you're on the job or tending to your own lawn, the SFC-21 ensures professional-quality results with each pass, leaving behind a beautifully manicured lawn.

Equipped with 3-in-1 versatility, including mulching, bagging, and optional side discharge capabilities, this mower empowers you to handle various challenges with ease while achieving exceptional results.

Features:

Fine-Tuned and Simple:

• Easy height-of-cut adjustment: Allows for cutting heights ranging from 1.5" to 4.5" in 0.5" increments, providing flexibility to adapt to different grass lengths and preferences.

Description:

The Scag® SFC-21 Finish-Cut Walk-Behind mower is the compact machine you’ve always wanted—packing big productivity and versatility into a 21” wide platform. On the job or at home, the SFC-21 delivers a professional quality-of-cut that leaves behind a beautiful lawn, each and every time. Capable of 3-in-1 versatility (mulching, bagging and optional side discharging), it helps you tackle whatever challenges come your way with top-notch results.

Specifications:

• Engine: 7HP @ 3300 RPM, 4 cycle gas, OHV, air-cooled, single-cylinder, vertical shaft
• Transmission: GT MG 512 transmission, 3-speed
• Wheels/Tires: Drive: 10.5 x 3 / Front: 9 x 2.25
• Handle Bars: 1″ diameter, thick wall tubing, 3-position adjustable
• Safety Group: Handle actuated operator presence system
• Forward Speed: Up to 4.25 mph
• Cutting Width: 21 inches (53.34 cm)
• Cutting Height Adjustment: 1.5″ to 4.5″ in 0.5″ increments
• Cutter Blade: 0.1345 in. thick, milled edge, wear resistant

Description:

The Scag Turf Tiger II isn't just a mower, it's a statement of dominance. This zero-turn mower is designed for professional landscapers who need a machine that can handle anything nature throws at them.

Engineered to Conquer:

• Unmatched Durability: The Tri-Plate deck construction with a nearly half-inch thick steel top ensures the Turf Tiger II can withstand years of heavy use.
• Superior Productivity: Powerful Hydro-Gear drive systems and large cutting widths (52", 61", or 72") allow you to cover more ground in less time.
• Operator Comfort: The 4-point iso-mounted torsion-spring suspension seat keeps you comfortable throughout the workday.

Built to Last and Built to Perform:

• Engine Options: Choose from a variety of engine options, including gas, diesel, and LP, to find the perfect fit for your needs.
• Unmatched Cut Quality: The Velocity Plus™ Deck with a special front baffle chamber delivers a clean, professional cut, even at high mowing speeds.
• Easy Maintenance: Features like replaceable wear pads and easy-to-access grease points simplify maintenance.

Power and Control at Your Fingertips:

• Dual Pump and Motor Drive System: Delivers smooth operation and precise control for effortless maneuvering around obstacles.
• Adjustable Foot-operated Pedal Parking Brake with AUSCO Disc Brakes: Provides confident stopping power on any terrain.

The Scag Turf Tiger II is the ultimate zero-turn mower for professional landscapers who demand the best. It's a powerful, durable, and comfortable machine that will help you conquer even the toughest jobs and leave your competition in the dust.
