DESCRIPTION

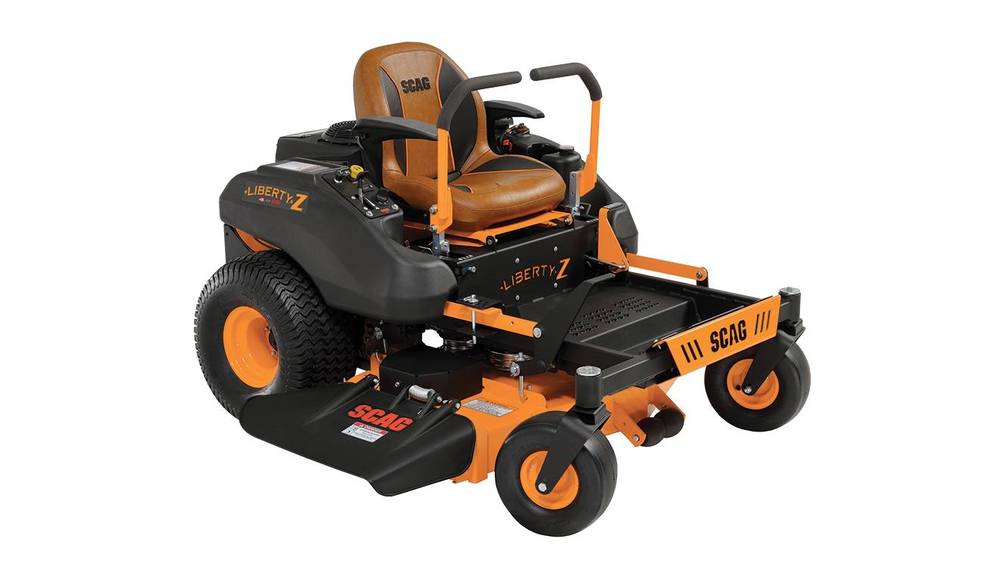

Elevate your mowing experience with the 42" Hero Cutter Deck, driven by a robust 21 HP Kawasaki® FR651V V-twin engine. Crafted for exceptional performance and durability, this mower boasts a heavy-duty construction and an array of innovative features.

Features:

• Proven Transaxles: The ZT drive systems' dual hydro transaxles ensure smooth power delivery to the drive wheels, offering reliable performance and speeds of up to 7 MPH. For added reliability, the 48" model comes equipped with Tuff Torq transaxles.
• Deep, Fabricated, and Welded Cutter Decks: Designed for heavy-duty use, the Hero Cutter Deck guarantees an outstanding quality-of-cut, effortlessly handling large grass volumes at higher speeds.
• Ogura PTO Clutch Brake: Delivers excellent starting and stopping power for the cutter deck, featuring an adjustable air gap for prolonged lifespan.
• Easy Foot-Pedal Deck Lift: The spring-assisted foot-pedal cutter-deck lift mechanism facilitates smooth and effortless raising and lowering of the cutter deck.
• Contoured, Bolstered, High-Back Seat: Enjoy ultimate comfort during extended mowing sessions with the ultra-comfortable and adjustable seat, complete with armrests for added support.
• Low-Maintenance Mower Design: With fewer grease points, this mower offers enhanced operator convenience and ease-of-ownership, minimizing downtime.
• High-Strength Steel Frame: Built to last, the tubular-steel main frame ensures unmatched strength and longevity, guaranteeing years of dependable service.
• Powerful and Efficient Engine Options: Choose between the reliable Kawasaki® FR or Kohler® 7000 Series engines, providing up to 24 HP of dependable power.

Specifications:

• Total Fuel Capacity: 3.5 gallons (36" and 42"); 5.5 gallons (48", 52" and 61")
• Drive Tires: Various sizes depending on the model
• Caster Tires: Various sizes depending on the model
• Seat: Padded with armrests, adjustable forward and back (tools required); armrests not available on 36" and 42" models
• Drive System Type: Hydro-Gear ZT2800 Transaxle (36", 42" and 52"); Tuff Torq TZ450 Transaxle (48"); Hydro-Gear ZT3100 Transaxle (61")
• Pumps: Internal Pump: 10 cc; Motors: Internal Motor: 10cc (Tuff Torq), 16 cc (Hydro-Gear)
• Forward Ground Speed: 7 mph; Reverse Ground Speed: 5 mph
• Parking Brake: Hand lever
• Cutting Widths: 36", 42", 48", 52" and 61"
• Cutting Height: 1.5" to 4.5" in .25" increments
• Deck Lift: Foot-operated pedal
• Construction: Dual-plate cutter deck constructed of 2 steel plates with reinforcement plate at cutter deck spindles
• Spindles: Aluminum housing with sealed ball bearings
• Blade Engagement: Ogura GT1 (74 ft lb) - (36", 42", 48" and 52"); Ogura GT2 (108 ft lb) - (61"); Adjustable air-gap for extended life

Dimensions

• Length: 68.5"
• Width (chute down): 54.5"
• Width (chute in transport position): 43"
• Height: 41"
• Weight: 595 lb

Accessories:

• 2-Bag Grass Catcher
• Fabric Bag Grass Catcher
• Hurricane Mulch System
• Mulch Plate
• Tiger Stripe Kit
• Light Kit
• Trailer Hitch
• Chrome Wheel Covers
• Blade Buddy
• Cutter Deck Transport Latch
